Camera Drivers Sony Ericsson for Series W/K/Z/VGA

Posted by drvodka

On 2008-01-18 20:05:43, brazuka wrote:
drvodka

I've made a mistake upload driver the wrong k510 without being updated, now the driver this updated but without the properties of 29 fps and the initial frequency of cam original 48mhz, the test driver because this almost to the original only that the different properties gamma / luma / supercolor / exposure

Fix driver last k510_180107

Download
Last version 180107 first 1# post k510
http://www.esato.com/board/viewtopic.php?topic=159467&start=75

[ This Message was edited by: brazuka on 2008-01-18 19:16 ]

Sorry to dissapoint you, but this driver has the green screen problem.

Posted by brazzuka's

On 2008-01-18 22:41:16, drvodka wrote:

Sorry to dissapoint you, but this driver has the green screen problem.

------------------------------------------------------------------------------------------------

but screen green when video recording ? or take photos too appear screen green

Forgot the initial sequence of the line, you may see that I do not know now if we will not start with the original driver of the k510

added sequence initial

test again

[ This Message was edited by: brazuka on 2008-01-18 22:23 ]

Posted by drvodka

but screen green when video recording ? or take photos too appear screen green

Forgot the initial sequence of the line, you may see that I do not know now if we will not start with the original driver of the k510

added sequence initial

test again

[ This Message was edited by: brazuka on 2008-01-18 22:23 ]

This new driver still has the green screen, when you take pictures, and when you record video.

It doesn't let me take pictures, but I can record video, see how it records:

http://rapidshare.com/files/84913461/MOV00003.3gp.html

Honestly, I think you should work on this driver

http://rapidshare.com/files/84820971/camdriver0.dat55.html

and improve the grayish pictures first, then try adding more features later...

Posted by brazzuka's
drvodka

Ok we will try to work with this driver so we can achieve some improvement for this driver, the properties that were changed as I comment and describe here, we will first increase the property gamma and increase slightly the exposure it at the auto mode, so we we really know what has changed.

-change gama property
-change exposure auto mode
-add lumma property

---------------------------------------------------------------------

Changes: based in driver v5.5 with graywish pics
-New White Balance RGB
-New Sequence Gamma with more properties gamma
-New Sequence Exposure only in mode auto
-Add Luma property

Last driver:v5.5_Beta190108
Download:
http://www.esato.com/board/viewtopic.php?topic=159467&start=75

[ This Message was edited by: brazuka on 2008-01-19 11:39 ]

Posted by drvodka

Changes: based in driver v5.5 with graywish pics
-New White Balance RGB
-New Sequence Gamma with more properties gamma
-New Sequence Exposure only in mode auto
-Add Luma property

Last driver:v5.5_Beta190108
Download:
http://www.esato.com/board/viewtopic.php?topic=159467&start=75

Well, this driver is crazy

Look at both pictures AND video:

http://img252.imageshack.us/img252/2084/dsc00030ex7.jpg
http://img252.imageshack.us/img252/9141/dsc00031zd5.jpg
http://rapidshare.com/files/85029475/colores_locos.3gp.html

One thing I noticed, when I take a picture in direct sunlight, the camera hangs and closes. When I try to record video in direct sunlight, the camera doesn't record the video! Only the sound.

Posted by brazzuka's

On 2008-01-19 16:11:43, drvodka wrote:

Well, this driver is crazy

-------------------------------------------------------------------------------------------------
We Come back with the properties camdriver original white balance and exposure

-White Balance cam driver original
-New Sequence Gamma with more properties gamma
-Exposure camdriver orignal and effects too
-Add Luma property

we come back white balance camdriver original and exposure and effects cam driver original

[ This Message was edited by: brazuka on 2008-01-19 19:58 ]

Posted by brazzuka's
w200 scenes

Scenes support w200:
-Auto Mode
-Landscape Mode
-Fly Clarity Super Color� Mode
-Clear sky Mode
-Portrait Mode

Photos:high ligth-luminosity natural ambient

-Auto Mode

-Landscape Mode

-Fly Clarity Super Color� Mode

-Clear sky Mode

-Portrait Mode

_________________
brazukas.wordpress.com
picasaweb.google.com/brazzukas
brazzukas.4shared.com

[ This Message was edited by: brazuka on 2008-01-19 19:57 ]

Posted by killerPK
@Brazukas
I found this in W200 Camdriver 7.5 final :

Line 397:
$cx$cx$cx$cx$cx$cx$cx$cx$cx$cx$

Line 424:
$cx$cx$cx$cx$cx$cx$cx$cx$cx$cx$

I think the last $ sign in both lines must be removed?

Posted by brazzuka's
Sony Ericsson CamDriver Version v6.0 by BrAzUkA�s for w300
Version v6.0 BrAzUkA�s
Optimized for the Sony Ericsson W300 ** Works w300 **

Features v6.0 BrAzUkA�s w300:

Video recording:
High Quality=15fps to 20fps
Low Quality=20fps to 30fps
Normal Mode� Dayligth=15fps
Nigth Mode�=20fps
Normal 15fps, Night 10fps to 20fps, EnhancedNight 5fps
Normal mode has same Zoom
Normal mode with Macro quality
EnhancedNight� mode has Auto Focus Not valid for w300 MT9V112

Added properties:
New Power sequence� on/off with new Master Clock� for w300
Automatic mode
Night Mode� Adjust (Button 2 Two Keyboard)
Color Correction�
Hue Mode
JPEG buffer 1280x960 BrAzUkA�s Snapshot� interpol 1,2MB Mode Expanded
Saturation Stable
EnhancedNight� Video
More Reduction Noise
Spot Mode ON (Brightness base of the center) Adjust(+/-)Volume
SuperColor� Scene Fly Clarity Super Color� Mode
LiveColours�
Shutter speed�
New Zoom property
New Sequence Gama
Master Clock� for w300
Brightness adjust EV plus daylight and night to change value Adjust(+/-)Volume
New White Balance Types and properties of luminosity
Effects-Scenes� Support w300 Adjust (Button 3 Three Keyboard)
Scenes support w300:
-Auto Mode
-Landscape Mode
-Fly Clarity Super Color� Mode
-Clear sky Mode
-Portrait Mode
Incredible Photo metering
More Sharpening and stable
Contrast stable
Auto Framerate Flash
Max Manual Exposure� Sometimes Restart the camera for a new reading of exposure

Last Version: v6.0
Download:
http://www.4shared.com/file/35369403/67919bd3/v60_BrAzUkAs.html

[ This Message was edited by: brazuka on 2008-02-13 13:18 ]

Posted by brazzuka's
Micron Mobile Phone

Micron MT9M112 CMOS image sensor for mobile phone

Micron MT9M112 CMOS image sensor for mobile phone : Micron Technology, a worldwide provider of advanced memory and image sensor solutions, today announced sample availability of a one-quarter inch optical format, 1.3 megapixel complementary metal oxide semiconductor (CMOS) image sensor, known as MT9M112. Most one-quarter inch based camera-phone handsets on the market today are used with VGA resolution. The new MT9M112 enables 1.3 megapixel SXGA cameras in the same optical format and module form factor, maintaining superior image quality at a much higher resolution. As with all Micron CMOS image sensors, the MT9M112 is equipped with Micron's proprietary low-noise, high-sensitivity DigitalClarity technology.

New Micron CMOS image sensor
The Micron MT9M112 delivers brilliant color images even under some of the poorest lighting conditions. The MT9M112 is a fully integrated system-on-chip (SoC) sensor, incorporating additional logic on the device that simplifies the camera module design, related manufacturing processes, system integration, power management, and component count. The MT9M112 is capable of 15 frames-per-second (fps) at full resolution and 30 fps in preview mode. It has a pixel size of 2.8 micron square and contains 1,280 horizontal by 1,024 vertical active pixels (standard SXGA format). Samples for this device are available now and production will commence in December of 2005.

Small sensor, but with optimal image quality
"As the form factor for mobile handsets continues to reduce in size, it is imperative for the sensor to follow suit while maintaining optimal image quality," said Hisayuki Suzuki, senior director of marketing for the Micron Imaging Group. "Yet again, with our newest sensor introduction, we are continuing to advance our comprehensive portfolio of image sensor solutions, providing customers with the high image quality they have come to expect."

Micron MT9M112 image sensor - Features
Advanced image processing features are designed directly into the MT9M112 including three channel gamma correction, lens shading correction, and color correction. Automatic features include on-the-fly auto defect correction, auto exposure, auto white balance, auto black reference, auto flicker avoidance, and auto color saturation. The camera control sequencer automates the camera's flash and video clip snapshots. Additional features include 2 by 2 pixel binning, programmable input/output slew rate, mechanical shutter support, and continuous, smooth zoom and pan, as well as day and night mode configurations.

The 1.3 megapixel sensor provides a complete SoC solution
"We are making the device extremely attractive to designers by providing a complete SoC solution," said Farhad Rostamian, director of marketing for wireless and mobile with the Micron Imaging Group. "The one-quarter inch 1.3 megapixel sensor encompasses the necessary imaging and digital signal processing technology all on one chip, requiring fewer parts and ultimately reducing design costs. Additionally, this device enables mobile phone manufacturers to simply upgrade their existing one-quarter inch VGA cameras to one-quarter inch megapixel cameras occupying the same height and footprint."

Micron image sensor with DigitalClarity technology
Micron's CMOS image sensor portfolio offers designers of virtually every image-capture application the flexibility, speed, resolution, feature set, and innovative thinking to develop high-quality products. With its DigitalClarity technology at the foundation of every sensor, Micron is providing manufacturers with best-in-class image quality. Micron's portfolio of CMOS image sensors are used in a variety of applications that span the mobile, consumer, medical, automotive, commercial, industrial and high-speed markets.

About Micron
Micron Technology, Inc., is one of the world's leading providers of advanced semiconductor solutions. Through its worldwide operations, Micron manufactures and markets DRAMs, NAND Flash memory, CMOS image sensors, other semiconductor components, and memory modules for use in leading-edge computing, consumer, networking, and mobile products.

Micron - 2 new smaller VGA CMOS sensors available

Micron announced availability of the MT9V012 low power stand alone sensor and MT9V112 SOC VGA sensor which are being delivered to handset manufacturers throughout Asia, Europe and the US. The sensors demonstrate Micron's ability to shrink the form factor of image sensors while maintaining leadership in image quality and low cost supplier position. The sensors are designed for the low cost and small size camera modules suitable for low and mid-tier mobile handset models, as well as dual-mode cameras, high end and 3G Smartphone models. "Our commitment to quality is apparent in our new 1/6-inch VGA sensors' capability to capture crisp, sharp images even under poor lighting conditions," commented Micron's Director of Marketing Farhad Rostamian.
"Micron is committed to offering our customers quality products in a variety that will meet their every need. When added to Micron's existing portfolio of CMOS image sensors serving the mobile, DSC and emerging markets, these two VGA sensors further strengthen our leadership position in the imaging industry. We stand behind all of our products as the best-in-class, achieving superior performance levels, and we're committed to delivering sensors that will provide not just convenience, quality, and economy, but also an overall superior user experience."

The MT9V112 SOC sensor measures just 4mm diagonally. It is a complete camera on a chip with a data rate of 13.5 megapixels per second, and a master clock of 27 MHz. It requires only a power supply, lens, and clock source for basic operation. Its on-chip capabilities include an advanced image flow processor which performs: auto exposure, white balance, horizontal blanking, vertical blanking, color recovery and correction, sharpening, programmable gamma correction, on the fly defect identification and correction, zoom, windowing, and numerous other automatic functions. All functions are programmable through a two-wire serial interface. The MT9V112 is targeted primarily at cell phones, but is also appropriate for dual-mode camera applications, PDAs, toys and other battery-powered products.

Micron's MT9V012 is a stand alone 1/6-inch image sensor also offering advanced integrated technology. The sensor operates at ultra-low power for VGA resolution to capture high-quality progressive-scan video, limiting the drain on battery-powered cell phones.

Micron demonstrated 1.7 micron pixel image sensor : Micron Technology, Inc., today publicly demonstrated functionality of the industry�s first 1.7-micron (�m) pixel image sensor at Imaging Sensor 2005, a technical symposium organized by Nikkei Electronics in Tokyo, Japan. As with all Micron image sensors, the 1.7 micron pixel sensor incorporates DigitalClarity technology, differentiating Micron�s image sensors from competitors� products by providing superior low light performance, color fidelity, dynamic range, high temperature performance and high frame rates. These key performance features deliver image quality benefits to customers across platforms, especially those customers targeting low light and high speed usage conditions.

Micron 1.7 �m pixel image sensor
�Today�s demonstration of 1.7 micron pixel technology validates Micron�s ability to deliver leading imaging technology and products,� said Hisayuki Suzuki, Micron�s Senior Director of Marketing for Imaging. �Shrinking pixel size enables mobile and consumer applications with higher resolution and smaller form factors resulting in an enhanced picture taking experience. Additionally, smaller pixel size facilitates increased features in other target applications, such as medical, biometrics and high-speed.�

About Micron
Micron Technology, Inc., is one of the world's leading providers of advanced semiconductor solutions. Through its worldwide operations, Micron manufactures and markets DRAMs, Flash memory, CMOS image sensors, other semiconductor components and memory modules for use in leading-edge computing, consumer, networking, and mobile products. Micron's common stock is traded on the New York Stock Exchange under the MU symbol.

Micron ships 8Gb and 4Gb NAND flash memory : Micron announced it is shipping 8 gigabit (Gb) and 4Gb qualified NAND Flash memory products. Micron�s high-density 8Gb and 4Gb NAND devices use a 3.3V power supply and are packaged in a standard 48-pin thin small outline package (TSOP) for easy integration into most existing designs. "Micron is committed to meeting customers� solid state NAND memory requirements by offering competitive and quality solutions to enable next generation mobile applications,� said Bob Leibowitz, Micron�s NAND product marketing manager. �By leveraging our expertise in DRAM manufacturing, Micron is prepared to produce and deliver the high density devices customers demand for their mass storage requirements."

Micron NAND flash - Increasing demand
Micron�s 8Gb (MT29F8G08FABWP) and 4Gb (MT29F4G08BABWP and MT29F4G16BABWP) NAND products are currently shipping in volume production to support the increasing customer demand in the fast growing MP3, USB drive, and Flash card segments. The 8Gb NAND device is available in a 1Gb x 8 configuration and 4Gb NAND devices are available in 512Mb x 8 and 256Mb x 16 configurations.

About Micron Technology
Micron Technology, Inc., is one of the world's leading providers of advanced semiconductor solutions. Through its worldwide operations, Micron manufactures and markets DRAMs, NAND Flash memory, CMOS image sensors, other semiconductor components, and memory modules for use in leading-edge computing, consumer, networking, and mobile products. Micron's common stock is traded on the New York Stock Exchange under the MU symbol.

MT9V112 : SOC VGA DIGITAL IMAGE SENSOR
Features

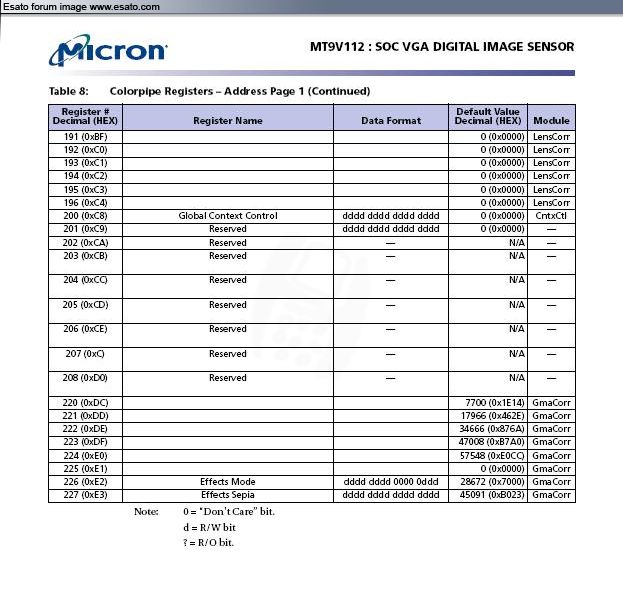

Table and Register MT9V112 SOC VGA DIGITAL IMAGE SENSOR

More info:http://www.micron.com/

[ This Message was edited by: brazuka on 2008-03-02 19:09 ]

Posted by brazzuka's
Sony Ericsson CamDriver Versions v4.0/Serie Version v4.17 BrAzUkA�s for w580
Optimized for the Sony Ericsson W580 ** Works w580/s500 **

Features w580:

-Video Recording:
High Quality= 10fps to 15fps
Low Quality= 15fps to 25fps
Normal Mode Dayligth=15fps full resolution UXGA SVGA
Nigth Mode=5fps to 10fps
-Properties:
-High sensitivity for low-light operation
-Support for Raw RGB, RGB (RGB565/555), GRB422, YUV (422/420) and YCbCr (4:2:2) formats
-Supports image sizes: UXGA, SXGA, SVGA
-Automatic image control functions:
Automatic Exposure Control (AEC)
Automatic Gain Control (AGC)
Automatic White Balance (AWB)
Automatic Band Filter (ABF)
Automatic Black-Level Calibration (ABLC)
-Image quality controls:
Color saturation
Gamma
Sharpness (edge enhancement)
Lens correction
White pixel canceling
Noise canceling
Frequency 50/60 Hz luminance detection

-Zooming
-Panning
-Windowing functions
-Internal/external frame synchronization
-Variable frame rate control
-Supports LED and flash strobe mode
-Supports scaling
-Supports compression
-Embedded microcontroller
-Line optical black level output capability
-Video or snapshot operation

Version: v4.0
-New White Balance-RGB
-New Exposure for w580
-New JPG buffer size
-Master Clock� 13mhz

Version:v4.0
Dowload:
http://www.4shared.com/file/35823343/f648fe35/v40_BrAzUkAs.html

Serie Version v4.17

Features Version v4.17_Standard�

- Standard_Mode
- Added properties Image stabilization/Photo metering/Mirroring Macros

Version v4.17_Standard�
Download:
http://www.4shared.com/file/3[....]fc/v417_Standard_BrAzUkAs.html

Features v4.17_Vivre Couleurs�

- Vivre Couleurs�
- Added properties Image stabilization/Photo metering/Mirroring Macros
- Color_CC Color Correction

Version v4.17_Vivre Couleurs�
Download:
http://www.4shared.com/file/3[....]7_Vivre_Couleurs_BrAzUkAs.html

Serie Version v4.20

Features Version v4.20_Standard�
- Color Correction Stable
- Levels Color Correction Normal/High/Low
- New JPEG compression buffer size based Qtable
- Fix White Balance WB
- Implemented unlock the property clock 24mhz with Master Clock�
- New Lens correction
- FRAME_RATE_30_FPS/FRAME_RATE_15_FPS/FRAME_RATE_14_FPS/FRAME_RATE_12_FPS
- New White balance and Color Correction RGB
- SENSOR_30FPS_SVGA_MODE
- SENSOR_15FPS_UXGA_MODE

Version v4.20_Standard�
Download:
http://www.4shared.com/file/4[....]75/v420_Standard_BrAzUkAs.html

Features v4.20_Vivre Couleurs�
- Vivre Couleurs�_Mode Stable
- Color Correction Stable
- More Brightness
- Levels Color Correction Normal/High/Low
- New JPEG compression buffer size based Qtable
- Fix White Balance WB
- Implemented unlock the property clock 24mhz with Master Clock� 24mhz
- New Exposure
- New Lens correction
- FRAME_RATE_30_FPS/FRAME_RATE_15_FPS/FRAME_RATE_14_FPS/FRAME_RATE_12_FPS
- New White balance and Color Correction RGB
- SENSOR_30FPS_SVGA_MODE
- SENSOR_15FPS_UXGA_MODE

Version v4.20_Vivre Couleurs�
Download:
http://www.4shared.com/file/4[....]0_Vivre_Couleurs_BrAzUkAs.html

*****************************************************
About Color Correction:
Thanks Raiderski by contributing to the table of correction of color and for help with programs settings to better adjustments of color and white balance.
******************************************************

[ This Message was edited by: brazuka on 2008-03-11 19:04 ]

Posted by brazzuka's
Sony Ericsson CamDriver Version 1.5 by BrAzUkA�s for z310
Version 1.5 BrAzUkA�s
Optimized for the Sony Ericsson z310 ** Works z310 **

Features z310:
-New Gamma correction
-Other Sequence for 15 fps frames per second
-New Sequence Pixel/Row noise reduction
-New Power sequence with 26mhz frequency clock
-New Sequence JPG compressing

Last Version:1.5
Download:
http://www.4shared.com/file/35459771/9e3d9809/v15_BrAzUkAs.html

[ This Message was edited by: brazuka on 2008-02-13 13:20 ]

Posted by brazzuka's
Sony Ericsson CamDriver Version v3.5/Version v3.91 by BrAzUkA�s for w710
Version v3.5/v3.91 BrAzUkA�s
Optimized for the Sony Ericsson W710 ** Works w700/w710 **

Features w710:

- New Sequence Power on/off
- New frequency 13mhz clock to 18 mhz
- New Video Recording

Version:3.5
Download:
http://www.4shared.com/file/35685303/c7f51d3c/v35_BrAzUkAs.html

Last Version:v3.91_Standard�
Download:
http://www.4shared.com/file/3[....]84/v391_Standard_BrAzUkAs.html

Last Version:v3.91_Prisma�
Download:
http://www.4shared.com/file/3[....]9c0b/v391_Prisma_BrAzUkAs.html

[ This Message was edited by: brazuka on 2008-03-01 21:15 ]

Posted by djburno2000
@brazuka:
do you think I can try your W300 on my Z530i or is it completely different hardware?

Thanks.

Posted by brazzuka's

On 2008-01-19 22:49:00, killerPK wrote:
@Brazukas
I found this in W200 Camdriver 7.5 final :

Line 397:
$cx$cx$cx$cx$cx$cx$cx$cx$cx$cx$

Line 424:
$cx$cx$cx$cx$cx$cx$cx$cx$cx$cx$

I think the last $ sign in both lines must be removed?

----------------------------------------------------------------------------------------------------
Kill
Removed some lines but the time to save remains the same is not felt that changed, some stimuli of functions are not taken or are not answered by the hardware that is what appears.

About other models like as k800

So I believe that apart from general properties are the properties specific to each chip to respond adequately to the sensor in each camera, send a message to the Raid saying about this Hypothesis.I think that for the models k800 someone or you could get the electrical scheme k800 chip to take advantage of their best qualities.

---------------------------------------------------------------------
[quote]
On 2008-01-22 08:04:42, djburno2000 wrote:
@brazuka:
do you think I can try your W300 on my Z530i or is it completely different hardware?

Thanks.
----------------------------------------------------------------------------------------------------

Djburno

Of course we can try the driver of the w300 but not assure you that the photographs will be the same as a w300.

[ This Message was edited by: brazuka on 2008-01-22 11:43 ]

Posted by brazzuka's
Sony Ericsson CamDriver Version v3.9/4.15 by BrAzUkA�s for k610
Version v3.9/4.15 BrAzUkA�s
Optimized for the Sony Ericsson k610

Features k610:

-Master Clock� k610 13mhz to 18 mhz clock
-New JPEG Compression /New JPEG buffer size
-New White Balance RGB based w910
-Implemented to work with property 24mhz
-New Power Sequence
-New Exposure

Version:v3.9_old
Download:
http://www.4shared.com/file/3[....]b1bba264/v39_old_BrAzUkAs.html

Version:v3.9
Download:
http://www.4shared.com/file/37176592/7fc2f3ff/v39_BrAzUkAs.html

Last Version:v4.15_Standard�
Download:
http://www.4shared.com/file/3[....]95/v415_Standard_BrAzUkAs.html

Last Version:v4.15_Prisma�
Download:
http://www.4shared.com/file/3[....]d6dd/v415_Prisma_BrAzUkAs.html

[ This Message was edited by: brazuka on 2008-03-01 21:12 ]

Posted by brazzuka's
Sony Ericsson CamDriver Version v4.16/4.19/6.8 by BrAzUkA�s for w850/w880
Version v4.16/v4.19/v6.8 BrAzUkA�s
Optimized for the Sony Ericsson W850 ** Works w830/w880 **

Features w850:

-Changed Color Matrix,Lens correction based on the values of the original driver w850
-New White Balance RGB/Exposure based (w910)
-New Power Sequence
-Implemented and Enabled property 13mhz to 18mhz
-Master Clock� w850/w880
-New JPEG quality buffer sizes
-jpeg_qtable_factors end sequence based by Number1 and other modders

Version v4.16
Download:
http://www.4shared.com/file/35854887/7e327e68/v416_BrAzUkAs.html

Version v4.16_Master_Clock_Beta
Download:
http://www.4shared.com/file/3[....]rAzUkAs_Master_Clock_Beta.html

Version w830 v3.4
Download:
http://www.4shared.com/file/3[....]543e7/camdriver0_v34_w830.html

Serie w830
Version:v3.5_Standard�
Download:
http://www.4shared.com/file/3[....]Prisma_Mode_w830_BrAzUkAs.html

Version:v3.5_Prisma_Mode�
Download:
http://www.4shared.com/file/3[....]Prisma_Mode_w830_BrAzUkAs.html

Last Version:v3.51_Standard�
Download:
http://www.4shared.com/file/4[....]51_Standard_w830_BrAzUkAs.html

Last Version:v3.51_Prisma_Mode�
Download:
http://www.4shared.com/file/4[....]sma_Mode_w830_BrAzUkAszip.html

Serie w850
Version:v4.19_Standard�
Download:
http://www.4shared.com/file/3[....]19_Standard_w850_BrAzUkAs.html

Version:v4.19_Prisma�
Download:
http://www.4shared.com/file/3[....]v419_Prisma_w850_BrAzUkAs.html

Last Version:v4.21_Standard�
Download:
http://www.4shared.com/file/4[....]1_Standard__w850_BrAzUkAs.html

Last Version:v4.21_Prisma�
Download:
http://www.4shared.com/file/4[....]v421_Prisma_w850_BrAzUkAs.html

Serie w880
Version:v6.5
Download:
http://www.4shared.com/file/40456625/e57bf48a/v65_BrAzUkAs.html

Last Version:v6.8_Standard�
Download:
http://www.4shared.com/file/4[....]4e7/v68_Standard_BrAzUkAs.html

Last Version:v6.8_Prisma�
Download:
http://www.4shared.com/file/4[....]45068/v68_Prisma_BrAzUkAs.html

[ This Message was edited by: brazuka on 2008-03-11 14:34 ]

Posted by aashish007

On 2008-01-25 02:32:09, brazuka wrote:
Sony Ericsson CamDriver Version v4.16 by BrAzUkA�s for w850
Version v4.16 BrAzUkA�s
Optimized for the Sony Ericsson W850 ** Works w850/w880 **

hey man could you please post a w830 driver..i heard that its different from the w850 driver only in its power sequence...would really appreciate it
heres the link to the default camdriver for w830(r1kgoo1)
http://rapidshare.com/files/8[....]W830_R1KG001_Camdrive.rar.html

Posted by brazzuka's
Sony Ericsson CamDriver Version 18.84 beta by BrAzUkA�s for w810
Version 18.84 beta BrAzUkA�s
Optimized for the Sony Ericsson W810 ** Works k750/w800 **
Based on the original driver v4.5 and driver v8.54 Cheng Rong/v5.8 Sarmad
Some codes and properties from Chegrong and Raiderski's Super Cam Driver

Features:
-New Power Sequence
-Master Clock� w810 (in test)
-New JPEG buffer size quality
-Shutter Width (in test)

Last Version:v18.84_beta
Download:
http://www.4shared.com/file/3[....]4c814/v1884_beta_BrAzUkAs.html

Need to test the driver

[ This Message was edited by: brazuka on 2008-02-13 13:23 ]

Posted by drvodka
Hey, have you done any improvements on the k510 driver, the 19/01 beta?

If I remember correctly, it still has a long way to go.

Posted by brazzuka's
[quote]
On 2008-01-26 16:47:52, drvodka wrote:
Hey, have you done any improvements on the k510 driver, the 19/01 beta?

If I remember correctly, it still has a long way to go.
----------------------------------------------------------------------------------------------------

U have some photos to post up here, as are the photos with this beta_190108 driver? Are with color graywish? u can upload some pics here
and about videos?

Posted by brazzuka's
Hi guys !

Total video makeover with Fixmymovie
Make your videos look great or try
It makes changes movies from your mobile phone, digital camera or webcam look great.

Fixmymovie
link:
http://www.fixmymovie.com/

An attempt to improve the quality of your video with this program, good at least it is an attempt to improve quality through a program.

Posted by brazzuka's
NEWS:
===================================================================
Realeyes3D announces software to reduce blurring of camera phone 1D barcode photos
===================================================================

Realeyes3D Cracks 1D Bar Code Scanning For Mobile Market
M-Commerce market poised to explode thanks to new, exclusive deblurring technology that enables one-click 1D bar code decoding from camera phones
(San Francisco, CA� January 24, 2008) �Realeyes3D, a pioneer in mobile imaging applications and services for camera phones, and a trusted player in mobile document scanning with the award-winning Qipit service, today announced that it has �cracked� a key mobile commerce challenge: Making 1D bar codes readable with about any camera phone. The 1D barcode is the familiar striped stamp that is on everything from a bag of potato chips to your cell phone battery, and its decoding required dedicated optical readers until now.

RealEyes3D�s �one-click� 1D bar code deblurring technology, currently in pilot testing phase with major wireless carriers, relies on a breakthrough proprietary image processing technology that restores 1D bar code images shot from a camera phone, and enables them to be read with virtually any camera phone model available in the market.
As one of the most ubiquitous ways to store machine-readable information, barcodes create a link between physical objects and digital information. Regular 1D bar codes are everywhere, printed on billions of products worldwide and already linked to a vast number of both free and commercial databases.
Drawing on its over five years experience designing and marketing successful mobile imaging applications, Realeyes3D�s invention leapfrogs the main blocking point for reading a 1D bar code from a mobile photo: the blur of the bar code lines. Most of the time, the small size of 1D bar codes makes it difficult for a camera phone user to take a photo of the code that is not blurred. When shot at a close distance, beyond the minimum focus distance of most camera phones, bar code lines become blurred in the image. The information they represent is destroyed, thus preventing correct decoding. This, together with the variety of bar code sizes, surfaces on which they are printed, and the poor quality of pictures of 1D bar codes produced by most camera phones, did not allow until now for mass-market commercial-grade 1D bar code mobile scanning. Only larger 1D bar codes could be decoded up until now with high-end camera phones (which feature either a macro mode or an auto focus lens), thus limiting the adoption of mobile 1D bar code scanning to a few pilot implementations and early adopters.

>See Video<
Video Youtube:
http://www.youtube.com/watch?v=kNoTTXOyDjg

�Our technology dramatically increases both the number of camera phones that can be used for 1D bar code scanning and the decoding performance of any camera phone, by increasing the number of bar code pictures that can be read,� said Benoit Bergeret, founder and CEO of Realeyes3D. �Our unique deblurring technology enables mobile 1D bar code scanning to considerably expand its scope and accelerates the introduction of one-click m-commerce applications for the benefit of all camera phone users -- not just for high-end users anymore.�
Mobile 1D bar code scanning has a market adoption potential that far exceeds that of mobile 2D bar code scanning, because 1D bar codes are already present on myriads of manufactured goods and printed content. On the contrary, 2D barcodes still have to be affixed on goods and content.
Commercial-grade mobile 1D bar code scanning will reduce the time-to-market and go-to-market costs of mobile barcode decoding solutions, thus enabling in the near future a large number of m-commerce applications, such as in-shop competitive price comparison, instant access to product information, purchase of content and goods on the go, and many more.
RealEyes3D�s mobile 1D bar code decoding technology is available either for embedding on handsets or as a server library. It can also be deployed in any back-end architecture supporting 2D bar code decoding and is compatible with the decoding of all 1D bar code formats. Handset manufacturers willing to integrate mobile barcode deblurring in their devices will benefit from Realeyes3D�s extensive experience developing and integrating embedded mobile imaging applications in over 50 million handsets to date.

Differences between 1D Bar Code and 2D Bar Code:
Sample images available

About Realeyes3D
Realeyes3D designs, develops and sells award-winning embedded applications and wireless data services for users of camera phones. Realeyes3D applications enable new camera-based features and services in the areas of personal productivity, mobile messaging, user interfaces, gaming, and more. Realeyes3D enables camera phone manufacturers, mobile operators, and mobile content specialists to increase their value proposition to consumer and professional camera phone users. Founded in 2001 and based in Paris, France, Realeyes3D has offices in
Tokyo, Hong Kong and San Francisco. Realeyes3D customers include top-tier global handset manufacturers and mobile operators. For more information,

info:http://www.realeyes3d.com
visit:http://www.cameraphonereport.com

_________________
brazukas.wordpress.com
picasaweb.google.com/brazzukas
brazzukas.4shared.com

[ This Message was edited by: brazuka on 2008-01-29 01:46 ]

Posted by aashish007
hey could you please make a camera driver for the w830?

Posted by brazzuka's
[quote]
On 2008-01-29 09:24:14, aashish007 wrote:
hey could you please make a camera driver for the w830?
----------------------------------------------------------------------------------------------------
My friend the power sequence is the same the w830/w850 are identical on camera you can test the driver of the w850 because there were not many changes.
Try the driver w850 and write the results here. and up some pics with your w830 here.

Posted by sergiogber
Thanks Brazuka for the recognition about my work. I think that you must post your work in Topsony personally, there are many people that are posting your work and I think that you are the only who know what it is. You have many people that are waiting four you at topsony. Thanks and good work.
PD: My version sergiogber14.5 for w200 and w300 is also good!!

Posted by djburno2000
@Brazuka:
Sorry for long time without answer.
Ok, tried the w300 driver on my z530.
It works fine.
Compared to the z530 driver, I don't have the problem of the light metering getting stuck.
Also, it seems to react much faster than original driver.

Things to note:
- Nightmode: like the z530 driver, activating this has no effect.
- Effects: black and white in fact is sepia. Only black and white "works" (a sepia) all the other effect modes do nothing.

Quality seems a bit improved from the z530 driver.
Sorry, I can't post pics now, but at least I wanted to give you some feedback.

Thanks for your job!
Keep it up.

Posted by aashish007
@brazuka
well i tried using ure w850 driver in my w830..when i click on the camera icon..it just hangs..could u look into this problem..it will be of great help if you could find a solution!!

Posted by brazzuka's
Flextronics Mobile

Flextronics' Mobile Segment is a leading provider of advanced design and electronics manufacturing services to OEM customers in the mobile communications device industry. The Mobile Segment offers full-spectrum design, industrialization, and manufacturing services to help customers create market-leading products across a broad range of mobile communications products, including GSM, CDMA, and WCDMA.

Capabilities include:

* Manufacturing presence in low-cost regions worldwide
* Core service offering vertically integrated with mechanicals, components, antennas, and logistics
* Complete supply chain and product life cycle management

Camera Modules

Excellent Image Quality

By combining the worlds best CMOS sensor technology with industry-leading opto-mechanics design and development capabilities, Flextronics' Components Group builds cameras that have superior image quality. Module features include hue control, auto exposure control, auto white balance, gamma correction, color saturation, color recovery, color correction, auto black leveling, flicker avoidance, sharpening, lens shading, and defect identification/correction. Cameras using the Components Group's modules provide a clean, stable color image for use in a variety of applications.

Advanced Opto-Mechanics

The Camera Module design team has some of the top designers in the opto-mechanics engineering discipline. Expertise ranges from developing Macro focus modules to 5MP 3X Zoom Auto Focus with shutter and flash. The team's designers are forging the future of advanced opto-mechanics design for camera modules.

Supply Assurance

Our global procurement team establishes a direct relationship with strategic suppliers and rewards high-performance with growth opportunities and market share. The Components Group leverages Flextronics' economy of scale to obtain advantageous pricing, terms, and conditions, assuring continuity of supply and best-in-class quality and support.

Cost-effective Solutions

Flextronics' Industrial Parks strategy maximizes the advantages of global, large-scale, high-volume capabilities. Located in low-cost regions worldwide, Industrial Parks enable us to develop products onsite and ship them directly to our customers end users, reducing the cost of production and minimizing freight costs.

Local Technical Support

Our Field Applications Engineering team provides regionally based support for customer design teams, Flextronics Business Development, and product application teams. The Field Applications Engineering team acts as a support service organization by helping to communicate and negotiate project-specific technical details between customer and internal Flextronics teams.

Posted by brazzuka's
@aashish007

well i tried using ure w850 driver in my w830..when i click on the camera icon..it just hangs..could u look into this problem..it will be of great help if you could find a solution!!
---------------------------------------------------------------------------------------------------
You have already tried to use the original driver of the w830? What firmware u are using? Because the power sequence is the same the w850.
U said that when it triggers a cam lock? maybe change of sequence or values power sequence by values w830
Look the power sequence w850/w830 works OmniVision 2640

w850 OmniVision 2640

On
cam_power_on_0=5, 0, 0, 1, 0;
cam_power_on_1=5, 1, 26, 1, 0; //enable vga cam
cam_power_on_2=5, 2, 26, 1, 1;
cam_power_on_3=5, 1, 27, 1, 0;
cam_power_on_4=5, 2, 27, 1, 5;
cam_power_on_5=5, 1, 24, 1, 0;
cam_power_on_6=5, 2, 24, 1, 5;
cam_power_on_7=5, 1, 35, 1, 0;
cam_power_on_8=5, 2, 35, 1, 5;
cam_power_on_9=5, 3, [02], [32C8], 5; //Start REG[2] /13MHZ/ 5ms
cam_power_on_a=5, 0, 0, 0, 5;
cam_power_on_b=5, 1, 37, 1, 0;
cam_power_on_c=5, 2, 37, 1, 0;
cam_power_on_d=5, 1, 47, 1, 0;
cam_power_on_e=5, 2, 47, 0, 96; //Enable 2mb cam

Off
cam_power_off_0=5, 1, 26, 1, 0;
cam_power_off_1=5, 2, 26, 1, 0;
cam_power_off_2=5, 1, 47, 0, 0;
cam_power_off_3=5, 2, 47, 0, 0;
cam_power_off_4=5, 1, 37, 0, 0;
cam_power_off_5=5, 2, 37, 0, 5;
cam_power_off_6=5, 3, 02, 1, 5;
cam_power_off_7=5, 0, 0, 1, 5;
cam_power_off_8=5, 1, 35, 1, 0;
cam_power_off_9=5, 2, 35, 0, 5;
cam_power_off_a=5, 1, 24, 1, 0;
cam_power_off_b=5, 2, 24, 0, 5;
cam_power_off_c=5, 1, 27, 1, 0;
cam_power_off_d=5, 2, 27, 0, 0;

Clocks
cam_vf_clock_freq=[2],[32C8]; // Clock #2 on, frequency 13MHz
cam_ss_clock_freq=[2],[32C8]; // Clock #2 on, frequency 13MHz

w830 OmniVision 2640

On
cam_power_on_0=5, 0, 0, 1, 0;
cam_power_on_1=5, 1, 27, 1, 0;
cam_power_on_2=5, 2, 27, 0, 5;
cam_power_on_3=5, 1, 24, 1, 0;
cam_power_on_4=5, 2, 24, 1, 5;
cam_power_on_5=5, 1, 35, 1, 0;
cam_power_on_6=5, 2, 35, 1, 5;
cam_power_on_7=5, 3, [02], [32C8], 5; //Start REG[2] /13MHZ/5ms
cam_power_on_8=5, 0, 0, 0, 5;

Off
cam_power_off_0=5, 3, 02, 1, 5;
cam_power_off_1=5, 0, 0, 1, 5;
cam_power_off_2=5, 1, 35, 1, 0;
cam_power_off_3=5, 2, 35, 0, 5;
cam_power_off_4=5, 1, 24, 1, 0;
cam_power_off_5=5, 2, 24, 0, 5;
cam_power_off_6=5, 1, 27, 1, 0;
cam_power_off_7=5, 2, 27, 1, 0;

Clocks
cam_vf_clock_freq=[2],[32C8]; // Clock #2 on, frequency 13MHz
cam_ss_clock_freq=[2],[32C8]; // Clock #2 on, frequency 13MHz

Post #8
Test the driver for w830 v3.4
Download:
http://www.4shared.com/file/3[....]543e7/camdriver0_v34_w830.html

Posted by amnher
Pictures taken by Brazuka 5.6 driver for w600i using w550i phone:

Pictures taken by Depeha 5.5 driver for w550i with k600 cam driver. Power on sequence by w550i located here: http://walkmans.wordpress.com/2007/07/15/1-cam-driver-for-w550/

the pictures are:

[ This Message was edited by: amnher on 2008-02-01 02:22 ]

[ This Message was edited by: amnher on 2008-02-01 02:27 ]

[ This Message was edited by: amnher on 2008-02-01 02:28 ]

Posted by amnher
as you can see the pictures are better excpt for the brightness part. The 5.5 driver has some grains but the brazuka driver is at least none. Not sure if it is because it is low in brightness. Both pictures have have 0.0 exposures. If you can adjust the drivers for my w550i.

Posted by aashish007
[/quote]

You have already tried to use the original driver of the w830? What firmware u are using? Because the power sequence is the same the w850.
U said that when it triggers a cam lock? maybe change of sequence or values power sequence by values w830
Look the power sequence w850/w830 works OmniVision 2640

w850 OmniVision 2640

On
cam_power_on_0=5, 0, 0, 1, 0;
cam_power_on_1=5, 1, 26, 1, 0; //enable vga cam
cam_power_on_2=5, 2, 26, 1, 1;
cam_power_on_3=5, 1, 27, 1, 0;
cam_power_on_4=5, 2, 27, 1, 5;
cam_power_on_5=5, 1, 24, 1, 0;
cam_power_on_6=5, 2, 24, 1, 5;
cam_power_on_7=5, 1, 35, 1, 0;
cam_power_on_8=5, 2, 35, 1, 5;
cam_power_on_9=5, 3, [02], [32C8], 5; //Start REG[2] /13MHZ/ 5ms
cam_power_on_a=5, 0, 0, 0, 5;
cam_power_on_b=5, 1, 37, 1, 0;
cam_power_on_c=5, 2, 37, 1, 0;
cam_power_on_d=5, 1, 47, 1, 0;
cam_power_on_e=5, 2, 47, 0, 96; //Enable 2mb cam

Off
cam_power_off_0=5, 1, 26, 1, 0;
cam_power_off_1=5, 2, 26, 1, 0;
cam_power_off_2=5, 1, 47, 0, 0;
cam_power_off_3=5, 2, 47, 0, 0;
cam_power_off_4=5, 1, 37, 0, 0;
cam_power_off_5=5, 2, 37, 0, 5;
cam_power_off_6=5, 3, 02, 1, 5;
cam_power_off_7=5, 0, 0, 1, 5;
cam_power_off_8=5, 1, 35, 1, 0;
cam_power_off_9=5, 2, 35, 0, 5;
cam_power_off_a=5, 1, 24, 1, 0;
cam_power_off_b=5, 2, 24, 0, 5;
cam_power_off_c=5, 1, 27, 1, 0;
cam_power_off_d=5, 2, 27, 0, 0;

Clocks
cam_vf_clock_freq=[2],[32C8]; // Clock #2 on, frequency 13MHz
cam_ss_clock_freq=[2],[32C8]; // Clock #2 on, frequency 13MHz

w830 OmniVision 2640

On
cam_power_on_0=5, 0, 0, 1, 0;
cam_power_on_1=5, 1, 27, 1, 0;
cam_power_on_2=5, 2, 27, 0, 5;
cam_power_on_3=5, 1, 24, 1, 0;
cam_power_on_4=5, 2, 24, 1, 5;
cam_power_on_5=5, 1, 35, 1, 0;
cam_power_on_6=5, 2, 35, 1, 5;
cam_power_on_7=5, 3, [02], [32C8], 5; //Start REG[2] /13MHZ/5ms
cam_power_on_8=5, 0, 0, 0, 5;

Off
cam_power_off_0=5, 3, 02, 1, 5;
cam_power_off_1=5, 0, 0, 1, 5;
cam_power_off_2=5, 1, 35, 1, 0;
cam_power_off_3=5, 2, 35, 0, 5;
cam_power_off_4=5, 1, 24, 1, 0;
cam_power_off_5=5, 2, 24, 0, 5;
cam_power_off_6=5, 1, 27, 1, 0;
cam_power_off_7=5, 2, 27, 1, 0;

Clocks
cam_vf_clock_freq=[2],[32C8]; // Clock #2 on, frequency 13MHz
cam_ss_clock_freq=[2],[32C8]; // Clock #2 on, frequency 13MHz

Post #8
Test the driver for w830 v3.4
Download:
http://www.4shared.com/file/3[....]543e7/camdriver0_v34_w830.html

[/quote]

yes the ver 3.4 works in my w830!..so can u upgrade it to ure latest version?(v4)..so the only difference is the omni sequence correct?
well in ure 3.4 ver..the pictures look good..the only drawback might be the video recording which appears sort of grainy..i havent tested ure v4 so i dont really know much about it..hope u post ure v4 for the w830 soon!!
btw thank you for all ure help!

Posted by brazzuka's
Sony Ericsson CamDriver Version Series v5.95/v5.96 by BrAzUkA�s for w600
Version Series v5.95/5.96 BrAzUkA�s
Optimized for the Sony Ericsson W600 ** Works k600/w550/z550 **

Features w600:
Video recording:
Low Quality= New Recording Video fps
High Quality= New Recording Video fps
Added properties:More Colors
More Sharpness
New White Balance
Pseudo Scene Super Color� Effect solarize (Choose in effects menu)
Incredible brightness
New JPEG compresion/New JPEG_qtable/New JPEG buffer size
New Exposure
Master Clock� for w600 with 18mhz
Removed some property exposure

Version:v5.6
Download:
http://www.4shared.com/file/32502350/cd1f879b/v56_BrAzUkAs.html

Version:v5.95_ADCM3855
Download:
http://www.4shared.com/file/3[....]c/v595_ADCM_3855_BrAzUkAs.html

Last Version:v5.96_ADCM3855
Download:
http://www.4shared.com/file/3[....]596_ADCM_3855_BrAzUkAszip.html

*****************************
About Pack Patches w600/w550:
*****************************
Package with patches for various functions for w600/w550
Patche for multiple cam drivers you can switch cam driver from the folder described
folder:camdrivers/others/drv

*************
About Scenes:
*************
The effects have been replaced by pseudo-scenes

Scenes support w600:(Choose in effects menu)
Effect solarize =>Super Color�

If the you (user) to need back the effects originalconfiguration replace
the values of effect for original driver works ADCM-3855 and if you want come back the effects
original first remove or disable the function Super Color�
Here the values of effect you can change the values here:

=========================================================================================
seq_set_prop_8_3 = // Effect: Solarize
#PAUSE_VIEWFINDER
#WAIT_FOR_VF_EOF

#READ_REG_2_3(#AFCTRL2)
$b3 00 0 1 //switch to grayworld AWB
$f 84 $w2 $w3
$d0004
#READ_REG_2_3(#AFCTRL)
$b2 00 3 1 //switch to turn off NACC
$f 80 $w2 $w3
$d0010

#set_linear_weighted_tonemap // Linear weighted TM
$f FE 04 // CC matrix
$f E0 31 02 0F FF
$f E8 C0 FF 63 FF
$f F0 54 02 49 FF
$f F8 D4 FF 63 FE
$f FE 05
$f 00 C9 02
$f FE 20
$f 50 31 02 0F 0F
$f 58 C0 0F 63 0F
$f 60 54 02 49 0F
$f 68 D4 0F 63 0E
$f 70 C9 02
$f FE 03 // Video TM
$f 80 00 04 E9 00 // Same gamma settings for video and snapshot
$f 88 A9 03 44 03
$f 90 C3 02 32 02
$f 98 9C 01 0E 01
$f A0 95 00 3C 00
$f A8 09 00 02 00
$f B0 26 00 74 00
$f B8 E3 00 6B 01
$f C0 FF 01 94 02
$f C8 1C 03 8B 03
$f D0 D9 03 FD 03
$f D8 F6 03 C3 03
$f E0 6A 03 F1 02
$f E8 63 02 CD 01
$f F0 3C 01 BB 00
$f F8 56 00 16 00
$f FE 04
$f 00 00 00 00 04 // Still TM (starts on second word)
$f 08 E9 00 A9 03
$f 10 44 03 C3 02
$f 18 32 02 9C 01
$f 20 0E 01 95 00
$f 28 3C 00 09 00
$f 30 02 00 26 00
$f 38 74 00 E3 00
$f 40 6B 01 FF 01
$f 48 94 02 1C 03
$f 50 8B 03 D9 03
$f 58 FD 03 F6 03
$f 60 C3 03 6A 03
$f 68 F1 02 63 02
$f 70 CD 01 3C 01
$f 78 BB 00 56 00
$f 80 16 00 00 00
$f FE 28 // IPIPE TM
$f 00 00 04 E9 00
$f 08 A9 03 44 03
$f 10 C3 02 32 02
$f 18 9C 01 0E 01
$f 20 95 00 3C 00
$f 28 09 00 02 00
$f 30 26 00 74 00
$f 38 E3 00 6B 01
$f 40 FF 01 94 02
$f 48 1C 03 8B 03
$f 50 D9 03 FD 03
$f 58 F6 03 C3 03
$f 60 6A 03 F1 02
$f 68 63 02 CD 01
$f 70 3C 01 BB 00
$f 78 56 00 16 00
$f 80 00 00
#UNPAUSE_VIEWFINDER;
=========================================================================================

[ This Message was edited by: brazuka on 2008-02-25 12:47 ]

Posted by steel_1dr
hi man.can you tell me how to install w200i drivers

Posted by amnher
Sir brazuka, I need an original cam driver for my w550i 4.6 so I can revert if ever the 5.95 still is unstable. I have only reflash my phone because the quality of depeha 5.5 driver is not gud comapred to the original 4.6 driver. I still dont have a copy of 4.6 R4CB firmware for my w?50i. Does anyone have the original driver?

Posted by brazzuka's
[quote]
On 2008-02-02 01:35:45, amnher wrote:
Sir brazuka, I need an original cam driver for my w550i 4.6 so I can revert if ever the 5.95 still is unstable. I have only reflash my phone because the quality of depeha 5.5 driver is not gud comapred to the original 4.6 driver. I still dont have a copy of 4.6 R4CB firmware for my w?50i. Does anyone have the original driver?
---------------------------------------------------------------------------------------------------

your driver
http://walkmans.wordpress.com/2007/07/15/1-cam-driver-for-w550/

but u can have original driver w550 extract drawing files firmware FS

Posted by amnher
[quote]
On 2008-02-02 02:24:29, brazuka wrote:

On 2008-02-02 01:35:45, amnher wrote:
Sir brazuka, I need an original cam driver for my w550i 4.6 so I can revert if ever the 5.95 still is unstable. I have only reflash my phone because the quality of depeha 5.5 driver is not gud comapred to the original 4.6 driver. I still dont have a copy of 4.6 R4CB firmware for my w?50i. Does anyone have the original driver?
---------------------------------------------------------------------------------------------------

your driver
http://walkmans.wordpress.com/2007/07/15/1-cam-driver-for-w550/

but u can have original driver w550 extract drawing files firmware FS

How do I do this?

Is there a way I can backup my own camera driver or any driver I want in my phone via se tool 2 lite? since Far and XS++ doesnt work for my phone.

Regarding the site youve given that is depeha's post right?

[ This Message was edited by: amnher on 2008-02-02 03:00 ]

[ This Message was edited by: amnher on 2008-02-02 03:02 ]

Posted by brazzuka's
[quote]
On 2008-02-02 02:24:29, brazuka wrote:
[quote]
On 2008-02-02 01:35:45, amnher wrote:
Sir brazuka, I need an original cam driver for my w550i 4.6 so I can revert if ever the 5.95 still is unstable. I have only reflash my phone because the quality of depeha 5.5 driver is not gud comapred to the original 4.6 driver. I still dont have a copy of 4.6 R4CB firmware for my w?50i. Does anyone have the original driver?
---------------------------------------------------------------------------------------------------

your driver
http://walkmans.wordpress.com/2007/07/15/1-cam-driver-for-w550/

but u can have original driver w550 extract drawing files firmware FS

What happens to the driver 3.95? Not a cam alloy, is a white screen? Describe what happens as often is the only change power sequence

Posted by brazzuka's
w600
Last version:v5.95_beta
Download:
post#9
http://www.esato.com/board/viewtopic.php?topic=159467&start=120

Need to test the driver , maybe change the values power sequence

use setool for extract your driver firmware FS

[ This Message was edited by: brazuka on 2008-02-02 03:13 ]

Posted by amnher
Im still charging my phone right now. Im still finding the 4.6 version of w550i camera driver because the link youve given is k600 driver with w550i power on sequence. Im looking for the original one with 4.6 then ill be able to test your 5.95 camera driver.

I still do not know how to backup my my drivers

Posted by amnher
How do I extract? Im using SE Tool 2 lite 1.11

Posted by amnher

On 2008-02-02 04:03:24, brazuka wrote:
w600
Last version:v5.95_beta
Download:
post#9
http://www.esato.com/board/viewtopic.php?topic=159467&start=120

Need to test the driver , maybe change the values power sequence

use setool for extract your driver firmware FS

[ This Message was edited by: brazuka on 2008-02-02 03:13 ]

Camera wont start when I use this driver 5.95 my phone is w550i

Posted by brazzuka's
@amnher

I don�t understand friend... the version 5.95_beta don�t works or whats?
The drivers of the w600 and w550 are the same friends I only achieve the original driver of the w550 not working now because the program and now works to extract the files of firmware fs and u can use the driver w600 in your mobile w550 is the same.
Tell me the version 5.95_beta don�t works ? whats wrong and for extract files firmware FS use the programm main2raw and sefstool4 and babe2raw

[ This Message was edited by: brazuka on 2008-02-05 01:45 ]

Posted by amnher

On 2008-02-05 02:41:44, brazuka wrote:
@amnher

I don�t understand friend... the version 5.95_beta don�t works or whats?
The drivers of the w600 and w550 are the same friends I only achieve the original driver of the w550 not working now because the program and now works to extract the files of firmware fs and u can use the driver w600 in your mobile w550 is the same.
Tell me the version 5.95_beta don�t works ? whats wrong and for extract files firmware FS use the programm main2raw and sefstool4 and babe2raw

[ This Message was edited by: brazuka on 2008-02-05 01:45 ]

5.6 is working for me but very dark.
5.95, my camera doesnt start.
do you have a yahoo messanger? SO I can explain to you

[ This Message was edited by: amnher on 2008-02-05 02:04 ]

Posted by amnher
Sir brazuka u there my camera is not working T_T

Posted by amnher

No choice I just have to reflash my phone T_T

Posted by brazzuka's
[quote]
On 2008-02-05 06:26:48, amnher wrote:

On 2008-02-05 02:41:44, brazuka wrote:
@amnher

I don�t understand friend... the version 5.95_beta don�t works or whats?
The drivers of the w600 and w550 are the same friends I only achieve the original driver of the w550 not working now because the program and now works to extract the files of firmware fs and u can use the driver w600 in your mobile w550 is the same.
Tell me the version 5.95_beta don�t works ? whats wrong and for extract files firmware FS use the programm main2raw and sefstool4 and babe2raw
------------------------------------------------------------------------------------------------

Last Version: v5.95 w600/w550
Download:Post #9
http://www.esato.com/board/viewtopic.php?topic=159467&start=120

Posted by amnher
@Brazuka

Is there a new version for the cam?
I tried it many times still 5.95 doesnt work

Pages:

Previous 1 234 5 6 7 8 Next
