C510 poor reception . The Fix

Click to view updated thread with images

Posted by EVUL

Had my phone apart to see what was causing the crap reception

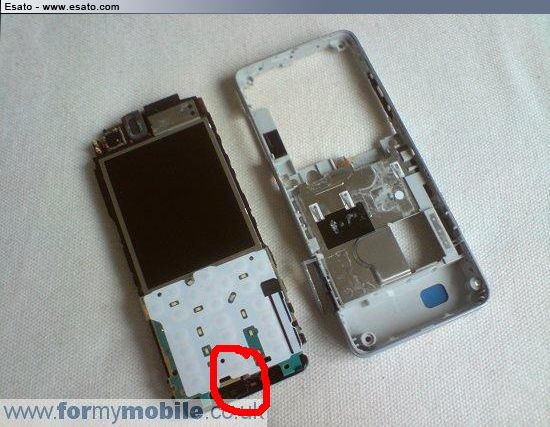

The little tab on the arial block needs to sit between the keyboard PCB and the frame , there is a little cut out for it , i think mine was sitting below this frame and not connecting properly , as when i put my phone back together i put the tab in this recess and my reception has now vastly improved , i can now get a signal where previously i couldnt , its got to be 100% better

How to disassemble here

Hope this helps everyone disgruntled with their C510 reception
[ This Message was edited by: EVUL on 2010-01-12 23:07 ]
