PDA phones are usually bigger than your average cellphone and smaller than your average PDA.By reducing size, PDA phones often sacrifice some of the functionality that regular PDA users enjoy.

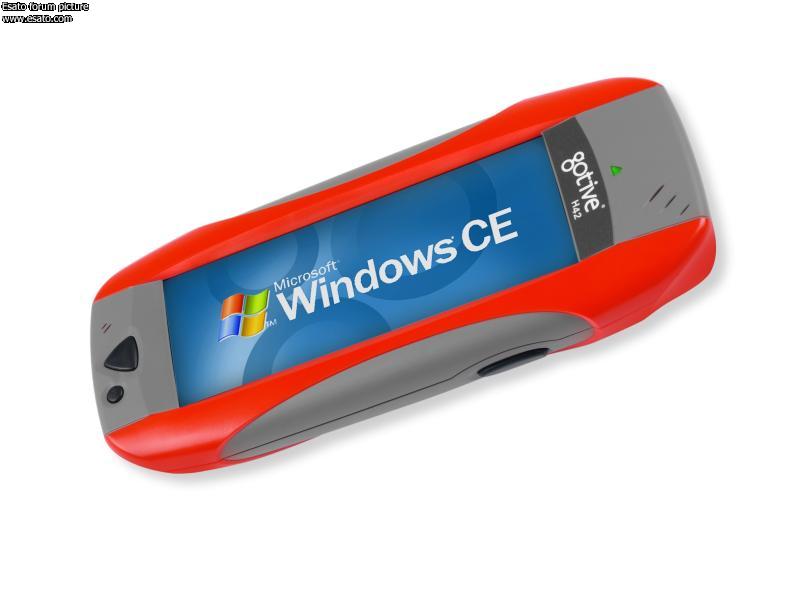

The Gotive H42, (Successor of the H41)
however is not embarrassed about its size.
Its HUGE! even by PDA standards!
The 600g  device has a 500mhz Intel cpu powered by windows mobile 5.0 and works with wi-fi, Bluetooth and GSM and has a 6.2 inch widescreen. (640*240)

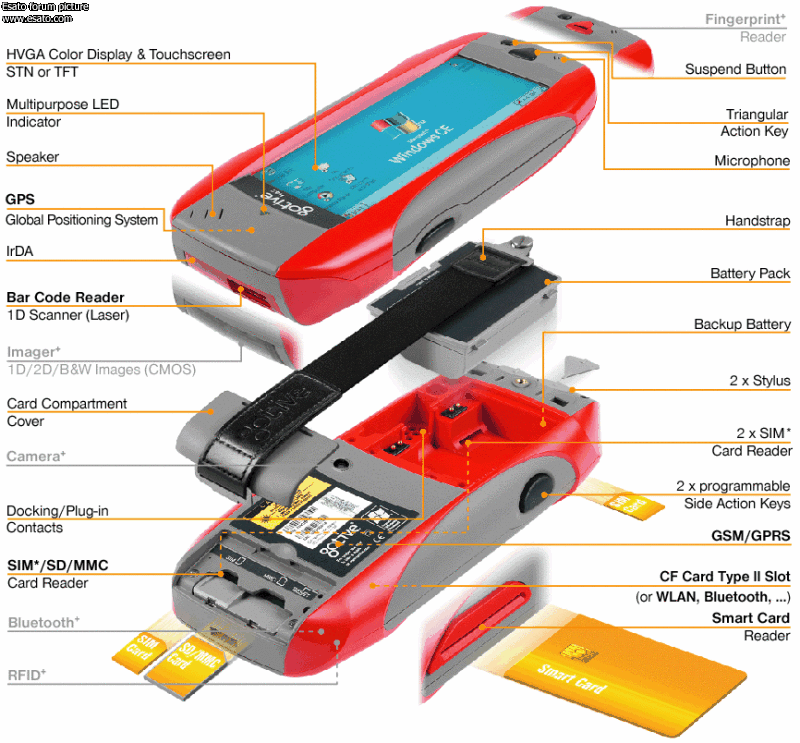

Features List:
Physical Characteristics
Dimensions
230 x 94 x 34 mm (9.05 x 3.70 x 1.34 in)
Weight
from 580 g incl. Battery Pack (depends on HW configuration) (20.5 oz)
Environment Sealing
IP54
Drop Specification
1,2 m (4ft.)
Storage Temperature
-30 to 60°C
Operating Temperature
-10 to 60°C
Relative Humidity
5% to 95% non-condensing
Case Colour Traffic
Red, Blue Sky, Industrial Grey or Custom Specified
Key Hardware
CPU
Intel® Bulverde PXA 270 - 520 MHz
Memory
384 MB total Memory (128MB RAM and 192MB user accesible non-volatile Flash memory)
Display & Touch screen
6,2" HVGA 640 x 240 pixels (153 x 58 mm effective area), 65 536 Colours, STN or TFT Integrated Touchscreen, Dynamic Lanscape/Portrait Operation Switch, CFL backlight Keyboard Soft (on-screen) finger friendly Keyboard, freely resizable, freely programmable
LED indicators
System status, GSM/GPRS status, GPS status
Buttons
Free Programmable Action Side and Triangular Buttons, Suspend, Reset
Sound
18 bit sound, 1 Speaker, 1 Microphone
Power
internal: removable/recharg. 4800 mAh Li-Ion Battery Pack, user swappable - 17.8 Wh nonremovable - 750 mAh LiPol recharg. Backup Battery - 2.8 Wh
external : variety of charging accessories - see respective datasheets
Memory Expansion
SD/MMC Card, 4 bit, up to 10 MB/s read/write, user accessible
Memory/Module Expansion
CF Card Type II (service accessible)
Communication
Wireless WAN
optional, GSM/GPRS Module Tri Band 900/1800/1900 MHz, GPRS Class 10, Internal Antenna, SIM Card holder (user accessible, not for dual use), Connector for External Antenna
Wireless LAN
optional, 802.11b (11 Mbps) via CF Card Type II slot, internal antenna
Wireless PAN
optional, Bluetooth embedded module or via CF Card Type II slot, Class 2, Internal Antenna IrDA, 115 Kbps
USB Host/Client
via USB Host Plug or Docking Stations
Data Capture
Bar Code Reader
optional, integrated high performance 1D Laser Scanner or 1D/2D CMOS Imager Scanner*
Smart Card Reader
optional, compliant to ISO 7816-1,2,3,4; T=0 and T=1 protocols, 3V and 5V selectable
Fingerprint Reader
optional*
Signature Capture
on screen signature capabilities*
Navigation
Global Positioning System (GPS)
optional, 16 channel NMEA, SBAS support, Internal Antenna, Connector for External Antenna
Key Software
Operating System
Windows® CE 5.0 (BSP on request for qualified projects)
Development Environment
Gotive H42 SDK for Visual Studio .NET (Visual Basic, C#) and Embedded Visual C++ SDK API functions available for: GSM/GPRS (GSMNow!) - support for voice, data, sms GPS (optional MAPNow!) - support for localisation, navigation BCR LCD, Freely programmable Action Keys
Terminal Emulator
Windows Terminal Services,,optional 3rd party software
Gotive Applications
Large Finger Operable QWERTY Keyboard, freely resizable, freely programmable Backup Manager
Microsoft® Applications
Internet Explorer 6.0, Inbox, Wordpad Browser Plug-ins Macromedia®Flash® Plug-in enabled Microsoft Windows Media Player Java Support via 3rd party software
Software Update
via SD Card or USB
PC Connectivity
Microsoft ActiveSync 3.7 or higher
Accessories
Power
internal: Battery Pack - Li-Ion 4800 mAh Battery Pack Charging Station (10 charging positions)
external: Travel Charger Plug incl. TC Power Supply Adapter or TC CL Adapter 12V/24V Docking Station, Simple Docking Station, Multidocking Station (4 or 10 charging positions)
Data Connectivity
Direct Plugs
USB Plug (Host) incl. USB cable, RS-232 Plug incl. RS-232 cable, Audio Plug via DS, SDS USB, RS-232, Vehicle communication (10 Wires: Power, Ignition, Microphone, Speaker, External Output (Mute), Ground, Can Bus) - via variety of Docking Stations
Ergonomy&Operability
Carrying Case Basic
Carrying Case Functional
Stylus
Handstrap
What say folks??
Source:
http://www.gotive.com/products/H42-datasheet-large.htm
_________________
Enter funny one liner here...
Memory Stick FAQ
Visit Kumarakom!!
[ This Message was edited by: whizkidd on 2005-12-21 11:01 ] | |
|
batesie
Joined: Feb 13, 2004
Posts: > 500
From: London, UK
PM |
interesting...
wouldnt mind seeing it next to a P990 or an iMate....
[addsig] |
whizkidd
Joined: May 14, 2004
Posts: > 500
From: India
PM, WWW
|
Batesie, did you check the H41 link in the last post? You can see how big this thing really is!
T230 >> T610 >> Ngage QD >> N73 >> N85 >> Omnia HD >> And countless other review units |
batesie
Joined: Feb 13, 2004
Posts: > 500
From: London, UK
PM |
ahh 9500 size...
maybe not then.
[addsig] |
whizkidd
Joined: May 14, 2004
Posts: > 500
From: India
PM, WWW
|
Quote:
| On 2005-12-21 12:34:42, batesie wrote: ahh 9500 size... maybe not then. |
|
:lol:
the 9500 is puny compared to this monster!
9500: 148*57*24
227gms
this thing is 230*94*34 and weighs half a kilo! 600gms...
T230 >> T610 >> Ngage QD >> N73 >> N85 >> Omnia HD >> And countless other review units |
batesie
Joined: Feb 13, 2004
Posts: > 500
From: London, UK
PM |
jees! err, a laptop with a GPRS/UTMS PCMCIA card would be easier lol
[addsig] |
axxxr
Joined: Mar 21, 2003
Posts: > 500
From: Londinium
PM, WWW
|
It is abslutely huge...its more of a proffessional product,can't see myself tucking this into the back pocket of my jeans.
[addsig] |
Lordmike
Joined: Apr 29, 2003
Posts: > 500
From: Sweden
PM |
Would be great working in the field. Instead of writing technical data on relay protection sheets, we could do it in excel on this thing.
|
EastCoastStar
Joined: Dec 07, 2003
Posts: > 500
From: orlando fl US
PM |
this of it this way... if you do alot of hands on work where your phone can get messed up, and you need a pda - this is the one for you. you cant go use your p910 as it might break with all the work you do, so you bring this thing along.
i bet they arnt cheap though
Its good to be back! |
Lordmike
Joined: Apr 29, 2003
Posts: > 500
From: Sweden
PM |
@EastCoastStar
If any of the field technicians would need one, then the company will pay for one.
|
whizkidd
Joined: May 14, 2004
Posts: > 500
From: India
PM, WWW
|
The Gotive H42 retails at around $3000 USD if i'm not mistaken...
Thats a lot of money!
T230 >> T610 >> Ngage QD >> N73 >> N85 >> Omnia HD >> And countless other review units |
Debu
Joined: Jan 15, 2003
Posts: > 500
From: Colchester, UK
PM |
LOL! Even the imate kJam has BT/Wifi/Windows Mobile 5.0/128MB + Expansion via SD/Large touch screen but its not 0.6 KILOGRAMS!!
Visit My Blog : Debu's Innovations'When nine hundred years old you will be, look as good, you will not' - Yoda | |
|
