World's 1st Luxeon flashlight for SE mobiles |
Aikonoklast
Joined: Feb 02, 2002
Posts: 363
PM |

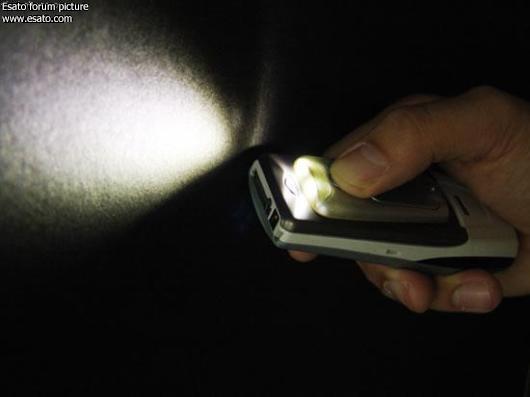

Goodbye Bluetorch, meet:
It's powered by a single LUXEON emitter. Very bright! |
|
|
macdid
Joined: Jan 14, 2003
Posts: 65
From: earth
PM |
woww this looks great and bright too |
blackspot
Joined: Sep 06, 2004
Posts: > 500
From: Philippines
PM |
that's great, how much is it?
resistance is futile. |
Avatar235
Joined: Jan 24, 2003
Posts: 151
From: Avatown, Australia
PM |
Looks nice!
If i could hazzard a guess i'd say the connector is an OEM charger port, and where the light emits was where the cable was. If its home made, can u supply us with schematics/plans? |
mrao
Joined: Nov 11, 2004
Posts: > 500
From: Mumbai, India
PM |
looks real handy..how much does it cost?
 t610 > k700i > p800 > p900 > p910 > k750i > I-mate Jam > Blokia 6681 > HTC Prophet > HTC Wizard & Nokia N73 > E71 > BB 9000 > HTC Desire > Samsung Galaxy S > Samsung Galaxy S II & the Motorola Xoom <br /> Still Shiny but not so n |
axxxr
Joined: Mar 21, 2003
Posts: > 500
From: Londinium
PM, WWW
|

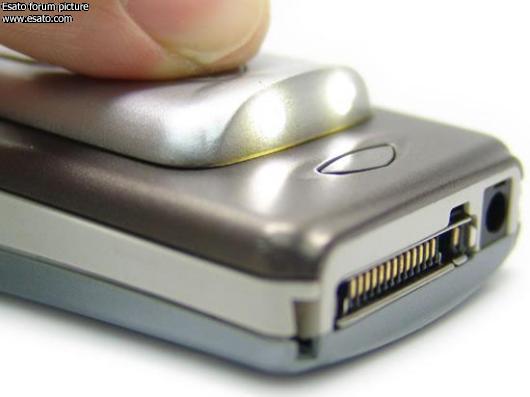

Theirs also this available from brando Brando Mobile Torch LED is a thin attachment stick to the back of your mobile phone. It has 2 LED lights in front to give sufficient light whenever you need.The addon uses its own power source and the battery lifetime is about 20 hours
[addsig] |
Aikonoklast
Joined: Feb 02, 2002
Posts: 363
PM |
Quote:
|
On 2005-05-02 10:44:00, Avatar235 wrote:
Looks nice!
If i could hazzard a guess i'd say the connector is an OEM charger port, and where the light emits was where the cable was. If its home made, can u supply us with schematics/plans?
|
|
Very keen! Yep I salvaged the connector from a car charger.
The LED is made by LUXEON (www.luxeon.com). These are the brightest LEDs you can find. Much much brighter than traditional "super bright" LEDs.
I simply used a 10ohm resistor for current limiting. Due to size constraints I couldn't use a large heatsink which would've allowed the higher currents for much brighter light. For thermal management I used an L-shaped aluminum with one side epoxy bonded to the plastic housing and the other thermally attached to the luxeon's back slug via Thermagon T-grease 2500 (thermal grease). The plastic housing does heat up a bit when used continuously.
I also attached a collimator lens to focus the beam:
It's \\ NOT /// !!! Look at it sideways ! |
EastCoastStar
Joined: Dec 07, 2003
Posts: > 500
From: orlando fl US
PM |
you made this??
Its good to be back! |
Aikonoklast
Joined: Feb 02, 2002
Posts: 363
PM |
Yep I made it just today.
Here's the comparison with a penlight incandescent bulb flashlight (left) and my luxeon attachment (right):
The luxeon is so bright it makes the text unreadable...
_________________
It's \ NOT /// !!! Look at it sideways !
[ This Message was edited by: Aikonoklast on 2005-05-02 14:41 ] |
EastCoastStar
Joined: Dec 07, 2003
Posts: > 500
From: orlando fl US
PM |
i am very very very impressed!!!!
its 100% safe and everything??
sell this idea! lol make some $$ off it
Its good to be back! |
Residentevil
Joined: Feb 29, 2004
Posts: > 500
From: Raccoon City, USA
PM, WWW
|
Man that is very bright.
Tough times don't last, tough people do!
Free Tibet |
Aikonoklast
Joined: Feb 02, 2002
Posts: 363
PM |
Very safe. It only draws about 80mA from your phone.
It's \\ NOT /// !!! Look at it sideways ! |
EastCoastStar
Joined: Dec 07, 2003
Posts: > 500
From: orlando fl US
PM |
very very very good!! i like it
Its good to be back! |
Wirral Bagpuss
Joined: Feb 09, 2004
Posts: 246
From: Liverpool, UK
PM |
Very handy for finding your keys to your front door in the winter!! (we have all had this joy!! Not!  ) |
EastCoastStar
Joined: Dec 07, 2003
Posts: > 500
From: orlando fl US
PM |
too bad it wont work with the new SEs coming out...
