| Author |
My Very Extra Special T630 |
gregface
Joined: Mar 05, 2004
Posts: > 500
PM |
I have had my t630 for about 4 months, bought second hand not turning on for £20 off a mate, up and working within days.
Anyway, over the months i have been modifying it this way and that. Firstly I managed to get a black t630 cover and change the inner housing part so that it was all white (got rid of that grey that i was unsure of). Nextly I upgraded the firmware to the latest myself using my terminator dongle. Then I found a file which claimed to change sms tones, so i installed that , hey presto new sms tones such as nokia and pacman!!! =D
The final mod which i completed (for now lets say) is my favourite, using an LED from an iPod, i opened up my phone and wired the LED up so that it would flash when the vibrator worked. I Then stuck the LED under the volume buttons.
THE RESULT IS PERFECT. one LED is enough to light both the + and - buttons up (i plan to put another LED under the cam button but will leave that for another rainy day).
The LED mod took the longest, about 2 hours in all, the wires i used are so small. Ive posted some pic of the exterior, none of the interior since when i open my phone now im at risk of destroying all my work.
All i no is that this will stop me from buying that k700 ive been dreaming of. For a while anyway.
Pics Arnt seeming to be working atm.
heres a link
http://putfile.com/pic.php?pic=4/10008133731.jpg&s=x2
[ This Message was edited by: gregface on 2005-04-11 14:26 ]
[ This Message was edited by: gregface on 2005-04-12 11:15 ] |
|
|
k4m!k4ze
Joined: Oct 02, 2004
Posts: > 500
From: CBE
PM |
how about some pics of the LED's in action ?
edit : ignore this, just posted this as you put the link for the pics
_________________
If you're in a vehicle going at the speed of light, what happens when you turn on the headlights ?
[ This Message was edited by: k4m!k4ze on 2005-04-11 14:28 ] |
gregface
Joined: Mar 05, 2004
Posts: > 500
PM |
yeh, the uploading didnt work, but theres a link to a shot of the LED in action.
i think it will be easier to add a secod LED under the cam button, the only trouble is there a bugger to solder (so small)
plus getting the wires to avoid each other took a lot of effort, i thought i had done it only to find they prevented the speaker working.
took about half an hour to put together in all, however i can just add LEDs in paralle with the initial one hopefully. |
marran
Joined: Sep 26, 2004
Posts: 272
From: stockholm, sweden
PM |
Do u have any more pics. ?
where did u find the file to change sms tone?
[ This Message was edited by: marran on 2005-04-11 14:48 ] |
govigov
Joined: Jul 30, 2004
Posts: > 500
From: Back home - Cochin
PM |
Quote:
|
On 2005-04-11 15:47:42, marran wrote:
where did u find the file to change sms tone?
|
|
off topic, but stilll www.setool.net . now dont threadjack. if you have doubts, Create a new thread
@greg, yup that looks good.  AWESOME even hey use, wax to avoid the wires touching. can you post a pic when you open up the phone? because i wud very much like to know how you did that.
|
Qoastro
Joined: Feb 15, 2005
Posts: 447
From: Sweden
PM |
Man! That's cool! |
gregface
Joined: Mar 05, 2004
Posts: > 500
PM |
thanks guys
www.gorden.de/free
download the t610_sms_gdfs file v2 is better than v1 although much the same.
u need to use seTool original to flash the file using a terminator dongle.

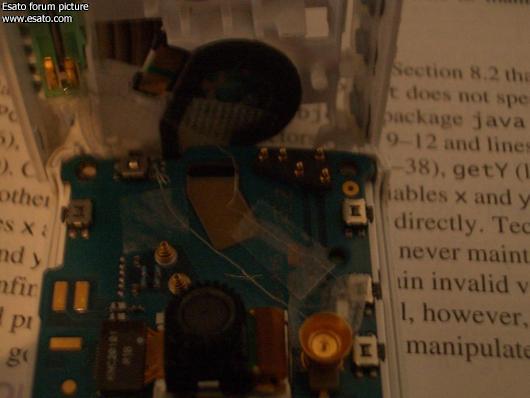

avoiding the wires touching was the hardest, i used thick clear sellotape. Took the phone apart again, but its a bitch to manouver as the wires are tight, i have second LED ready to install but connecting the wires togther seems a little tricky , but i really wanna get it full working and be more happy.
just uploaded a smal video too.
http://www.putfile.com/media.php?n=LED-t630-002
|
Chazzer3
Joined: Mar 23, 2004
Posts: > 500
From: Edinburgh, UK
PM, WWW
|
Incredible job man, well done, really impresive!
Chazzer -
|
gregface
Joined: Mar 05, 2004
Posts: > 500
PM |
Right, just finsihed installing the second LED, boy are things good now.
It took all the time in the world, for a while my keypad froze, i had to cut a bit off my housing.
but i did it!!!

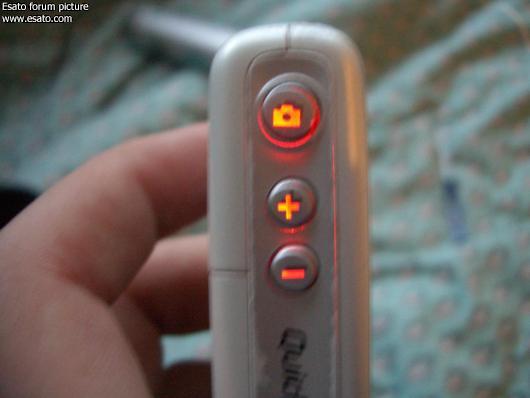

i now have 2 LEDs connected in parallel with vibrator 1 lighting up the + and - buttons another for the cam button.
results are PERFECT.
uploaded more pics and another vid
pic
http://putfile.com/pic.php?pic=4/10015144177.jpg&s=x2
and vid
http://www.putfile.com/media.php?n=LED-t630 |
Ing. FijoK
Joined: Sep 11, 2004
Posts: > 500
From: Prague, Czech Republic
PM, WWW
|
nice work gregface!
This message was not posted
I saw the man who can change my destiny... He stood in the mirror. |
gregface
Joined: Mar 05, 2004
Posts: > 500
PM |
thanks man.
i think im gonna keep this phone forever now, unless it breaks.
i feel that the battery will drain much quicker now tho lol
|
Wickedwulf
Joined: Feb 23, 2005
Posts: 32
PM, WWW
|
I've downloaded the SMS program.. but my computer won't upload it to my phone.
..@== Wickedwulf ==@..  T630 K700I K500I |
djpowelly
Joined: Jun 07, 2003
Posts: > 500
From: The UK!
PM |
You need a terminator dongle
 djpowelly |
sanjcher
Joined: Feb 26, 2005
Posts: 43
PM |
wow cool mod man. wish i could do that myself.
|
otokx
Joined: Mar 21, 2005
Posts: 14
From: Port Harcourt, Nigeria
PM |
you are very brave to be experinmenting with your handset like that. |
|
|
