| Author |
Guide: Disassembling the T230 |
pickknic
Joined: Feb 01, 2005
Posts: 3
PM |
Hi all. Tonight I searched and the web for a guide to open up the Sony Ericsson T230, but I found nothing. After a lot of messing around, I finally stumbled across the magic trick, and wanted to share it with you all. (either nobody has posted this before, or at some time it got deleted - I honestly couldn't find it here on Esata)
## NOTE: Once all the screws have come off, the phone pulls apart without effort - do NOT force the case open.
You'll need a T6 Torx screwdriver (I think that's what they're called? The 6-pointed head screwdrive that most phones need, anyway).
There are 6 screw you need to remove.
(1) Remove the back battery panel

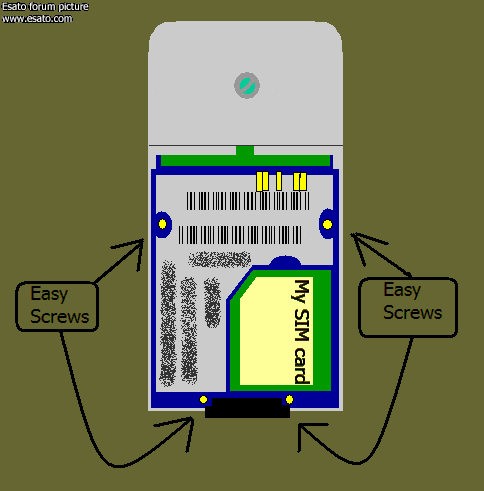

(2) There are 4 screws in plain sight - unscrew them.

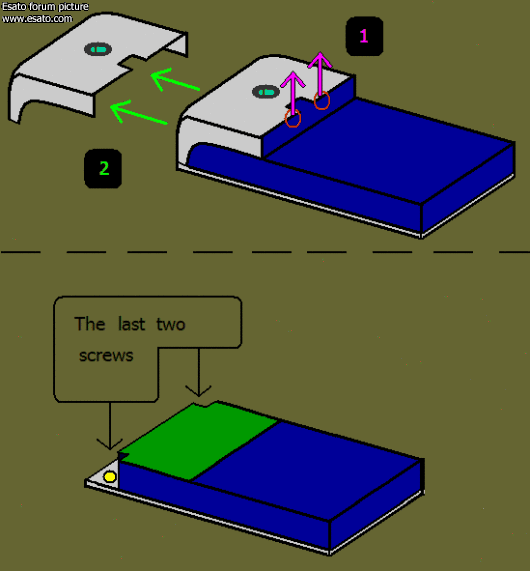

(3) Use a FlatHead screwdriver (or something similar) for this step. Place the phone face-down on a table (so your SIM card is facing you). See the 5 battery terminal contacts? Just above those contacts, there is a "notch" in the silver plastic. Using the screwdriver, you need to raise the silver plastic (where the notch is) about 1-2mm (that's about 1/16th of an inch in the old scale), and then slide that silver plastic back and off the case.
(4) Unscrew the last 2 screws that you can see now.
See, it's pretty simple once you know the trick, but I imagine a few people have almost snapped their PCBs not realising there were still 2 hidden screws.
For people who are using the "search" function, I want to just throw in some keywords: disassemble dissassemble open t230 dust remove case |
|
|
pickknic
Joined: Feb 01, 2005
Posts: 3
PM |
NOTE: Pay attention to the COLOUR of the screws, and where they belong. They're different sizes, so when you re-assemble the phone, you don't want to mix them up. |
whizkidd
Joined: May 14, 2004
Posts: > 500
From: India
PM, WWW
|
Hey thanks a million dude! I was looking for this!
This message was posted from a T230 |
govigov
Joined: Jul 30, 2004
Posts: > 500
From: Back home - Cochin
PM |
Good one. Thanks a lot!
This message was posted from a K500 |
Hmyzak_SE
Joined: Dec 08, 2004
Posts: 177
PM, WWW
|
Thanks for this....but I dont understand point 3), could you write it once more please? |
N-er-G
Joined: Jul 11, 2004
Posts: 329
From: Romania
PM |
Thnx, I was looking for this to!
|
whizkidd
Joined: May 14, 2004
Posts: > 500
From: India
PM, WWW
|
I'm frustrated at the dust gathering problem of the T230 screen. This guide will help me a lot!
This message was posted from a T230 |
Rhan
Joined: Oct 05, 2004
Posts: 1
From: Philippines
PM |
at last................. for so long i have been looking for this tip
i can now oopen my phone and clean it up. thanx a lot!!!!!!!!!!!
esato Rulezzz
Hello Philippines!, Hi, Sony Ericsson! |
grenck
Joined: Mar 09, 2005
Posts: 1
PM |
Sorry for bumping this month-old thread, but, like Hmyzak_SE, I am having a problem with the little notch in step 3. I have a T237, but from reading around on these forums, I believe it should be physically the same.
I have located the notch on my phone, but I can't seem to lift up the back cover to slide it back. I am having a problem with a few stuck keys. |
kundi11
Joined: Mar 15, 2005
Posts: 3
PM |
very helpful, i have some info on data transfer on T230 check the link
http://www.esato.com/board/viewtopic.php?topic=86897
|
lubb
Joined: Jun 08, 2004
Posts: 1
PM |
thanks a lot for sharing this really valuable info.i finally found the solution!!! |
Poppa Joe
Joined: May 15, 2005
Posts: 1
From: The Netherlands
PM |
Hi Pickknic,
Thanks for this magic trick. You made my day!!!
I was kinda desperate of seeing my display become more and more a dustbag each day. Now i've got a clear display again. It was very easy to do and it saved me a lot of money. Thanks again. |
mrao
Joined: Nov 11, 2004
Posts: > 500
From: Mumbai, India
PM |
