| Author |
I want to create MY sony-ericsson cable |
Slash
Joined: Oct 18, 2004
Posts: 11
PM |
It's possible to find me cable connection to create MY sony-ericsson cable
USB cable or COM cable
THANKS  |
|
|
ESTOR
Joined: Apr 20, 2002
Posts: > 500
From: Singapore
PM |
Yes, circuit schemes have been posted before. Problem is how you can get the chip. It's easier to say, alter a data cable to unlocking cable and vice versa. |
Slash
Joined: Oct 18, 2004
Posts: 11
PM |
where the shema is posted ?? pls find me a link or pls repost , thanks |
Ayush
Joined: Sep 12, 2003
Posts: > 500
From: Hyderabad, india
PM |
shema ?
Ayush  |
Johnex
Joined: Nov 26, 2002
Posts: > 500
From: Stockholm/Sweden
PM, WWW
|
You know, the circuit diagram for the cable....
This message was posted from a Z1010 |
Slash
Joined: Oct 18, 2004
Posts: 11
PM |
Quote:
|
On 2004-10-21 09:28:51, Ayush wrote:
shema ?
|
|
Yes, circuit diagram  |
shyam335
Joined: May 25, 2004
Posts: > 500
From: 127.0.0.1
PM |
Ive been looking for the circut for ages,give links plz
This message was posted from a T610 |
Johnex
Joined: Nov 26, 2002
Posts: > 500
From: Stockholm/Sweden
PM, WWW
|
I'll look for it. :-)
This message was posted from a Z1010 |
rekan
Joined: Oct 22, 2004
Posts: 5
From: Sweden
PM |

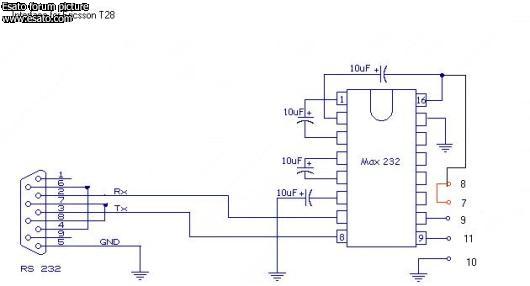

check mobile.box.sk and look for t28 cable, I made one today with information on this board.
look on the connector to the phone. it looks like
|12345678|9|1011|
take away pin 4, 5 ,6 and 7
then change the wire 4->7
5->7
and put an connection between 9 and 11 |
Slash
Joined: Oct 18, 2004
Posts: 11
PM |
Quote:
|
On 2004-10-22 19:28:42, rekan wrote:
take away pin 4, 5 ,6 and 7
then change the wire 4->7
5->7
and put an connection between 9 and 11
|
|
I not understand this change ?? pls can rexplain me or re-attache pic with the right connection
this cable work with all sony ericsson phones for download and upload operation ?? where is the soft to use with this cable ??
thanks
 |
rekan
Joined: Oct 22, 2004
Posts: 5
From: Sweden
PM |
sorry for to poor information. i made an unlock cable from an data cable i got cheap from the store. i changed the pin , 4->6 and 5->7
unlock cable uses pin 6 and 7 and an datacable for sending pictures/music etc uses pin 4 and 5
http://codedata.box.sk/mobile.box.sk/ryl3228c.zip
[ This Message was edited by: rekan on 2004-10-24 19:28 ] |
Slash
Joined: Oct 18, 2004
Posts: 11
PM |
excuse my inorance, but I wahnt to echange music and image (data) betowen my T230 and other sony-ericsson phones
what cable I create ? your cable can go this ??
In the two pic the pin 4 and 5 are not in use ??
thanks for all |
ESTOR
Joined: Apr 20, 2002
Posts: > 500
From: Singapore
PM |
You need a data cable. But with T230, you can only send pictures, ringtons etc. TO the phone, not from phone to PC. And it's easier to just buy a no-name data cable. I don't think you can buy 1 chip needed for the cable for cheap anywhere. |
|
|
