Take the T610 completely apart :) |
Merovingian
Joined: Aug 29, 2003
Posts: > 500
From: Norway
PM |
Hi guys.. Since the server with the pics to the first guide on how to take the t610 apart crashed, I made a new one.. hope it's good... !!! USE THIS GUIDE ON YOUR OWN RISK. I'M NOT RESPONSIBLE FOR ANY DAMAGED PHONES!!!
1: Remove the battery cover

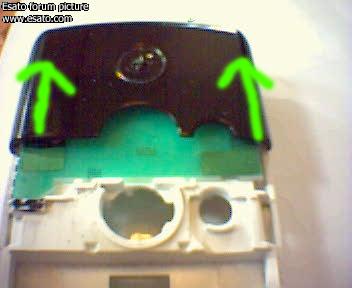

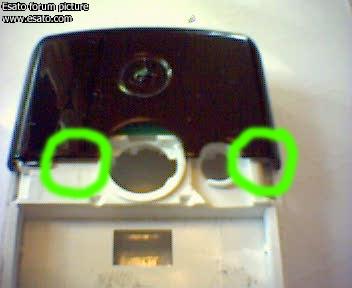

2: Lift here and here with your fingernails or something that's made out of hard plast.... I don't use metal things because I don't wanna damage the cover:

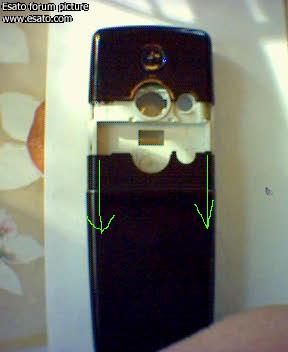

3: Push the cover away from you:

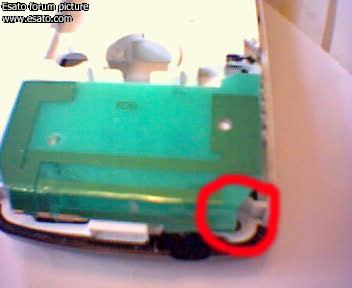

4: Lift up here carefully till you hear a little click and then simply remove the green part ( antenna), but be careful

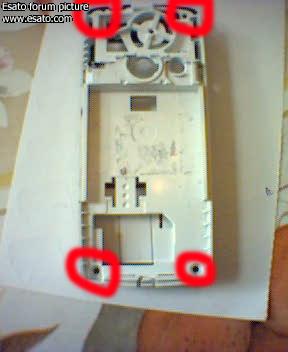

5: Remove the 4 torx screws.. For this you'll need an T6 screwdriver:

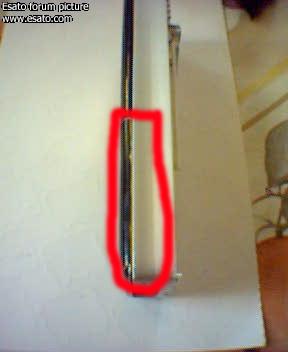

6: Now use your fingernails or a thin plastic thing and slide it in between the cover and the white part.. Move it all the way up untill the cover goes off.. Be careful and don't stick it to far inside. When the cover is off on one side just take it carefully of:

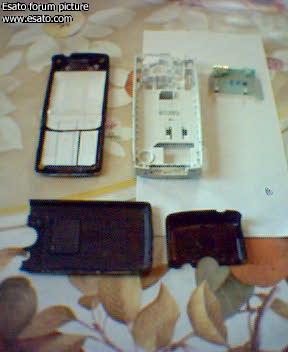

7: There you go...:  The T610 is now taken apart... Just reverse the whole process to assemble it again... Hope this helped, and excuse the bad quality of the pics
_________________
for Norwegian users: http://www.freewebs.com/ocean[....]%20Arne%20Går%20Mot%20Døra.mp3
[ This Message was edited by: Merovingian on 2004-05-24 16:40 ]
[ This Message was edited by: Merovingian on 2004-05-24 16:51 ] |
|
|
Sammy_boy
Joined: Mar 31, 2004
Posts: > 500
From: Staffordshire, United Kingdom
PM, WWW
|
Thanks for that, I'm just about to recieve a T610 that will need either it's screen plugging back in or a replacement one buying, and I'd forgotton how to take the black aerial cover off!
One other thing as well, make sure you don't get any fingermarks on the inside of the front of the facia - or you'll be taking the whole thing apart again to get rid of the offending fingermark!
"All it takes for evil to flourish is for good men to do nothing" - Edmund Burke
|
Merovingian
Joined: Aug 29, 2003
Posts: > 500
From: Norway
PM |
@sammy: yeah, I know.. got fingermarks on the inside ones and f***ed upp the whole screen
|
MonkeyMann
Joined: Oct 17, 2004
Posts: 1
PM |
|
folling182
Joined: Oct 14, 2003
Posts: 368
From: nottingham>girona[Spain]>???
PM |
Nice tutorial merovingian!
[ This Message was edited by: folling182 on 2004-10-17 14:58 ] |
folling182
Joined: Oct 14, 2003
Posts: 368
From: nottingham>girona[Spain]>???
PM |

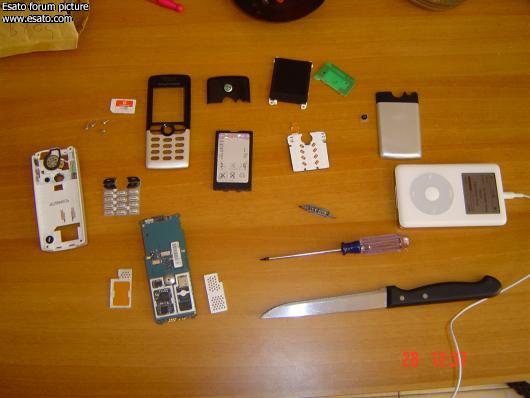

here a little addition to the thread.
I did this on my one month holiday to italy, I had done it loads of times before, but sadly this time the microphone died  so i had to get a new k700 .
Sorry about the size of the picture
Could somebody please confirm that the little rubber thing next to where the sim card goes, on the "skeleton" (white piece) of the phone, is actually the microphone.
_________________
Rape is no laughing matter..unless you're raping a clown.
[ This Message was edited by: folling182 on 2004-10-17 15:01 ] |
masterp
Joined: May 28, 2004
Posts: 250
From: nederland
PM |
@folling182 , the mic is in the left bottom , the round rubber thingy like you said
proud owner of a   800i , 200i , p910i + route 66 mobile 2006 and a hbh-600 , gave my k800i to my girl ( enjoying my new WII and DS lite  ) |
knight4led
Joined: May 27, 2004
Posts: > 500
From: Califonia, USA
PM |
wow, this tutorial would have been really useful about 6 or months ago when I wanted ro repair my damaged T616. I never quite figured out how to get that antenna cover off though.
|
goldenface
Joined: Dec 17, 2003
Posts: > 500
From: Liverpool City Centre
PM |
I always thought that little thing was a battery?
|
thestash_16
Joined: Jun 09, 2005
Posts: 1
PM |
dude the pics arnt comin up. my on button is jammed down and i cant get it to turn on |
iruoy
Joined: Jun 24, 2005
Posts: 1
PM |
Wow thanks! My mic was f*cked up. The inside was really dusty and after some blowing en pushing with a screwdriver I managed to get rid of most of the dust. Think the dust got between the mic and the two circles thing, so the signal was bad. Now I'm back up! |
jenbones
Joined: Feb 19, 2005
Posts: > 500
From: london
PM |
Nice guide!!
 1500+ Posts |
t105crazzy
Joined: Aug 02, 2004
Posts: 19
From: Botswana, Africa
PM |
Thanx 4 that mate.pretty interesting guide
an for those of you struggling with the pic quality of the guide heres another one.
http://www.uselessinfo.pwp.blueyonder.co.uk/dismantlet610.htm
_________________
 T28s T105 T610
[ This Message was edited by: t105crazzy on 2005-07-11 10:29 ] |
max_wedge
Joined: Aug 29, 2004
Posts: > 500
From: Australia
PM, WWW
|

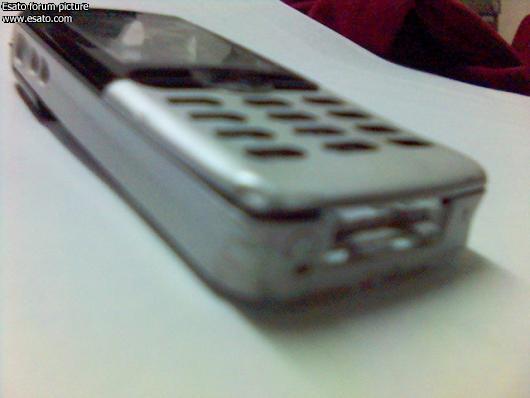

here's my t610
after high speed encounter with a wall (insides working in a new case) |
baja462
Joined: Jun 03, 2004
Posts: 94
From: Sydney, Australia
PM, WWW
|
ncie tututorial, but it's never a good idea to take apart your phone unless you know what ur doing, there are always things attached to the outside cover when it's not supposed to be cahnged
