Help.K850 hang on 2 step! |
sincan
Joined: Sep 06, 2008
Posts: 315
From: Surakarta Hadiningrat
PM |
Hi...All,
Have problem with my K850, it's hang when i press menu and next step. keypad light up but screen blank, already reflash 3time but same result. Is my LCD broken?
K800>K810 Allure Brown with 2gb sony M2+ HPM 77
K850 Quicksilver black with 1gb sandisk M2+ HPM 64
Shakira with GingerDX v010 | X8Gesture v007 | X8Overclock v004 | X8Undervolt v001 |
|
|
tranced
Joined: Jan 19, 2006
Posts: > 500
From: Santo Domingo, wonDeRland
PM |
Try to make a phone call. If it makes it, then you can start thinking your lcd is going wild.
|
markphil
Joined: Jul 19, 2008
Posts: 435
From: Philippines :D
PM |
Buy a new  Phones
I own K550i Pearl White R8BA024 08W03 and K810i Golden Ivory R8BE001 09W03 |
sincan
Joined: Sep 06, 2008
Posts: 315
From: Surakarta Hadiningrat
PM |
Hmmm...i love this phone, Tranced: I think is ok, it's light up when received calls. When go to menu still ok, lcd blank we want to next menu. Keypad light up, after few second keypad off and LCD light up again. So confuse.....  ....it's touch pad wire problem?
[ This Message was edited by: sincan on 2010-03-02 03:19 ] K800>K810 Allure Brown with 2gb sony M2+ HPM 77
K850 Quicksilver black with 1gb sandisk M2+ HPM 64
Shakira with GingerDX v010 | X8Gesture v007 | X8Overclock v004 | X8Undervolt v001 |
tranced
Joined: Jan 19, 2006
Posts: > 500
From: Santo Domingo, wonDeRland
PM |
Hhhhmmmmm. You said you've flashed the phone three times already. Do you use the same MAIN or FS? Try new ones.
|
sincan
Joined: Sep 06, 2008
Posts: 315
From: Surakarta Hadiningrat
PM |
same Fs and main, please read prev thread i already edited.
K800>K810 Allure Brown with 2gb sony M2+ HPM 77
K850 Quicksilver black with 1gb sandisk M2+ HPM 64
Shakira with GingerDX v010 | X8Gesture v007 | X8Overclock v004 | X8Undervolt v001 |
mallaccra
Joined: Oct 01, 2007
Posts: > 500
PM |
go to service menu, test the main display and led/illumination...
mallaccra®  Xperia Z2 |D6503|4.4.2| Xperia Z1 |C6903|4.4.2| Xperia Z |C6603|4.2.2| Xperia ZL |C6502|4.2.2| Xperia TX |LT29i|4.1.2| Xperia Ion |LT28h|4.0.4| Xperia P |LT22i|4.1.2| Xperia J |ST26i|4.1.2| Aino |
sincan
Joined: Sep 06, 2008
Posts: 315
From: Surakarta Hadiningrat
PM |
On 2010-03-02 07:09:13, mallaccra wrote:
go to service menu, test the main display and led/illumination...
Already done, display ok and led ok. Screen blank when press down, after few second keypad light off and when i touch any key screen light up again. So it's become blank when i press down.
K800>K810 Allure Brown with 2gb sony M2+ HPM 77
K850 Quicksilver black with 1gb sandisk M2+ HPM 64
Shakira with GingerDX v010 | X8Gesture v007 | X8Overclock v004 | X8Undervolt v001 |
mallaccra
Joined: Oct 01, 2007
Posts: > 500
PM |
it seems that the lcd and keypad is ok....
@edit
#1. remove memory card, use a dummy sim, use only stock drivers, switch on the phone, check if the screen lights up on each button pressed. sometimes faulty external hardware and modded driver may caused blank screen
#2. connect your phone to mpe and use the mpe phone keypad to press all the buttons, if on all pressed the screen lights up then the hardware is not at fault.
#3. open up your phone, check all the flex cable/connectors, clean all dust with a brush or an air blower not cloth and make sure the keypad membrane and the lcd sits in its place. finally
#4. if all the above doesn't work, replace the lcd screen
[ This Message was edited by: mallaccra on 2010-03-02 14:25 ] mallaccra® Xperia Z2 |D6503|4.4.2| Xperia Z1 |C6903|4.4.2| Xperia Z |C6603|4.2.2| Xperia ZL |C6502|4.2.2| Xperia TX |LT29i|4.1.2| Xperia Ion |LT28h|4.0.4| Xperia P |LT22i|4.1.2| Xperia J |ST26i|4.1.2| Aino |
sincan
Joined: Sep 06, 2008
Posts: 315
From: Surakarta Hadiningrat
PM |
On 2010-03-02 15:00:45, mallaccra wrote:
it seems that the lcd and keypad is ok....
@edit
#1. remove memory card, use a dummy sim, use only stock drivers, switch on the phone, check if the screen lights up on each button pressed. sometimes faulty external hardware and modded driver may caused blank screen
#2. connect your phone to mpe and use the mpe phone keypad to press all the buttons, if on all pressed the screen lights up then the hardware is not at fault.
#3. open up your phone, check all the flex cable/connectors, clean all dust with a brush or an air blower not cloth and make sure the keypad membrane and the lcd sits in its place. finally
#4. if all the above doesn't work, replace the lcd screen
[ This Message was edited by: mallaccra on 2010-03-02 14:25 ]
Thanks mate, i think the problem is no 3. Will try to open it.
K800>K810 Allure Brown with 2gb sony M2+ HPM 77
K850 Quicksilver black with 1gb sandisk M2+ HPM 64
Shakira with GingerDX v010 | X8Gesture v007 | X8Overclock v004 | X8Undervolt v001 |
Cold Fusion
Joined: Nov 21, 2006
Posts: > 500
PM |
hey mate
i had the same prob with my k850 too. It's the LCD ribbon that runs under the keypad. If u press the a button on the keypad the LCD goes black, after a while when the keypad light is off, the LCD lights up again. I had my LCD replaced coz it didnt lit up anymore. Urs is still good so i think u wanna put something under the ribbon so it doesnt conflicts with other parts.
p.s sorry for my english
  I BEING DIFFERENT Previous Username: Ricky_bad420 |
sincan
Joined: Sep 06, 2008
Posts: 315
From: Surakarta Hadiningrat
PM |
Ok, cotton is the best way i think. Just hard to find screwdriver for it's screw, so small.
K800>K810 Allure Brown with 2gb sony M2+ HPM 77
K850 Quicksilver black with 1gb sandisk M2+ HPM 64
Shakira with GingerDX v010 | X8Gesture v007 | X8Overclock v004 | X8Undervolt v001 |
sincan
Joined: Sep 06, 2008
Posts: 315
From: Surakarta Hadiningrat
PM |
after put cotton under ribbon,my lcd still blank. which part connected lcd with ribbon?
K800>K810 Allure Brown with 2gb sony M2+ HPM 77
K850 Quicksilver black with 1gb sandisk M2+ HPM 64
Shakira with GingerDX v010 | X8Gesture v007 | X8Overclock v004 | X8Undervolt v001 |
sincan
Joined: Sep 06, 2008
Posts: 315
From: Surakarta Hadiningrat
PM |
Anyone..?
K800>K810 Allure Brown with 2gb sony M2+ HPM 77
K850 Quicksilver black with 1gb sandisk M2+ HPM 64
Shakira with GingerDX v010 | X8Gesture v007 | X8Overclock v004 | X8Undervolt v001 |
mallaccra
Joined: Oct 01, 2007
Posts: > 500
PM |

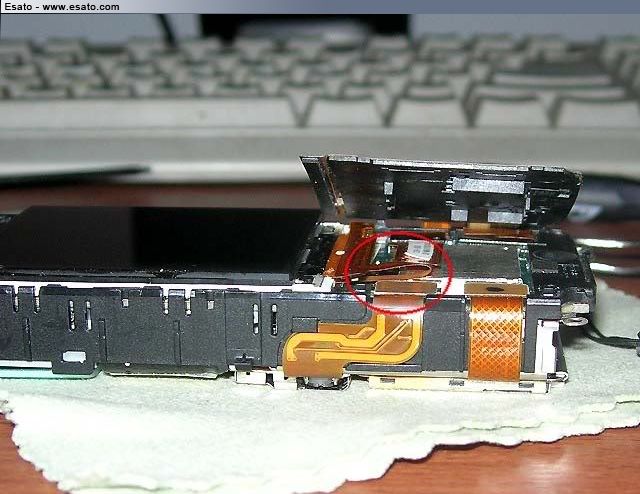

have a look here
mallaccra® Xperia Z2 |D6503|4.4.2| Xperia Z1 |C6903|4.4.2| Xperia Z |C6603|4.2.2| Xperia ZL |C6502|4.2.2| Xperia TX |LT29i|4.1.2| Xperia Ion |LT28h|4.0.4| Xperia P |LT22i|4.1.2| Xperia J |ST26i|4.1.2| Aino |
|
|
