| Author |
C510 CamDriver [M] Manual Mode v2.37 |
SEC5100
Joined: Oct 13, 2009
Posts: 68
PM |
=======================================
Software: [M] Manual Mode
Version: 2.37
Apply to: Sony Ericsson C510
Date: 2009/12/22
=======================================
sample:
Howto:

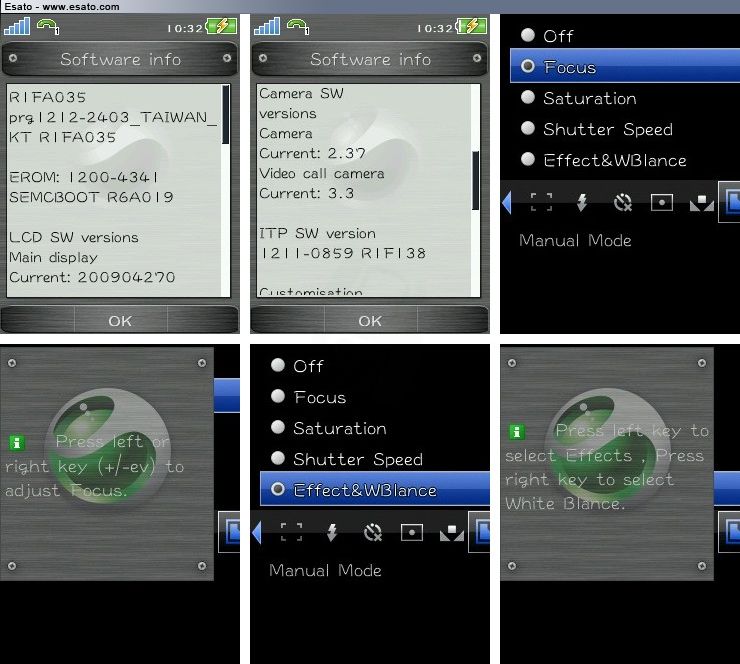

Manual Focus:
Set camera menu [FOCUS] to [INFINITE],
Go to [Manual Mode] in camera menu Select [Focus].
Use right or left key (+/-ev) to change lens position.
Manual Shutter Speed
If you want 1s or 2s speed, camera menu [FOCUS] plese set to [INFINITE]
or change scene to twilight or landscape..
Change Log..
v2.37
*Add FORCED FLASH, If you set White Blance to AUTO, The flash are AUTO, set the White Blance to other... then will FORCED FLASH.
*Add Fast Shutter Speed on AUTO scenes or LANDSCAPE scenes,
* EV-2.0 : 1/6400 sec
* EV-1.7 : 1/3200 sec
* EV-1.3 : 1/2000 sec
* EV-1.0 : 1/1250 sec
* EV-0.7 : 1/800 sec
* EV-0.3 : 1/400 sec
* EV 0.0 : AUTO
* EV+0.3 : 1/200 sec
* EV+0.7 : 1/100 sec
* EV+1.0 : 1/50 sec
* EV+1.3 : 1/20 sec
* EV+1.7 : 1/10 sec
* EV+2.0 : 1/5 sec
Twilight mode still have slow shutter speed like 2sec
*Fix Landscape pict have some yellowish bug.
*Fix infinity focus (example: landscape mode, night mode) when the focus segment to reduce the banner photo simulation of the situation around the image sharper.
*low the landscape sharpness value, and low the noise.
v2.36a
*Fix the "Saturation reset" BUG
ex: If change scene to Landscape, default SATURATION set to "5", when you take a photo,
the next photo will be reset to 0 ,
or when you manaual SATURATION to MAX(+2.0) the next photo will be reset to 0.
BUG FIXED!
v2.36
Effects change to Manual Mode
Off is EV
Black & White change to Manual Focus
Negative change to Manual Contrast
Sepia change to Manual Saturation
Solarise change to Manual Shutter Speed
USE +/-EV to change value...
Shutter speed
* EV-2.0 :1/10s
* EV-1.7 : 1/8s
* EV-1.3 : 1/6s
* EV-1.0 : 1/5s
* EV-0.7 : 1/4s
* EV-0.3 : 1/3s
* EV 0.0 : AUTO
* EV+0.3 : 1/2s
* EV+0.7 : 0.6s
* EV+1.0 : 0.8s
* EV+1.3 : 1s
* EV+1.7 : 1.33s
* EV+2.0 : 2s
Manual Saturation(E0 - minimum (B / W), 20 - maximum, standard - 00.)
* EV-2.0 : E2
* EV-1.7 : E7
* EV-1.3 : EC
* EV-1.0 : F1
* EV-0.7 : F6
* EV-0.3 : FB
* EV 0.0 : AUTO(00)
* EV+0.3 : 05
* EV+0.7 : 0A
* EV+1.0 : 0F
* EV+1.3 : 14
* EV+1.7 : 19
* EV+2.0 : 1E
and many scene color to correct.
Download [M] Manual Mode v2.37(Date:2009/12/22)
R1FA035 en.lng(IF YOU ARE NOT R1FA035 , PLESE DON'T USE THE FILES)(Date:2009/12/22)
R1HA035 en.lng(IF YOU ARE NOT R1HA035 , PLESE DON'T USE THE FILES)(Date:2009/12/30)
Instructions:
use A2 tool put the camdriver0.dat into
IFS/settings/camera/
and
en.lng into
tpa/preset/system/language/
(ZT.LNG for TAIWAN ONLY)
welcome to trial and bug report...
thank you..
if you want to beta test... this my camdriver development snapshots
[M] Manual Mode Camdriver Snapshots
[ This Message was edited by: SEC5100 on 2009-12-30 02:28 ] |
|
|
ds934118
Joined: Apr 04, 2009
Posts: 43
PM |
哈
SEC5100大在這裡看到你，用本國語言打打招呼
Ha
Your camdriver is so good ,I think some C510uesr will thank you.
I speak English poorly
Don't be laugh  |
tranced
Joined: Jan 19, 2006
Posts: > 500
From: Santo Domingo, wonDeRland
PM |
Yay gonna give it a go later. I was wanting a camdriver for mine too
Thanks!
|
SEC5100
Joined: Oct 13, 2009
Posts: 68
PM |
@tranced
some .lng update,
hope your test my driver...
[ This Message was edited by: SEC5100 on 2009-10-30 01:57 ] |
tranced
Joined: Jan 19, 2006
Posts: > 500
From: Santo Domingo, wonDeRland
PM |
It's night here. I'll take some photos tonight and tomorrow i'll take the daylight's.
|
tranced
Joined: Jan 19, 2006
Posts: > 500
From: Santo Domingo, wonDeRland
PM |
Hi
Sorry I didn't post the pics as promised. As of now i'm taking pics and so far i've tried manual focus and manual saturation.
Pics will be uploaded by monday.
|
SEC5100
Joined: Oct 13, 2009
Posts: 68
PM |
@tranced
it's ok.... hope you like my driver...
and give me recommend |
tranced
Joined: Jan 19, 2006
Posts: > 500
From: Santo Domingo, wonDeRland
PM |
Ok, so far the driver has not crashed my phone.
It's given very good results during the day. But there's something that annoys me. If I set the manual focus to +2.0, take the pic and then go back to the view finder the focus goes back to 0.0. Althoug I just change the EV and it fixes again.
Another thing is: where are the effects?
And finally, did you change something today to the camdriver?
This was my feedback
|
SEC5100
Joined: Oct 13, 2009
Posts: 68
PM |
On 2009-10-31 17:13:00, tranced wrote:
1. If I set the manual focus to +2.0, take the pic and then go back to the view finder the focus goes back to 0.0. Althoug I just change the EV and it fixes again.
2. where are the effects?
3. did you change something today to the camdriver?
1: What is your Scenes?
When I use manual focus, I am goto Focus and set Infinite, and take pic go back view finder, focus is no goes back..
2: field not enough, I am change the effects to shutter speed,
if want effects, must delete contrast or saturation , you think contrast and saturation which one is important?
3: yes, the small bug fixed.. you can update driver again..
[ This Message was edited by: SEC5100 on 2009-10-31 18:17 ] |
tranced
Joined: Jan 19, 2006
Posts: > 500
From: Santo Domingo, wonDeRland
PM |
My scene Is set to auto. I think you are confused with Focus. Saturation is more important for me. Let's what other users say about it. Another thing, I cannot try the new camdriver as I don't have a computer until monday.
|
rain_jemmz
Joined: Oct 09, 2009
Posts: 6
PM |
hello.. im jemz fr0m philippines. Pls help me 0n h0w t0 use this cam driver. I als0 hav se c510 f0n and it has a p0or camera. Plz tel me h0w t0 d0 this i really need this t0 make my camera w0rk well.. d0 i need a c0mputer t0 dl0ad ths driver?thanks much guize
|
tranced
Joined: Jan 19, 2006
Posts: > 500
From: Santo Domingo, wonDeRland
PM |
@rain_jemmz: please use the 'o' and not the 0.
At the top of the Software forum. You will find a sticky thread with tutorials and mods, including how to upload files to your a2 phone.
|
SEC5100
Joined: Oct 13, 2009
Posts: 68
PM |
@tranced
change the scene to twilight , or goto [ menu ] set the [ Focus ] to [ Infinite ] for use Manual focus ...
if use scene auto, the focus is auto too... |
tranced
Joined: Jan 19, 2006
Posts: > 500
From: Santo Domingo, wonDeRland
PM |
Alright. I'll give it a go later. Thanks
|
tranced
Joined: Jan 19, 2006
Posts: > 500
From: Santo Domingo, wonDeRland
PM |
Hey
I've just set the focus to infinity and it works fine.
|
|
|
Posted: 2009-10-29 06:39
