| Author |
12v Charger C702 |
kokesh
Joined: Sep 04, 2005
Posts: 29
PM |
I got 12V car charger. I tried to charge phone through it, using standard data cable. Phone does show only information "You could use your phone from computer...", but doesn't seem to charge. Normally, when I charge, it has this little yellow flash on battery icon.
Any suggestions? Do I need second cable, just for charging?
[ This Message was edited by: kokesh on 2009-02-03 08:28 ] |
|
|
strizlow800
Joined: Aug 23, 2006
Posts: > 500
From: Macedonia, Skopje
PM |
Check if USB charging is disabled or enabled in the service menu >*<<*<*
|
kokesh
Joined: Sep 04, 2005
Posts: 29
PM |
It is on. Strange. I had no chance to try other device with this charger, but I guess since it starts some activity in the phone when I connect it with data cable, than it should be working. I will try it again today, I have a long drive today. |
Sammy_boy
Joined: Mar 31, 2004
Posts: > 500
From: Staffordshire, United Kingdom
PM, WWW
|
Is it a genuine car charger or a good quality non-gen one? I've had many a problem with a cheap or fake charger, including one exploding!
"All it takes for evil to flourish is for good men to do nothing" - Edmund Burke
|
glorfingal
Joined: Jun 10, 2006
Posts: > 500
From: Bristol,UK
PM |
Does the data cable charge when plugged into a pc/laptop ?
I had a data cable for my k800i that was just that - data only. The pins
for charging were not there !!!! |
kokesh
Joined: Sep 04, 2005
Posts: 29
PM |
I charge only by this cable via my PC, so it is not the problem. I've tried car charger today quite shortly, but it didn't seem to charge. I guess when there is no charging symbol, it's not really charging... |
yea g
Joined: Jul 02, 2008
Posts: > 500
From: New Zealand
PM, WWW
|
Its a usb charger and dcu-60 right?
|
altemyr
Joined: Jan 21, 2002
Posts: > 500
From: Stockholm, Sweden
PM |
The message "optimized charging" and the  logo only displays for a couple of seconds, after that, the only indication of that the phone is charging is a different battery indicator icon, with some kind of animation in it. |
kokesh
Joined: Sep 04, 2005
Posts: 29
PM |
Yes, my cable is DCU-60 (came with phone) + USB charger - car charger with one USB slot.
There is no animation, or logo on phone. That's the problem.
|
Anakunda
Joined: Dec 16, 2008
Posts: 63
From: Czech Republic
PM |
I guess the clue of your problem is the cable. Checkout the pins at fast port. If there are only 4 the cable is most probably usable only for 'intelligent charging', ie. from computer slot. To cowork with dumb car charger, you will need another USB cable with charging pin active (compare with fast port pin layout at pinouts.ru) |
aquared29
Joined: Dec 07, 2008
Posts: > 500
PM |
mine here when i plug my phone on usb thru pc, there is no indication that it charge the battery but after 2 hours connected to pc, i noticed that my phone battery has already full charge, means pc charge my phone battery, is it okay?
|
kokesh
Joined: Sep 04, 2005
Posts: 29
PM |

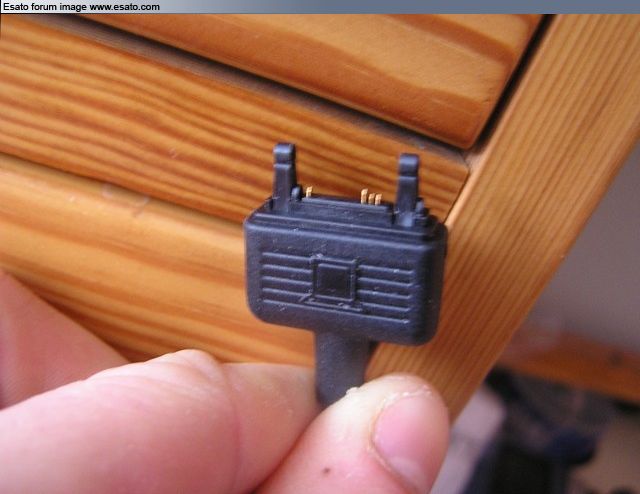

This is my cable: Only 4pins as you said. SO I guess I should get another cable. Is it so?
 |
Anakunda
Joined: Dec 16, 2008
Posts: 63
From: Czech Republic
PM |
Yeah, make sure current is supplied via pin 12
http://pinouts.ru/CellularPhones-P-W/se_k750i_pinout.shtml |
kokesh
Joined: Sep 04, 2005
Posts: 29
PM |
I guess the problem is solved (or rather "Will be solved") - I'll try to get the correct USB cable. It's pity that SE's original cable misses this pin. |
sale987
Joined: May 27, 2008
Posts: 372
From: Bosnia, Zivinice
PM, WWW
|
On 2009-02-03 10:40:36, strizlow800 wrote:
Check if USB charging is disabled or enabled in the service menu >*<<*<*
Do U know is there some difference when USB charging is turned on or off, is there some difference with speed when tranfering something. thx? |
|
|
