Mediaplayer skinning for K850/W910 - post your custom skins here |
max_wedge
Joined: Aug 29, 2004
Posts: > 500
From: Australia
PM, WWW
|
It's possible to skin the mediaplayer of unhacked A200 handsets (example K850, W910)
You can do this without resorting to XS++.
The basic principle is as follows:
1. Extract the W910 musaic.thm to a folder using tugzip or similiar.
You'll find an xml file and a bunch of images and a swf file. The swf file is the standby screen. The images are the various elements of the theme, including the mediaplayer background. The xml file is the file that specifies what images to use for which ui element.
2. Edit the xml file in notepad. Look for the lines starting with Media_ These lines dictate the media player colours and portrait and landscape background image.
The colours are hexadecimal: for example 0xffffff = white (ffffff is white in hexadecimal)
3. Create a portrait image 240 wide and 320 high and a landscape image 320 wide and 240 high (in pixels) and save them as png files.
5. In the xml file, replace the string portrait+AF8-backgroung+AF8-SEMC+AF8-Filtered.png with the name of your portrait image and replace landscape+AF8-backgroung+AF8-SEMC+AF8-Filtered.png with the name of your landscape image.
Change any of the colour elements you want to change. Save the file.
6. in the extracted folder, delete the original portrait and landscape images and copy in your own versions.
7. Add all the files to a tar archive and name it as skin.thm (or any name you like as long as it has .thm on the end)
Copy to the phone and test.
That's the basics but you can also edit the musaic theme in SE's theme creator before you extract it (step 1) to change colours and images of the theme to match your planned media player skin elements.
You can probably use the xml code in any existing theme you have by adding the relevant lines from the musaic example below (but I haven't actually tried this yet. I'm pretty sure it will work though)
Code:
|
<?xml version="1.0"?>
<!-- Created with Sony Ericsson Themes Creator -->
<Sony_Ericsson_theme version="4.6">
<Author_firstname value="Human Interface Design"/>
<Author_lastname value="Creative Design Center"/>
<Author_organisation value="Sony Ericsson"/>
<Background Color="0x3b2c19"/>
<Background_image Source="background+AF8-03.png"/>
<Calendar_weekview_markings Color="0xfda12b"/>
<Desktop Color="0x191200"/>
<Desktop_title_text Color="0xdcd0ba"/>
<Desktop_style Source="Musaic_desktop.swf" Type="File"/>
<Highlight_text Color="0xf4e1c2"/>
<Highlight Color="0x1a0f00"/>
<Highlight_image Source="highlight.png"/>
<Highlight_small_image Source="highlight+AF8-sml.png"/>
<Home_screen_text Color="0xf4e1c2"/>
<Home_screen Color="0x312b14"/>
<Home_screen_frame Color="0x0f0f0f"/>
<Home_screen_highlight_text Color="0xf4e1c2"/>
<Home_screen_highlight Color="0x391e2c"/>
<Home_screen_highlight_image Source="homesc+AF8-highlight.png"/>
<Home_screen_highlight_small_image Source="homesc+AF8-highlight+AF8-sml.png"/>
<Home_screen_image Source="homesc+AF8-image+AF8-0-.png"/>
<Home_screen_scrollbar_background Color="0x707070"/>
<Home_screen_scrollbar_slider Color="0x774900"/>
<Home_screen_tab_text Color="0xf3f3f3"/>
<Home_screen_tab Color="0x391e0c"/>
<Home_screen_tab_image Source="homesc+AF8-tab+AF8-02.png"/>
<Home_screen_tab_unselected Color="0x000000"/>
<Home_screen_tab_selected Color="0xe0e0e0"/>
<Home_screen_tab_selected_image Source="homesc+AF8-tab+AF8-selected+AF8-02.png"/>
<Home_screen_tab_unselected_image Source="Homesc+AF8-tab+AF8-unselected.png"/>
<Input_text Color="0xefe1ce"/>
<Input_image Source="input+AF8-02.png"/>
<Input_marked_text Color="0xc79a18"/>
<Input_popup_text Color="0x342f2b"/>
<Input_popup Color="0xd5ccb3"/>
<Input_popup_frame Color="0xffffff"/>
<Input_popup_highlight_text Color="0xefe1ce"/>
<Input_popup_highlight Color="0x333025"/>
<Input_popup_scrollbar_background Color="0x4d4932"/>
<Input_popup_scrollbar_slider Color="0xc79a18"/>
<Input_small_image Source="input+AF8-sml.png"/>
<Morelist_text Color="0xefe1ce"/>
<Morelist Color="0x312b14"/>
<Morelist_frame Color="0xf1e6bb"/>
<Morelist_highlight_text Color="0xefe1ce"/>
<Morelist_highlight Color="0x2f1b10"/>
<Morelist_highlight_image Source="more+AF8-highlight+AF8-02.png"/>
<Morelist_image Source="more+AF8-image.png"/>
<Morelist_scrollbar_background Color="0x888a42"/>
<Morelist_scrollbar_slider Color="0x774900"/>
<Popup Color="0x000000"/>
<Popup_dim Color="0x000000"/>
<Popup_frame Color="0x000000"/>
<Popup_highlight_text Color="0xf4e1c2"/>
<Popup_highlight Color="0x2f1b10"/>
<Popup_highlight_image Source="popup+AF8-highlight.png"/>
<Popup_image Source="popup+AF8-02.png"/>
<Popup_scrollbar_background Color="0x774900"/>
<Popup_scrollbar_slider Color="0x774900"/>
<Popup_text Color="0xefe1ce"/>
<Popup_title_image Source="popup+AF8-title.png"/>
<Popup_title_text Color="0xf4e1c2"/>
<Progress_bar_outline Color="0xe2e2e2"/>
<Progress_bar_fill Color="0x666666"/>
<Progress_bar_slider Color="0xf4e1c2"/>
<Scrollbar_background Color="0x6f6c57"/>
<Scrollbar_slider Color="0x774900"/>
<Softkey_left_pressed_image Source="softky+AF8-left+AF8-presd.png"/>
<Softkey_right_pressed_image Source="softky+AF8-right+AF8-presd.png"/>
<Softkey_text_left Color="0xead7b8"/>
<Softkey_text_left_pressed Color="0xf48b40"/>
<Softkey_text_middle Color="0xead7b8"/>
<Softkey_text_middle_pressed Color="0xf48b40"/>
<Softkey_text_right Color="0xead7b8"/>
<Softkey_text_right_pressed Color="0xf48b40"/>
<Standby_image Source="Musaic+AF8-standby.swf"/>
<Standby_operatorname_text Color="0xdcd0ba"/>
<Standby_operatorname_outline Color="0x1a0f00"/>
<Standby_softkey_image Source="standby+AF8-softkey.png"/>
<Standby_statusbar_image Source="standby+AF8-statusbar.png"/>
<Standby_time Color="0xdcdcdc"/>
<Standby_time_outline Color="0x000000"/>
<Statusbar_clock Color="0x59584d"/>
<Tab_text Color="0xf4e1c2"/>
<Tab Color="0x391e0c"/>
<Tab_image Source="tab+AF8-02.png"/>
<Tab_unselected Color="0x000000"/>
<Tab_selected Color="0xf3f3f3"/>
<Tab_selected_image Source="tab+AF8-selected+AF8-03.png"/>
<Tab_unselected_image Source="tab+AF8-unselected+AF8-02.png"/>
<Text Color="0xefe1ce"/>
<Title_image Source="title+AF8-03.png"/>
<Title_small_image Source="title+AF8-sml+AF8-03.png"/>
<Title_text Color="0xf4e1c2"/>
<Volume_staples Color="0xfda12b"/>
<Wapbrowser_underline Color="0x00009e"/>
<Wapbrowser_tableborder Color="0x00009e"/>
<Media_portrait_background_image Source="portrait+AF8-backgroung+AF8-SEMC+AF8-Filtered.png"/>
<Media_landscape_background_image Source="landscape+AF8-backgroung+AF8-SEMC+AF8-Filtered.png"/>
<Media_background Color="0x489826"/>
<Media_background_search Color="0xc3dbb1"/>
<Media_icon Color="0xe1e1e1"/>
<Media_highlight_icon Color="0xffffff"/>
<Media_text Color="0xe1e1e1"/>
<Media_highlight_text Color="0xffffff"/>
<Media_background Color="0x424242"/>
<Media_background_search Color="0x424242"/>
<Media_line Color="0xffffff"/>
<Media_walkman_highlight Color="0xfa9c16"/>
<Media_walkman_particle Color="0xfa9c16"/>
<Media_particle Color="0xffffff"/>
</Sony_Ericsson_theme>
|
|
Happy skinning!
_________________
 Tricks and Tricks for K800 File System Tweaks for K750
[ This Message was edited by: max_wedge on 2008-08-22 03:21 ] |
|
|
aremaboy
Joined: Nov 27, 2004
Posts: > 500
From: Malang, Indonesia
PM |
Thanks, really appreciate your great tips. I just wonder why SE Themes Creator does not offer this skinning for ease? Editing .xml is sometimes tiring.. |
max_wedge
Joined: Aug 29, 2004
Posts: > 500
From: Australia
PM, WWW
|
Yeah I wondered the same thing, but I was pleased to find that atleast it is possible without needing FS access.
I also tried setting paths to menu animations saved within the phone "other" folder, but I couldn't get it to work. I'm pretty sure others have gone down this path and have found that the menu swf needs to be stored in the FS and not in the user accessible area.
|
jigonx
Joined: Oct 16, 2007
Posts: 327
PM |
i have made some skins for media player C702 few weeks ago..
you can find it on C702 discussion thread  |
max_wedge
Joined: Aug 29, 2004
Posts: > 500
From: Australia
PM, WWW
|
Cool, sorry I missed it. Still I think it helps to have a dedicated thread.
I'll post some custom skins (and matching themes) here shortly for peeps who don't want to go to the effort of making their own
|
max_wedge
Joined: Aug 29, 2004
Posts: > 500
From: Australia
PM, WWW
|

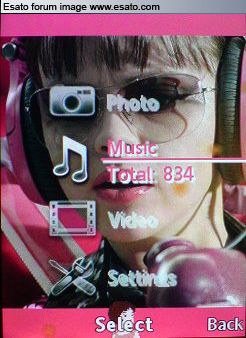

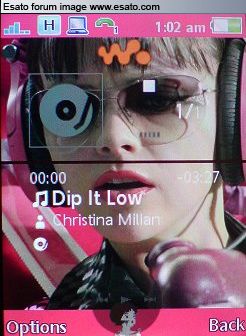

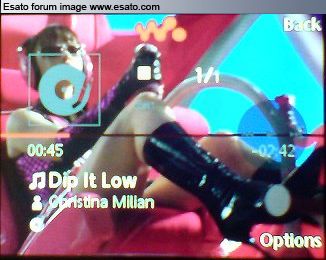

Speed Racer "Trixie" theme plus Walkman Skin:
The screen captures are crap quality, but it gives the idea. The theme includes speed racer ringtone and message tone.
http://rapidshare.com/files/139271970/Trixie-walkman.rar.html
_________________
Tricks and Tricks for K800 File System Tweaks for K750
[ This Message was edited by: max_wedge on 2008-08-22 16:27 ] |
ZeneticX
Joined: Feb 02, 2008
Posts: 112
From: Malaysia
PM |
is it possible to put an animated gif as the background?because i hav a idea here.u noe the animation on the W960 walkman player when its playing?put a similar animation on the walkman 3 background and i believe it will be awesome.
but i'm lazy now =p |
strizlow800
Joined: Aug 23, 2006
Posts: > 500
From: Macedonia, Skopje
PM |
Hmm this seems to be very interesting I must admit...
|
max_wedge
Joined: Aug 29, 2004
Posts: > 500
From: Australia
PM, WWW
|
Yes very interesting. Shame we need FS access to change menu flash animation
Still atleast we can skin media player |
max_wedge
Joined: Aug 29, 2004
Posts: > 500
From: Australia
PM, WWW
|
On 2008-08-25 15:16:25, ZeneticX wrote:
is it possible to put an animated gif as the background?because i hav a idea here.u noe the animation on the W960 walkman player when its playing?put a similar animation on the walkman 3 background and i believe it will be awesome.
but i'm lazy now =p
I think only png will work? But you can try
|
|
|
