Help with computer hardware (usb ports) |
number1
Joined: Sep 12, 2007
Posts: > 500
From: UK,kent,Sittingbourne
PM |

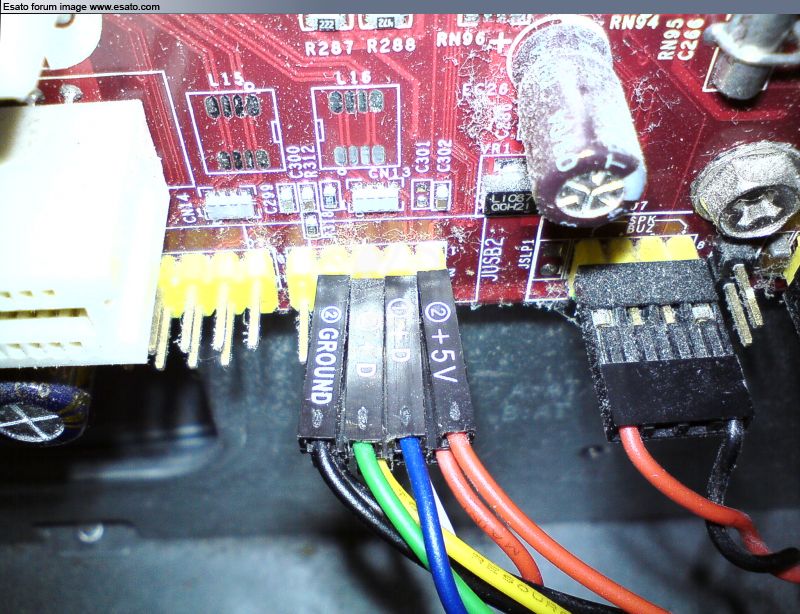

The 2 usb ports on the front on my computer went faulty, so to try and fix them i took them apart and had a look, then i disconnected them from the main board thinking it was just one connetor to turned out to be 8 serperate plugs which reranged themselves when i unpluged them and i have no idea which one goes where.
I got them like this at the moment, the ports have power but don't reconise usb devices properly so i'm guessing i'm not far off.
Any help????.
[ This Message was edited by: number1 on 2008-08-16 15:17 ] | |
|
jcwhite_uk
Joined: Feb 18, 2004
Posts: > 500
From: Dorset, UK Phone:Xperia Z1
PM, WWW
|

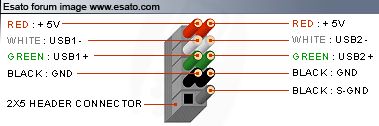

Standard pinout:
Red: + 5V / Voltage + / VCC
White: USB - / Data - / D -
Green: USB + / Data + / D +
Black: GND / Voltage - / Ground
Black: S-GND / Over Current
Checkout my photos at My Website"Duct tape is like the force. It has a light side, a dark side, and it holds the world together." |
number1
Joined: Sep 12, 2007
Posts: > 500
From: UK,kent,Sittingbourne
PM |
Thanks i got it working again, but there still faulty will probley need some new 1's any idea how much they cost.
| |
|
