K850i Taking Apart |
robuk
Joined: Aug 12, 2008
Posts: 5
PM |
im trying to take my k850i apart using the tutorial:
http://www.formymobile.co.uk/Dismantle/k850idisassembly.htm
i have said t5 and t6 screwdrivers but it would appear they are too big to fit the screws.........
Please advise!! Help!!!!!!! |
|
|
goldenface
Joined: Dec 17, 2003
Posts: > 500
From: Liverpool City Centre
PM |
I have just checked some of the K850i housings for sale on eBay and they require, 1 Torx 6 Screwdriver and 1 Torx 3 Screwdriver.
I'd check whether you have the right sizes.
|
robuk
Joined: Aug 12, 2008
Posts: 5
PM |
ive got 4,5,6,7,8,9,10,15
Cant think why the 5 doesnt fit though, other people on this site seem to have used the guide without problems
????????????????????????????? |
totalgsm
Joined: Jan 12, 2007
Posts: > 500
From: totalgsm.org
PM, WWW
|
T6 is what I use for Sony Ericsson , works fine.
I think most SE use them.
_________________
Visit www.totalgsm.org for Remote and Instant unlocking and Debranding services for all Sony Ericsson Phones. Visit forum www.totalgsm.org/forum
[ This Message was edited by: totalgsm on 2008-08-12 18:17 ] |
robuk
Joined: Aug 12, 2008
Posts: 5
PM |
On 2008-08-12 19:17:38, totalgsm wrote:
T6 is what I use for Sony Ericsson , works fine.
I think most SE use them.
[ This Message was edited by: totalgsm on 2008-08-12 18:17 ]
Is it difficult or quite easy to make the t6 fit? |
totalgsm
Joined: Jan 12, 2007
Posts: > 500
From: totalgsm.org
PM, WWW
|
It will fit in perfectly.

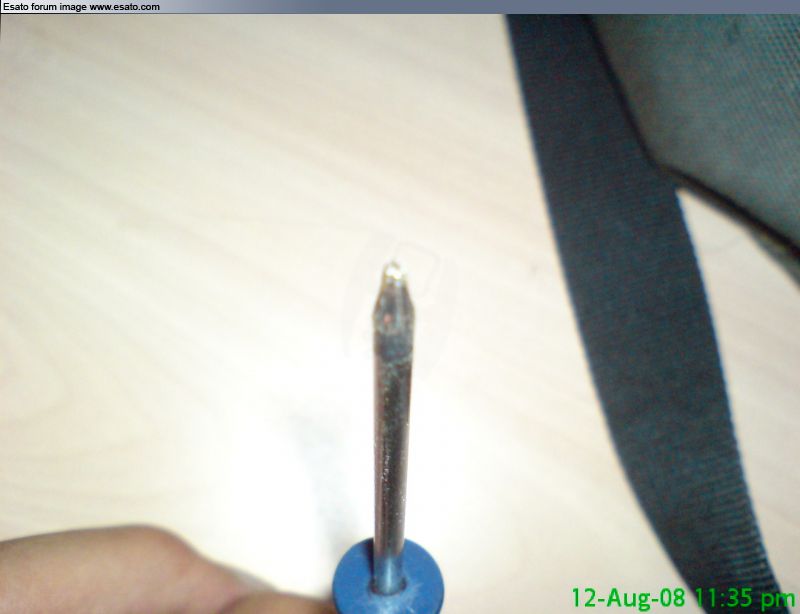

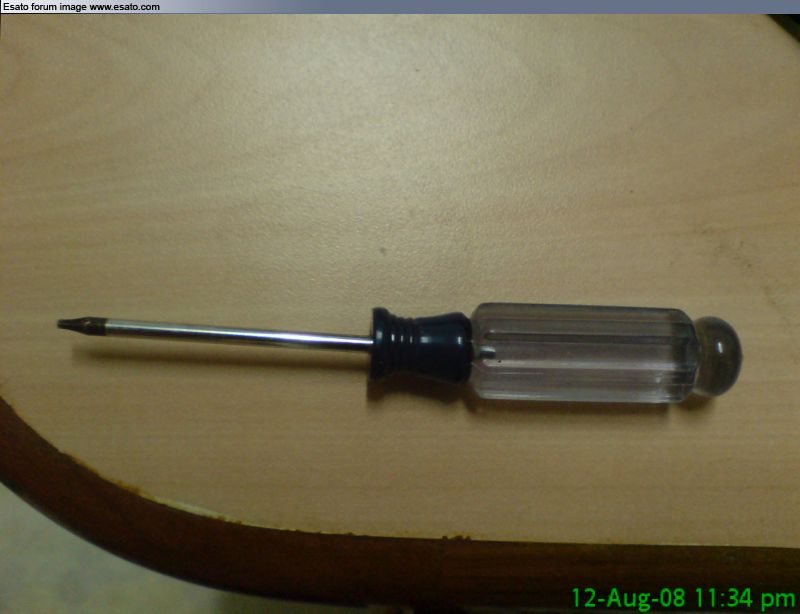

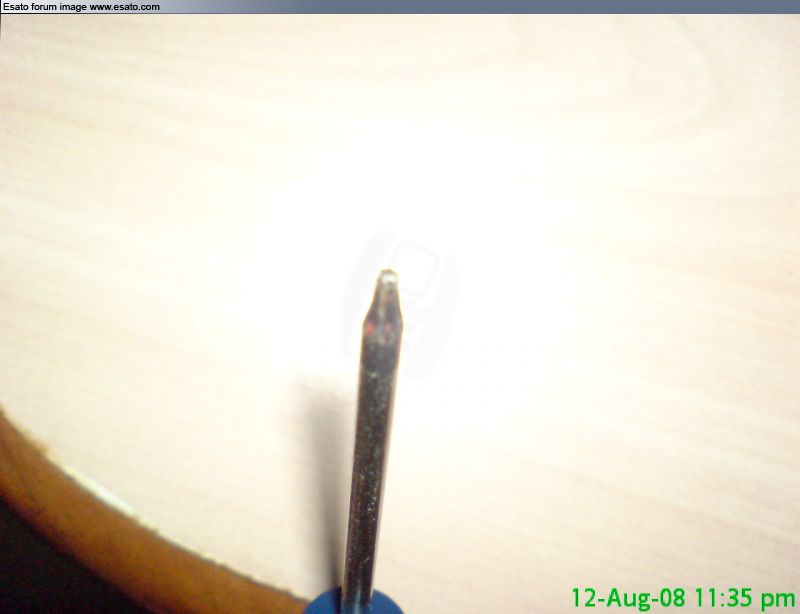

I have added a few pics, not sure if they will help.
|
gregface
Joined: Mar 05, 2004
Posts: > 500
PM |
Bottom of phone have t5 screws, these are very difficult to removed since they are secured very tightly.
T6 screws located under rear housing at the top, these are easy to remove.
I suggest getting small flathead screwdriver and filing sides slightly to get it to fit the t5 head.
There is a standard size of flathead (watch repair screwdrivers) which is just a tiny bit too big.
get a file and file each side until it fits, then get a decent cloth and wrap around the screwdriver. Without the cloth your hands will slip and you will destroy the screw head.
Turn as hard as you can (you should hear a dim squeaking, this is the screw turning).
If you use a cheap t5 then you will risk ruining the head of the screw.
Follow my advise and you will easily get them out.
|
robuk
Joined: Aug 12, 2008
Posts: 5
PM |
On 2008-08-12 20:18:17, gregface wrote:
Bottom of phone have t5 screws, these are very difficult to removed since they are secured very tightly.
Interesting you should say that mate, the T5 appears to be nowhere near small enough to fit into the screws? |
gregface
Joined: Mar 05, 2004
Posts: > 500
PM |
Perhaps I have got my numbers mixed up, All I know is that the k850i screws at the bottom are smaller than t6.
Unless you get a really expensive/decent screwdriver you are going to have trouble removing these screws.
|
robuk
Joined: Aug 12, 2008
Posts: 5
PM |
On 2008-08-13 10:41:37, gregface wrote:
Perhaps I have got my numbers mixed up, All I know is that the k850i screws at the bottom are smaller than t6.
Unless you get a really expensive/decent screwdriver you are going to have trouble removing these screws.
If you could check and confirm mate i would be eternally grateful!!
Cheers |
|
|
