| Author |
K850 sensor same as K810,K800? |
darknoob
Joined: Feb 26, 2007
Posts: > 500
PM |
K850 has same size of sensor like K810,K800 (5.18mm)
So I'm curious , Is it the same sensor but with improver software?
Thanks.. |
|
|
plankgatan
Joined: May 20, 2007
Posts: > 500
From: Sweden fur alle
PM |
NO you wrong

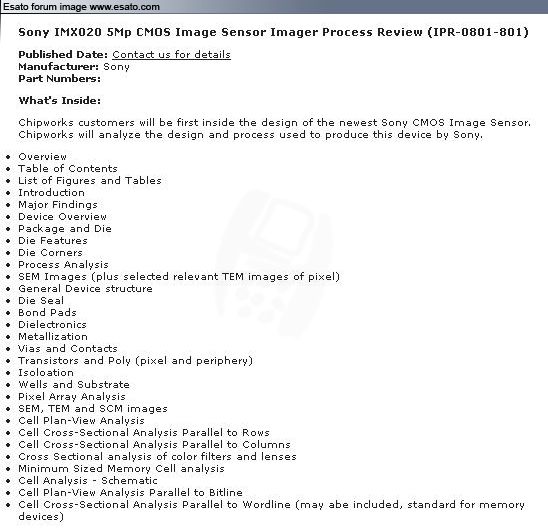

k850 have a Sony CMOS IMX020 1/2.8

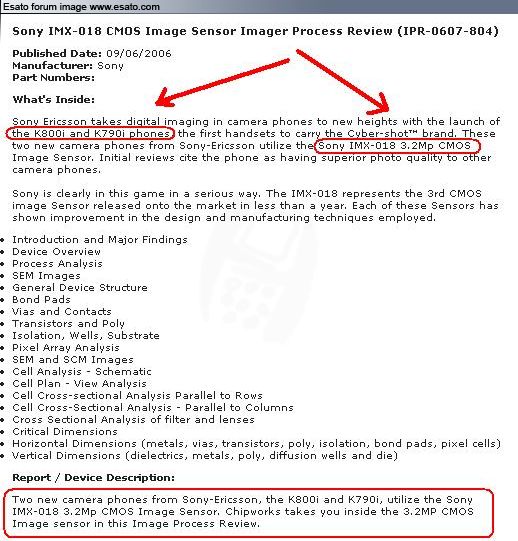

K800 have a Sony CMOS IMX-018
and N95 have a Micron Technology CMOS MT9P001 1/2.5" , (the color saturation you see with N95, dosent come by its outstanding sensor, it comes by its camera software...not many people who maybe know that)
_________________
I  K850,  W810 &  T29
------------------------------------
____________________________________
(t610, t630, k700, k750, k800, k810)
[ This Message was edited by: plankgatan on 2008-03-06 17:16 ] |
darknoob
Joined: Feb 26, 2007
Posts: > 500
PM |
K810 has a Sony CMOS IMX-018 like K800?
what about N82?
Thanks.. |
plankgatan
Joined: May 20, 2007
Posts: > 500
From: Sweden fur alle
PM |
think its the same sensor on N95/N82, only a small different between the camera software
about k800/k810......K810 have a little more optimized camera software, (the camera is little faster, etc)
ps... i dont know why people think that k850 and k800/k810 have the same sensor !
(IMX020 capture easier less light, produce better details, etc, and some other stuff as well).
_________________
I K850, W810 & T29
------------------------------------
____________________________________
(t610, t630, k700, k750, k800, k810)
[ This Message was edited by: plankgatan on 2008-03-06 17:32 ] |
Luci'sPower
Joined: Oct 29, 2006
Posts: > 500
PM |
nice info plank didn't know that |
darknoob
Joined: Feb 26, 2007
Posts: > 500
PM |
@plankgatan
N82 is a bit better than K850 in camera and K850 is better than N95..
So I guess N82 uses different sensor..
[ This Message was edited by: darknoob on 2008-03-06 18:09 ] |
Duran
Joined: Aug 25, 2006
Posts: > 500
From: Netherlands
PM |
On 2008-03-06 18:14:21, plankgatan wrote:
ps... i dont know why people think that k850 and k800/k810 have the same sensor !
Because since the k750 SE has added more and more postprocessing/filters to the pictures (e.g. oil paint)..
I've always had the feeling they do this to hide the faults from the sensor that can't really handle 5MP (or even 3.2mp for that matter)
If you resize outside k850 pics to 2mp, they're hardly any better than k750 photos.
|
plankgatan
Joined: May 20, 2007
Posts: > 500
From: Sweden fur alle
PM |
On 2008-03-06 19:09:14, darknoob wrote:
@plankgatan
N82 is a bit better than K850 in camera and K850 is better than N95..
So I guess N82 uses different sensor..
[ This Message was edited by: darknoob on 2008-03-06 18:09 ]
sorry i dont agree on that...(i think N82 have same sensor then N95. i also think K850 have a more stable camera).
1. N82 take "better" daylight pics, (with that i mean thicker saturation, which comes from its camera software)
2. K850 take better low light
3. K850 produce better details, (which means a more sensitive sensor)
4. which means that K850 have a better allround camera
thats my opinion
ps... im not saying N82 is bad.
i have show this 2 pics millions of times, and i show them again, (because i think they tells what i mean)
_________________
I K850, W810 & T29
------------------------------------
____________________________________
(t610, t630, k700, k750, k800, k810)
[ This Message was edited by: plankgatan on 2008-03-06 19:21 ] |
Luci'sPower
Joined: Oct 29, 2006
Posts: > 500
PM |
well in my opinion..........and i think in the opionion of most people with knowledge in camera sensors.....the MT9P001 sensor is better than the IMX020. |
number1
Joined: Sep 12, 2007
Posts: > 500
From: UK,kent,Sittingbourne
PM |
it seems not many people know about the camera sensors used in mobile phones,
the focal length of the k800 & k850 are exactly the same 5.2mm, the new c902 & c702 are 5.18mm because the phones are smaller and have less space thats why the xenon flash was scrapped.
the k850 uses a Sony MCB991 sensor a upgraded version of the k800i's MCB881 sensor.
in all 5mp cam phones there is heavy post-processing done controlled by the cam modules, the sensors in all 5mp are tiny and overloaded with megapixels the sensors can't coupe and produce loads of pixel errors and grainyness and can't handle colours very well, the k850 uses very light post-processing on it's daylight pics you can still see the grainyness, pixel errors etc but hardly any detail is lost which is good, but in low-light more post-processing is applied because there will be more pixel errors and alot of detail is lost. the nokia pictures are very heavily post-processed all the time and 60% of the detail is lost. the sonyericsson c902 the pictures are heavily post-processed like the nokias and all details are lost it looks more like vga. |
plankgatan
Joined: May 20, 2007
Posts: > 500
From: Sweden fur alle
PM |
eeeehhhhh
_________________
I K850, W810 & T29
------------------------------------
____________________________________
(t610, t630, k700, k750, k800, k810)
[ This Message was edited by: plankgatan on 2008-03-06 21:31 ] |
number1
Joined: Sep 12, 2007
Posts: > 500
From: UK,kent,Sittingbourne
PM |
in the k800i driver it says
info_name=MCB881; <<< sensor
info_vendor=Sony;
info_major_ver=2;
info_minor_ver=5;
sony IMX-018 is probley it's full name or something
k850i
info_name=MCB991; <<< sensor
info_vendor=Sony;
info_major_ver=3;
info_minor_ver=4;
[ This Message was edited by: number1 on 2008-03-06 21:33 ] |
plankgatan
Joined: May 20, 2007
Posts: > 500
From: Sweden fur alle
PM |
thats just some "driver device name" or something... the sensor name is IXM...
_________________
I K850, W810 & T29
------------------------------------
____________________________________
(t610, t630, k700, k750, k800, k810)
[ This Message was edited by: plankgatan on 2008-03-06 22:25 ] |
AbuBasim
Joined: Nov 04, 2005
Posts: > 500
PM |
I think those are actually names for the camera modules, i.e. the whole packages including optics and imaging sensors.
Edit: No, it's not. Plankgatan is right. The camera module in the K800i is KNC20125 and the imaging sensor inside the camera is IMX018. MBC881 seems to be the driver.
_________________
Snuck! It's ointment time! -- Mad Jack the Pirate
[ This Message was edited by: AbuBasim on 2008-03-07 06:34 ] |
razec
Joined: Aug 20, 2006
Posts: > 500
From: Mars
PM |
Wow! rich informations on this thread
What was C902's Camera sensor btw?  does it use a newer sensor than K850? is there a possibility that this thing uses Exmor?
