HPM70 Headset mod - Need help. |
K750iOwner
Joined: Apr 04, 2006
Posts: 7
From: England
PM |
Hey there ive got a SE K750i and i wanna mod the head set into a ear jack to plug my own headphones into it,
The reason being is because my stupid mutt of a dog bloody chewed the original earpeices  .. i wasnt happy at all.

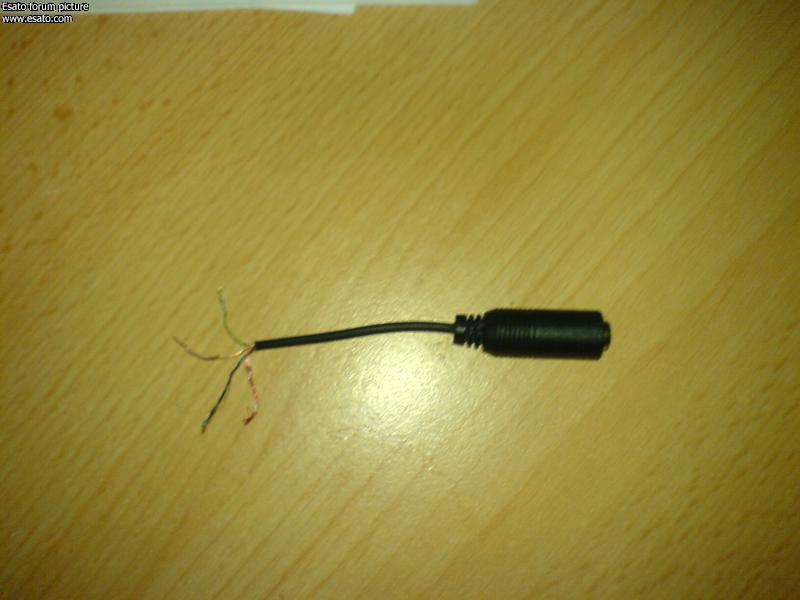

so i bought a ready made earphone jack of ebay for 99p and after a day of usin it, the wire coming out of the fast port came out and i dont know which pins go on what wire. so i broke down my HPM70 head set and wanted to wire the broken earphone jack straight up to the head set but ive tried connectin the same wires together and i get no sound?
well any way getting to the point...

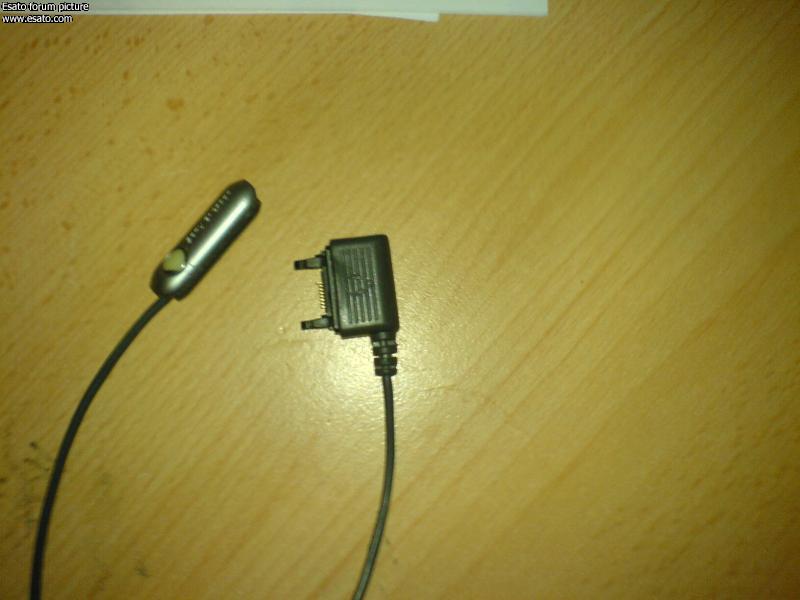

here are the pics of what i have and i hope u people can help me out
thanks in advance for any help that u may bring | |
|
opexblue
Joined: Jan 18, 2006
Posts: 226
From: Manado, North Celebes, INA.
PM |
The wire is covered by email layer. you have to remove it by scratching the wire with something sharp (e.g. knife, etc.), till it change colors to copper color . Then you connect the same wires together.
[ This Message was edited by: opexblue on 2007-01-11 14:57 ] | |
|
