W810 protector of the camera lens |
BLKSNAKER
Joined: Apr 22, 2006
Posts: 149
PM |
W810...Is the protector of the camera lens(the one of the red tint) part of the back plate? or is it mounted right on the camera? how do you take it off? is it easy? how small is it? |
|
|
nalbagli
Joined: Jul 09, 2006
Posts: 302
PM |
why did you create two threads? |
BLKSNAKER
Joined: Apr 22, 2006
Posts: 149
PM |
and where is the other one? |
xan K
Joined: Jun 15, 2006
Posts: > 500
From: Republica Dominicana
PM |
I asked the same question about a month ago when I had a w810 and a mate sent me a short tutorial on how to replace the k750 lens cover. it should be the same for the w810 since they have the same camera module. PM me your email and I can send it to you too.
|
shaliron
Joined: Jan 15, 2006
Posts: > 500
From: Melbourne, Australia
PM |
The W810 doesn't have a lens protector. Could you rephrase? Maybe you meant the self portrait mirror, which is tinted orange.
A wooden spoon is a spoon made from wood. Source: WikipediaWinner of: Best Thread (Huge SE Portfolio) 2007, Best Post (Huge SE Portfolio) 2007, Best Signature 2007, and 2nd Best Nickname 2007. |
BLKSNAKER
Joined: Apr 22, 2006
Posts: 149
PM |
Quote:
|
On 2006-08-21 11:48:41, shaliron wrote:
The W810 doesn't have a lens protector. Could you rephrase? Maybe you meant the self portrait mirror, which is tinted orange.
|
|
Yes it has...it is the plastic red tinted right on the camera module,look carefully and you will see that the camera lens is below that plastic. |
*dust*
Joined: Feb 18, 2006
Posts: 138
From: South Africa
PM |
Hi guys sorry, but could one of you please explain what lens protector you are refering to?
This message was posted from a WAP device |
shaliron
Joined: Jan 15, 2006
Posts: > 500
From: Melbourne, Australia
PM |
@BLKSNAKER

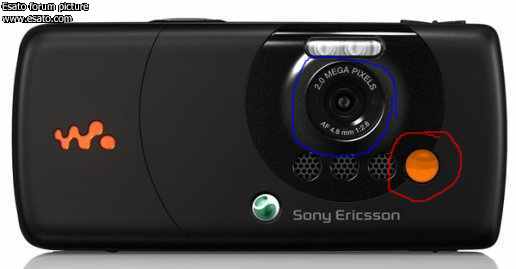

The part that's circled in red is the self-portrait mirror, and the one circled in blue is the actual camera lens. No lens protector.
If those are not the parts you were talking about, then what do you mean?
A wooden spoon is a spoon made from wood. Source: WikipediaWinner of: Best Thread (Huge SE Portfolio) 2007, Best Post (Huge SE Portfolio) 2007, Best Signature 2007, and 2nd Best Nickname 2007. |
BLKSNAKER
Joined: Apr 22, 2006
Posts: 149
PM |
The blue circle shows the protector of the camera lens, and below it the camera lens itself. Look...make AF work and take a look at the zone indicated by the blue circle: the mobile part is the camera lens, and the static plastic on it,the one you can actually touch,is the camera lens protector. Do you see it now? |
i,Robot
Joined: Jun 02, 2005
Posts: 59
From: England prevails
PM |
When u say 'Lens protector' people assume u refer to something like the sliding cover that a K750 has!! |
jmgmike73
Joined: Aug 21, 2006
Posts: 9
From: Sacramento
PM |
I just bought a 'invisible shield' from http://www.shieldzone.com/category/cell_phones/ it hasn't come yet but i don't think it has a lens protector.
-mike |
BLKSNAKER
Joined: Apr 22, 2006
Posts: 149
PM |
Quote:
|
On 2006-08-22 16:33:46, i,Robot wrote:
When u say 'Lens protector' people assume u refer to something like the sliding cover that a K750 has!!
|
|
I know what you mean,but I am right because although it is a fixed one...it protects the lens. |
max_wedge
Joined: Aug 29, 2004
Posts: > 500
From: Australia
PM, WWW
|
The confusion comes from the fact there is no clear naming convention for the various components.
When people say Lense Cover, they invariably mean the sliding Active Lense Cover, however there is another lense cover. The other lense cover is just a small round coated piece of see-through plastic stuck to the outside of the camera module itself. This protects the lense inside. some people wrongly assume this flat piece of plastic is the lense, but it isn't.
So on K750 et all, you have the Active Lense cover, then the Lense protector (also a lense cover), then the lense.
On the w810, you only have the Lense Protector and the camera lense underneath that.

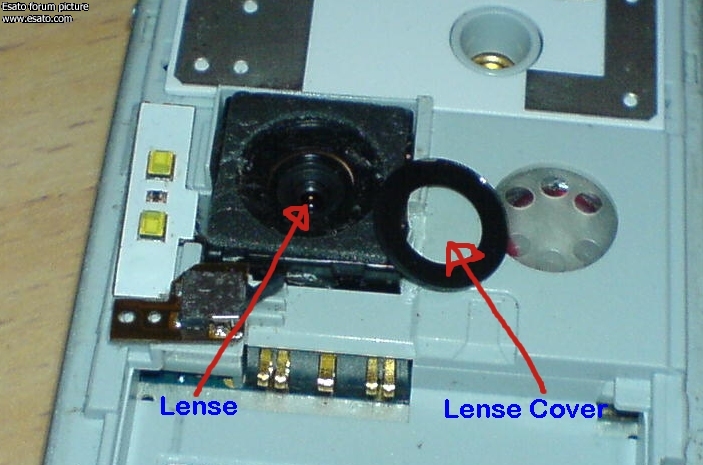

This picture of a K750 shows the lense protector removed and the camera lense underneath:
The camera module on the W810 is identical, so the same should apply to the W810.
_________________
File System Tweaks for the K750 K750 Tricks
[ This Message was edited by: max_wedge on 2006-08-23 00:30 ] |
BLKSNAKER
Joined: Apr 22, 2006
Posts: 149
PM |
and how is the lense protector fixed on its place? how do you take it off? |
max_wedge
Joined: Aug 29, 2004
Posts: > 500
From: Australia
PM, WWW
|
just prise it off gently with a small jewellers screw driver or similar. It's only glued on, the glue will restick so don't use new glue, it might just muck things up
|
|
|
