Dropped my T630 screen not working |
mustafabay
Joined: Sep 27, 2004
Posts: > 500
From: Egypt
PM |
I just dropped my T630 and the screen just started to act funny. It now stays in a limbo of being a silvery grayish black. It can breifly be all white when I shut the phone down. Everything else in the phone works ok. Does this mean I'll be visiting a service center very soon?
I don't want a signature anymore. |
|
|
Sammy_boy
Joined: Mar 31, 2004
Posts: > 500
From: Staffordshire, United Kingdom
PM, WWW
|
Quite possibly, it could be that the ribbon that connects the screen to the phone's pcb has been jolted out a bit, and might just need removing and re-inserting. You just need a T6 screwdriver to do this if you feel brave enough to take your phone apart, if not then take it to your nearest service centre to be sorted out.
"All it takes for evil to flourish is for good men to do nothing" - Edmund Burke
|
mustafabay
Joined: Sep 27, 2004
Posts: > 500
From: Egypt
PM |
Ok. Brave I am, the problem will be the screwdriver.
I don't want a signature anymore. |
Sammy_boy
Joined: Mar 31, 2004
Posts: > 500
From: Staffordshire, United Kingdom
PM, WWW
|
You can get them off Ebay, they're very cheap too only a couple of pounds (or equivalent).
"All it takes for evil to flourish is for good men to do nothing" - Edmund Burke
|
mustafabay
Joined: Sep 27, 2004
Posts: > 500
From: Egypt
PM |
Nope, I'll be buying one from a shop, I just have to get myself to go down in this heat.
I don't want a signature anymore. |
mustafabay
Joined: Sep 27, 2004
Posts: > 500
From: Egypt
PM |
How do I take the phone a part? I'm having a little trouble. How many screws are there, I've taken out two.
I don't want a signature anymore. |
mustafabay
Joined: Sep 27, 2004
Posts: > 500
From: Egypt
PM |
Now I'm really fine. I still can't open the darn thing, I might as well try opening a swiss vault. The reason I'm happy is I just cracked the camer's lens trying everywhere to get the back off. Bedtime I guess.
I don't want a signature anymore. |
Sammy_boy
Joined: Mar 31, 2004
Posts: > 500
From: Staffordshire, United Kingdom
PM, WWW
|
There should be a couple of screws underneath the aerial. You need to carefully prise the antenna off then unscrew the two screws underneath it, then carefully separate the front facia from the rest of the phone.
"All it takes for evil to flourish is for good men to do nothing" - Edmund Burke
|
mcrosser
Joined: Oct 11, 2005
Posts: > 500
From: Peru
PM |
I've opened my T630 a couple of times. the screws are four: two at the bottom, than taking of the top plastic you see the other two. I can unscrew them at an 80º angle if you get what I mean, without having to take of the antenna. than with something like your nail, pass it through the sides and the front cover comes off, leaving the screen unveiled ! I usually open it to take out some dust. hope it helps, cheers.
AVAILABLE - advertise here!!  |
mcrosser
Joined: Oct 11, 2005
Posts: > 500
From: Peru
PM |

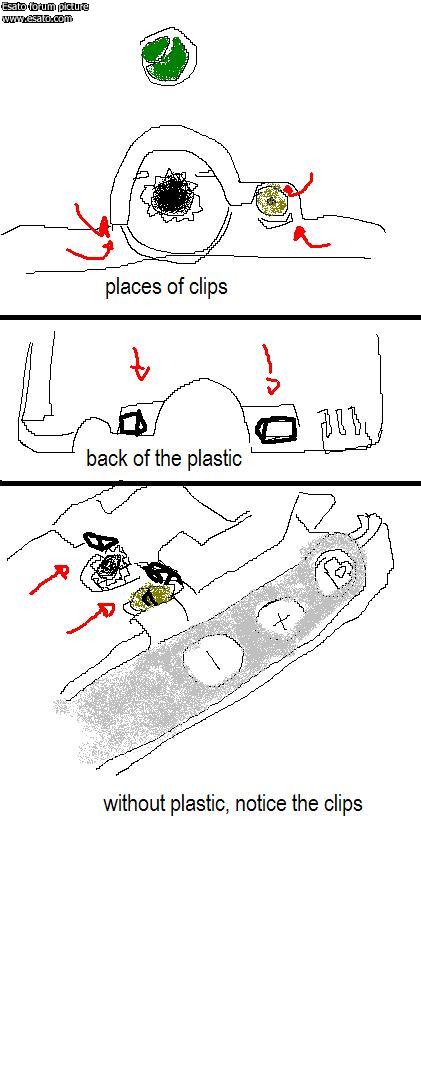

heres how to take off the plastic covering the antenna.
done on paint, hope you can be guided by the images. to take out, use your nails to take it off place, than slide upwards. notice the power buttons comes out. cheers.
AVAILABLE - advertise here!! |
mustafabay
Joined: Sep 27, 2004
Posts: > 500
From: Egypt
PM |
So there are clips? Like push them down and slide back and that's it, or push and get your pet elephant to pull?
Never mind its off, its off, off it is, its hard to type while bouncing off the wall
Now the antenna  Help?
_________________
I don't want a signature anymore.
[ This Message was edited by: mustafabay on 2006-04-16 19:52 ]
[ This Message was edited by: mustafabay on 2006-04-16 19:59 ] |
mustafabay
Joined: Sep 27, 2004
Posts: > 500
From: Egypt
PM |
Which end of the (cable ) I mean ribbon should I try? The one on the PCB.
_________________
I don't want a signature anymore.
[ This Message was edited by: mustafabay on 2006-04-16 20:23 ] |
Sammy_boy
Joined: Mar 31, 2004
Posts: > 500
From: Staffordshire, United Kingdom
PM, WWW
|
Yep, the one where the screen actually connects to the phone's motherboard itself.
"All it takes for evil to flourish is for good men to do nothing" - Edmund Burke
|
mustafabay
Joined: Sep 27, 2004
Posts: > 500
From: Egypt
PM |
Does it dave a ZIF or something? I don't quite see how to disconnect it.
I don't want a signature anymore. |
Sammy_boy
Joined: Mar 31, 2004
Posts: > 500
From: Staffordshire, United Kingdom
PM, WWW
|
There should be a little metal thing that lifts up (do this carefully with your fingernail) so you can slide the screen connector out. Just make sure it's put back in fully, and push the metal thing (sorry, can't think of the right terminology!) back down again.
"All it takes for evil to flourish is for good men to do nothing" - Edmund Burke
|
|
|
