Robis
Joined: Mar 10, 2008
Posts: 273
From: London-Vilnius
PM |
I thouht, that R380e was only in yellow color, my bad..
Thanks for new information |
|
|
r0sewhite
Joined: Nov 02, 2006
Posts: 256
From: Augsburg/Germany
PM, WWW
|
@Cytech:
I just compared the files. Amazing but true: The R380e firmware doesn't waste any more memory than the R380s. The main flash part has - of course - to be the same size since the physical flash block can't change: Both files are 908KB.
The PDA flash part is more interesting: Though the R380e has got one application more, the flash files are a bit smaller. R380s files are between 4.750KB and 4.751KB (depending on language) and R380e files (I compared the same languages) between 4.461KB and 4.538KB.
And to make things clear: Yes, you can upgrade a R380s to R380e without problems. What's even more funny: You can also flash a R380s or R380e to R380 WORLD. The physical layout of the PCB is a tri-band. It has filters for GSM900, GSM1800 and GSM1900 so it was obviously planned to be a tri-band model like the T39. I can only guess why they released the phones only as dual-band. Maybe it was a marketing decision because they thought to sell more different phones this way. Or they just couldn't develop a stable tri-band firmware until the planned release date.
However, on the other hand you can not simply flash a R380 WORLD to R380s or R380e: /// saved a little money and left the place on the PCB free, where the GSM1800 filter is soldered to. You would first have to solder the filter in place.
r0sewhite
My Ericsson /// collection: http://www.e-zones.net. Including Hedvig, Wakaba, Futaba, Walentina, R320 GPRS, misted yellow T36, T68m TEMS Pocket, jade green T29sc, ... |
Robis
Joined: Mar 10, 2008
Posts: 273
From: London-Vilnius
PM |
could you write step by step, what you did, when you made R380s-->R380e? Regards, Robis |
Cytech
Joined: Feb 19, 2002
Posts: > 500
From: Stockholm, Sweden
PM |
@r0sewhite
that's a bit weird, I know my R380s showed less memory available after I had upgraded it with R380e firmware...
|
bleurdeur
Joined: Jun 17, 2005
Posts: 290
From: WORLD PH
PM |
@r0sewhite/Tigerente:
any other model of  that has the same power ic that of the t66 aside from the t600?
a t28 or r320 perhaps?
I was just trying to work out how to revive a dead t66 that wouldn't pwer on anymore.
TIA
Make Yourself Heard  |
BobaFett
Joined: Jan 06, 2004
Posts: > 500
From: Kamino (wish it would be Lund)
PM, WWW
|
@ericsson man do happy for u, what a great find  any chance u make a video at usage? now imagine, /// made this ages ago....
@rosewhite and robin thx for sharing your collection here, congrat
|
bucheral
Joined: Jan 07, 2005
Posts: 488
From: Swiss Mountains
PM, WWW
|

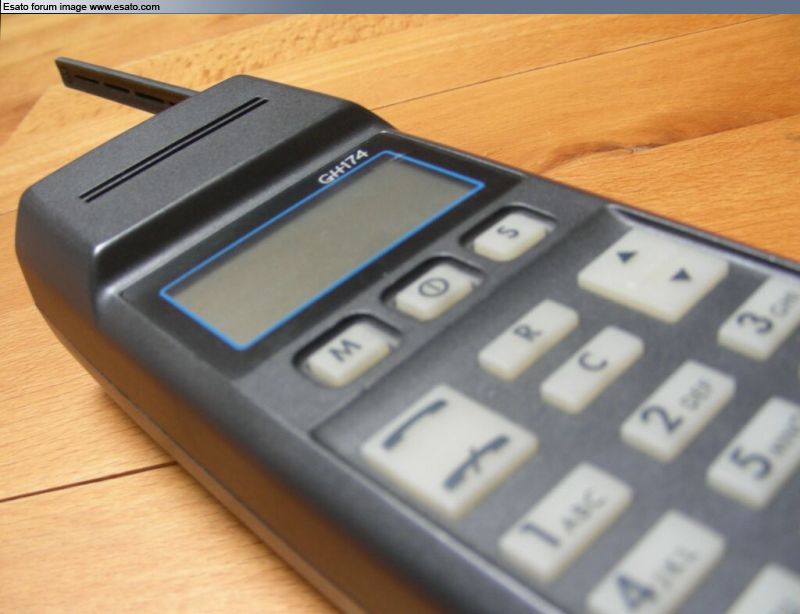

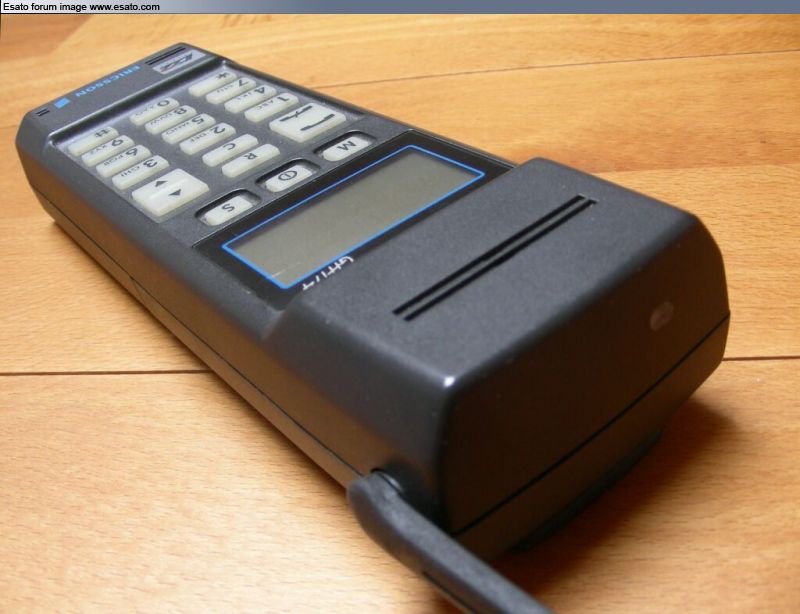

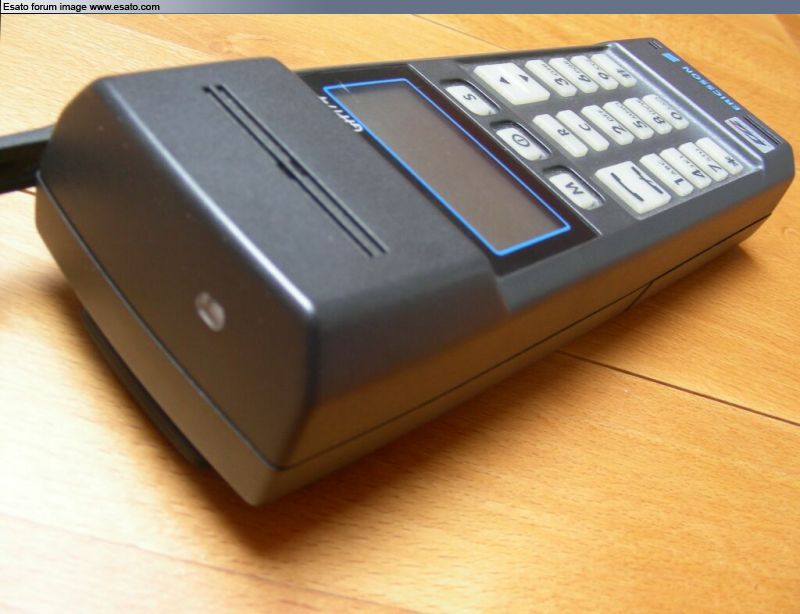

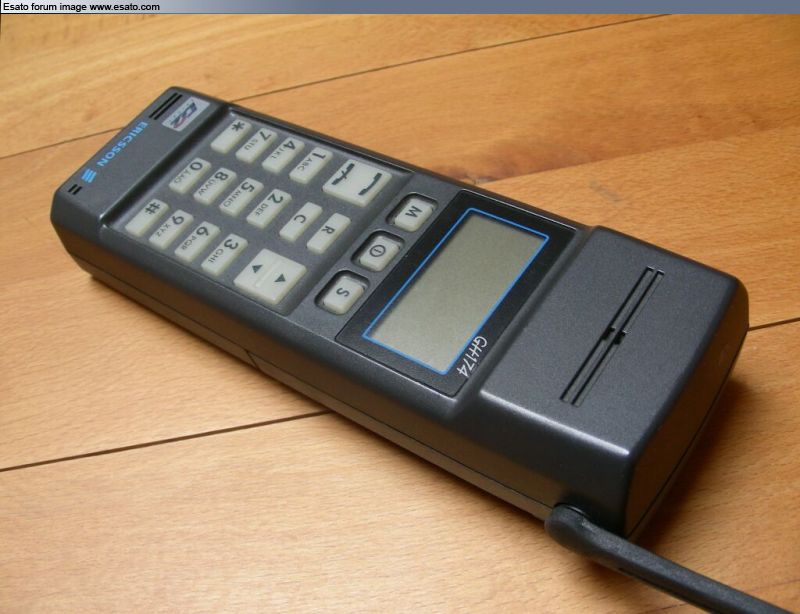

Hello there,
here is my GH174, came back from revision today, works perfectly....I went out with it, you should have seen the face of the people passing by....I put the phone on the table of a coffee shop......
 |
r0sewhite
Joined: Nov 02, 2006
Posts: 256
From: Augsburg/Germany
PM, WWW
|
@bleurdeur:
No, there is no other model that uses the same components as T66 or T600. But don't worry since the common failure is only a broken ball matrix underneath the big CPU chip. In 95% of all cases where a T66 doesn't power on or doesn't find network you only have to reflow the CPU. The problem is due to the big size of the CPU which doesn't twist as the slim PCB does.
What you need is a hotair soldering station (temp. not more than 340°C) and a lot of flux underneath the CPU. Heat it as long as it starts to swim and it will probably work fine after it.
r0sewhite
My Ericsson /// collection: http://www.e-zones.net. Including Hedvig, Wakaba, Futaba, Walentina, R320 GPRS, misted yellow T36, T68m TEMS Pocket, jade green T29sc, ... |
Robis
Joined: Mar 10, 2008
Posts: 273
From: London-Vilnius
PM |
On 2008-04-11 03:22:51, bleurdeur wrote:
@r0sewhite/Tigerente:
any other model of that has the same power ic that of the t66 aside from the t600?
a t28 or r320 perhaps?
I was just trying to work out how to revive a dead t66 that wouldn't pwer on anymore.
TIA
i have two T600- one can I switch on, but can't find network, the other one is after water.. Would be great to fix one working T600 |
r0sewhite
Joined: Nov 02, 2006
Posts: 256
From: Augsburg/Germany
PM, WWW
|
@Robis:
Where are you from? If you want to send the phone to Germany I may be able to repair it. Bleurdeur unfortunately lives on the oppositely side of this planet so it wouldn't make much sense for him to ship an inexpensive phone all around the world for repair.
If you live closer and you think it may be worth to pay the postage to Germany and back, feel free to do so. I never denied any request for help.
r0sewhite
My Ericsson /// collection: http://www.e-zones.net. Including Hedvig, Wakaba, Futaba, Walentina, R320 GPRS, misted yellow T36, T68m TEMS Pocket, jade green T29sc, ... |
tranced
Joined: Jan 19, 2006
Posts: > 500
From: Santo Domingo, wonDeRland
PM |
the M and S buttons what are for? are a sort of send and end buttons?
|
BobaFett
Joined: Jan 06, 2004
Posts: > 500
From: Kamino (wish it would be Lund)
PM, WWW
|
http://www.oldmobil.hu/phonel[....]c=2&p=ericsson&s=1&rev=&mode=0
tons of pix and USER MANUAL for every models in english aswell
|
bleurdeur
Joined: Jun 17, 2005
Posts: 290
From: WORLD PH
PM |
@r0sewhite:
thanks for the info mate...will try a bit of what you said & hopefully I don't F*#K UP.
Make Yourself Heard |
maalikkhan
Joined: Dec 05, 2007
Posts: 10
PM, WWW
|
i forgot it myself untill recently i found it back on and old cd-rom. so here it is. specs to folow in 3days (i'm out of town.
[addsig] |
Aivar
Joined: Jan 14, 2003
Posts: > 500
From: Estonia
PM |
On 2008-04-11 15:11:00, bucheral wrote:
Hello there,
here is my GH174, came back from revision today, works perfectly....I went out with it, you should have seen the face of the people passing by....I put the phone on the table of a coffee shop......
I have the same phone and also works well. Probably I have to try the same as you did
PS. As I remember the battery is original, so for now it lasts maybe only one day when no much talking.
 |
|
|
