| Author |
Unbranding a M600/W950/P990/P1/W960 for free with xs++ & seus! |
marcolinov11
Joined: Dec 03, 2007
Posts: 3
PM |
On 2007-11-17 13:24:20, snugglez64 wrote:
On 2007-11-17 10:43:48, Sainty wrote:
If your P1 gets bricked try the following - taken from XS++ Help and Information R1A by gbrooks3 and the XS++ team!!
Flash Repair
--------------------------------------------------------------------------------
It has become apparent that SEUS may "Kill" your lovely new EPOC smartphone when updating firmware. This usually occurs when the process gets stuck at 9X%.
XS+ now gives you the option of repairing your EPOC smartphone. Simply follow the instructions below.
Step 1.
Connect: Take battery out of phone and put back in (do not turn phone on). Open XS++ and tick the "SMARTPHONE CONNECT" check box. Now press the "Connect" button.
Step 2.
Download the Firmware: XS++ will attempt to connect to your phone and profile it. If your phone is in a dead state, your GDFS may appear corrupted. In this case, you must reflash the CCPU part of the phone.
We have taken the liberty to compile a few "Ressurection Packages" for your benfit.
P1i Ressurection Package
P990 Ressurection Package (Not available yet)
W960 Ressurection Package (Not available yet)
Step 3.

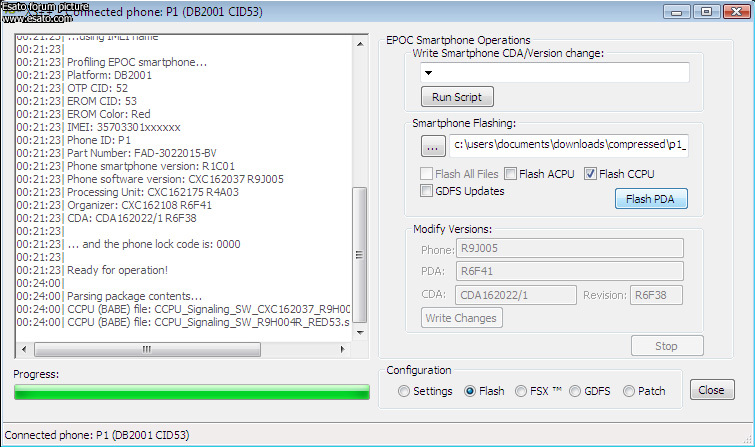

Select this file in the the "Smartphone Flashing" area. DO NOT unzip the file!!
XS++ will read the package contents and label the available CCPU files.
Tick the "Flash CCPU box ONLY!
Step 4.
Press the "Flash PDA" button and wait for XS++ to complete the 2 files flash.
Step 4.
You may now proceed to turn ON your ressurected EPOC smartphone.
_________________
Sainty - Vodafone Sales Advisor
Nokia 402 -> Nokia 3310 -> Nokia 3510i -> Nokia 6100 -> SE V800i -> Samsung D500 -> SE K750i -> SE W900i -> SE K800i -> SE P990i -> SE K850i
[ This Message was edited by: Sainty on 2007-11-17 09:51 ]
I will try it sometym.. maybe wen i fix my SEUS to start identifying my phone again.. thanks...
You have italian version ? grazie |
|
|
ripclaw2002
Joined: Dec 08, 2007
Posts: 15
PM |
all
i used XS++ on my W960 and now i have 2 lines :
CXC 162037 R9H004
R9J005
prgCXC162037_CCPU_HE_LL_NI
Organiser :
CXC162146 R6E31
CXC162146 R6F41
CDA:
CDA 162032/1 R6E29
CDA 162032/2 R6F40
when i used seus to upgrade firmware, it tells me nothing to upgrade and my firmware is the latest. help! |
tesssst
Joined: Oct 26, 2007
Posts: 98
PM |
It says that but you can still upgrade it (or over write it...)
just click next and do the upgrade |
petrutms
Joined: Nov 17, 2002
Posts: > 500
From: Cluj Napoca, Romania
PM |
any news about converting P1 to W960 ?
|
ripclaw2002
Joined: Dec 08, 2007
Posts: 15
PM |
there's no option to click next. there's only back to start. can anyone offer any more advice ?
thanks a lot! |
banivur
Joined: Dec 15, 2007
Posts: 1
PM |
i've got 2 lines in my "system info" too
similiar to *ripclaw2002*
its p1i after x++
[ This Message was edited by: banivur on 2007-12-15 18:42 ] |
qwerty12
Joined: Apr 29, 2006
Posts: 262
From: lonDON
PM |
16:08:52| XS++ v3.1 (Darwin) Ready !
16:08:52| Executed on Microsoft Windows XP
16:09:00| Executing SEMC Smartphone Operations!
16:09:00| Please hold boot key ('@' or 'C') and connect device...
16:09:19| Master Port detected: COM21
16:09:23| Slave Port detected: COM22
16:09:23| Opening Port!
16:09:23| INIT MASTER...OK!
16:09:23| PHONE INFO SAMPLED...OK!
16:09:23| EPOC APPLET HEADER SENT...OK!
16:09:23| APPLET BODY SENT...OK!
16:09:23| SHUTTING DOWN MASTER...OK!
16:09:25| Baseband ID: 7100
16:09:25| Protocol Version: 3.1
16:09:25| NEW SECURITY PHONE DETECTED! SWITCHING...
16:09:26| Speed set to 460800
16:09:26|
16:09:26| Sending db2000_cid03_prodid_p3b.bin...
16:09:27| Applet ID: 070410 1354 NPACXC125871_DB2000_PRODUCTIONIDLOADER_P3B
16:09:27| This is a PRODUCTION_ID loader
16:09:27| Activating GDFS...
16:09:27| Warning: IMEI name does not match GDFS name (IMEI:P1 GDFS:P1i)
16:09:27| ...using IMEI name
16:09:27|
16:09:27| Profiling EPOC smartphone...
16:09:27| Platform: DB2001
16:09:27| OTP CID: 52
16:09:27| EROM CID: 53
16:09:27| EROM Color: Red
16:09:27| IMEI: 35703301xxxxxx
16:09:27| Phone ID: P1
16:09:27| Part Number: FAD-3022015-BV
16:09:27| Phone smartphone version: R1C01
16:09:27| Phone software version: CXC162037 R9H004
16:09:27| Processing Unit: CXC162175 R3A01
16:09:27| Organizer: CXC162108 R6E30
16:09:27| CDA: CDA162024/9 R12A
16:09:27|
16:09:27| ... and the phone lock code is: 0000
16:09:27|
16:09:27| Ready for operation!
16:09:31| After making any changes with FSX
16:09:31| you must press the 'Shutdown' button
16:09:34|
16:09:34| Sending db2001_cid53red_cs_p1e.bin...
16:09:50| Applet ID: 070405 1245 NPA1_CXC1327363_1_SEMC_CS_LOADER_1_P1E
16:09:50| This is a CHIPSELECT loader
16:09:50| Activating loader...
16:09:50| Activating GDFS...
16:09:50| This loader is UNLOCKED
16:09:50| Backing up the GDFS...
16:09:51| Stated variables: 834
16:10:02| Variables found: 830
16:10:02| Variables found: 4
16:10:02| Wrote backup to .\Backup\P1_35703301xxxxxx_GDFS_BACKUP.bin
16:10:02| GDFS was backed up successfully!
16:10:02| GDFS operation was successful
16:10:04| Disconnected... Unplug the phone
16:10:57| Executing SEMC Smartphone Operations!
16:10:57| Please hold boot key ('@' or 'C') and connect device...
16:11:05| Master Port detected: COM21
16:11:05| Slave Port detected: COM22
16:11:05| Opening Port!
16:11:05| INIT MASTER...OK!
16:11:05| PHONE INFO SAMPLED...OK!
16:11:05| EPOC APPLET HEADER SENT...OK!
16:11:05| APPLET BODY SENT...OK!
16:11:05| SHUTTING DOWN MASTER...OK!
16:11:07| Baseband ID: 7100
16:11:07| Protocol Version: 3.1
16:11:07| NEW SECURITY PHONE DETECTED! SWITCHING...
16:11:08| Speed set to 460800
16:11:08|
16:11:08| Sending db2000_cid03_prodid_p3b.bin...
16:11:09| Applet ID: 070410 1354 NPACXC125871_DB2000_PRODUCTIONIDLOADER_P3B
16:11:09| This is a PRODUCTION_ID loader
16:11:09| Activating GDFS...
16:11:09| Warning: IMEI name does not match GDFS name (IMEI:P1 GDFS:P1i)
16:11:09| ...using IMEI name
16:11:09|
16:11:09| Profiling EPOC smartphone...
16:11:09| Platform: DB2001
16:11:09| OTP CID: 52
16:11:09| EROM CID: 53
16:11:09| EROM Color: Red
16:11:09| IMEI: 35703301xxxxxx
16:11:09| Phone ID: P1
16:11:09| Part Number: FAD-3022015-BV
16:11:09| Phone smartphone version: R1C01
16:11:09| Phone software version: CXC162037 R9H004
16:11:09| Processing Unit: CXC162175 R3A01
16:11:09| Organizer: CXC162108 R6E30
16:11:09| CDA: CDA162024/9 R12A
16:11:09|
16:11:09| ... and the phone lock code is: 0000
16:11:09|
16:11:09| Ready for operation!
16:11:38|
16:11:38| Parsing package contents...
16:11:38| CCPU (BABE) file: CCPU_Signaling_SW_CXC162037_R9H004_RED53.software
16:11:38| CCPU (BABE) file: CCPU_Signaling_SW_R9H004R_RED53.software
16:11:59|
16:11:59| SMARTPHONE WILL BE FLASHED IN 1 PHASE!
16:11:59|
16:11:59| [---------- PHASE 2 ----------]
16:11:59|
16:11:59| Sending db2001_cid53red_flash_r1a003.bin...
16:12:01| Applet ID: 060524 0930 LIECXC1325414_DB2000_FLASHLOADER_R1A003
16:12:01| This is a FLASH loader
16:12:01| Flashing CCPU_Signaling_SW_CXC162037_R9H004_RED53.software
16:12:01| Header type: BABE
16:12:01| 107 flashblocks
16:15:13| Finishing flash
16:15:16| Done flashing
16:15:16| Flashing CCPU_Signaling_SW_R9H004R_RED53.software
16:15:16| Header type: BABE
16:15:16| 8 flashblocks
16:15:48| Failed sending flashblock 8. Returnvalue 0x1
16:15:48| Finishing flash
16:17:01| Disconnected... Unplug the phone
16:17:38| Executing SEMC Smartphone Operations!
16:17:38| Please hold boot key ('@' or 'C') and connect device...
16:17:45| Master Port detected: COM21
16:17:45| Slave Port detected: COM22
16:17:46| Opening Port!
16:17:46| INIT MASTER...OK!
16:17:46| PHONE INFO SAMPLED...OK!
16:17:46| EPOC APPLET HEADER SENT...OK!
16:17:46| APPLET BODY SENT...OK!
16:17:46| SHUTTING DOWN MASTER...OK!
16:17:48| Baseband ID: 7100
16:17:48| Protocol Version: 3.1
16:17:48| NEW SECURITY PHONE DETECTED! SWITCHING...
16:17:49| Speed set to 460800
16:17:49|
16:17:49| Sending db2000_cid03_prodid_p3b.bin...
16:17:50| Applet ID: 070410 1354 NPACXC125871_DB2000_PRODUCTIONIDLOADER_P3B
16:17:50| This is a PRODUCTION_ID loader
16:17:50| Activating GDFS...
16:17:50| Cannot open GDFS
16:17:50| Activating GDFS...
16:17:50| Cannot open GDFS
16:17:50| Activating GDFS...
16:17:50| Cannot open GDFS
16:17:50| Warning: IMEI name does not match GDFS name (IMEI:P1 GDFS:P1i)
16:17:50| ...using IMEI name
16:17:50|
16:17:50| Profiling EPOC smartphone...
16:17:50| Platform: DB2001
16:17:50| OTP CID: 52
16:17:50| EROM CID: 53
16:17:50| EROM Color: Red
16:17:50| IMEI: 35703301xxxxxx
16:17:50| Phone ID: P1
16:17:50| Part Number: FAD-3022015-BV
16:17:50| Phone smartphone version: R1C01
16:17:50| Phone software version:
16:17:50| Processing Unit:
16:17:50| Organizer:
16:17:50| CDA:
16:17:50| Activating GDFS...
16:17:50| Cannot open GDFS
My phone would stay black and only the keypad would light up so
I flashed the P1i resurrection package but it always failed on the 8th flashblock and after that the GDFS could not be read and any program refuses to identify the phone (SEUS, kulankendi, davinci, XS++). Before that, the GDFS was recognised.
Any help please?
I do have a GDFS backup but XS++ will just stay there when attempting to restore.
From davinci:
Error! Failed To Start GDFS From ID Loader! Code: 0x04
Warning! SW , Lang, CDA Will Not Be Detected!
Error! Failed To Read GDFS 0x02 0x06D4! Code: 0x0C
Error! Failed To Read GDFS 0x02 0x079E! Code: 0x0C
Model info:
PDA software version:
Unknown Unknown
Phone software version:
Unknown Unknown
Bluetooth software version:
Unavailable
CDA version:
Unknown Unknown
[ This Message was edited by: qwerty12 on 2007-12-17 16:28 ] |
ripclaw2002
Joined: Dec 08, 2007
Posts: 15
PM |
restore the GDFS and you should now see the latest firmware |
kaka2_vn
Joined: Oct 02, 2007
Posts: 2
PM |
my w950i is dead after doing above steps, when i turn on the phone ,it just start with walkman screen repeatly but can not continues to use the phone,anyone know why? and where can i download w950's firmware to flash it by xs++,thank you in advance....
Please help me |
kaka2_vn
Joined: Oct 02, 2007
Posts: 2
PM |
and what is CCPU, why didn't i see w950's CCPU in this topic?(only for P1)if anyone have,can you upload it?
[ This Message was edited by: kaka2_vn on 2007-12-19 16:07 ] |
Shinjikun
Joined: Nov 28, 2007
Posts: 4
PM |
My w950i has been dead for a month as well =) Still waiting for miracle. |
qwerty12
Joined: Apr 29, 2006
Posts: 262
From: lonDON
PM |
On 2007-12-18 04:57:38, ripclaw2002 wrote:
restore the GDFS and you should now see the latest firmware
I can't  . It just gets stuck and doesn't do anything. I have had experience of this problem with my W810. If I can flash the firmware, the GDFS will start to be read again.
On 2007-12-19 18:03:11, Shinjikun wrote:
My w950i has been dead for a month as well =) Still waiting for miracle.
Hehe, we'll start the dead UIQ3 phones club |
gbrooks3
Joined: Jun 02, 2003
Posts: > 500
From: OTP RED CID36
PM, WWW
|
qwerty,
I guess the phones flash IC is damaged in some way. Maybe there is something we can do however  |
chadi_1984
Joined: Feb 20, 2007
Posts: 35
PM |
Hey guys, i have a w960i , my CDA is 162034/54 i checked it on the net and i knew that it is Netherlands - Generic Trade ... i wanna change to world generic 1 , is it worth it ?
|
qwerty12
Joined: Apr 29, 2006
Posts: 262
From: lonDON
PM |
On 2007-12-22 23:32:49, gbrooks3 wrote:
qwerty,
I guess the phones flash IC is damaged in some way. Maybe there is something we can do however
I'm open to suggestions
Thanks
Unbranded+Unlocked.FW:R4EA031 | Mods:Too Much.
Elfpack etc. Aka qwerty111 |
|
|
