| Author |
Here's how to open the housing of the V800 (Lots of Pictures) |
godmitch
Joined: Jul 12, 2005
Posts: 10
PM |
i really need to get hold of a cable for the antenna can anyone help sony ericsson wont repair it all i need is 1 dam little white tiny cable lol
|
|
|
campbellnz
Joined: Jun 30, 2005
Posts: 14
From: Auckland, New Zealand
PM |
@godmitch: Just sent an email to the german site listed in my first post. I will let you know if they reply to me. They used to have that part listed but I dont see it there anymore. Seems very strange that that sould be the part that fails.... oh well. |
Volfeed
Joined: Jan 11, 2005
Posts: 2
PM |
Just got my antenna & its cable changed at a local SonyEricsson service centre. Problem solved and costed me about US$30.  |
kennybanh
Joined: Aug 20, 2005
Posts: 5
From: USA
PM |
after i changed full housing for my phone , it does not work . When i turn power on , the screen Appear the text SONY ERICSSON , and after that , the screen turn off (black screen , no light) but the small screen outside still work , look like my phone alway close , the small lcd screen outside alway on . Everybody help !!!! help me how to fix it , pls ( 420 usd )
|
campbellnz
Joined: Jun 30, 2005
Posts: 14
From: Auckland, New Zealand
PM |
Quote:
|
On 2005-08-20 09:52:00, kennybanh wrote:
after i changed full housing for my phone , it does not work . When i turn power on , the screen Appear the text SONY ERICSSON , and after that , the screen turn off (black screen , no light) but the small screen outside still work , look like my phone alway close , the small lcd screen outside alway on . Everybody help !!!! help me how to fix it , pls ( 420 usd )
|
|
There is a little magnetic sensor inside your phone on the main circuit board in the top left corner. If the sensor detects a magnet it turns of your main screen and turns on the external one. Some phone covers have a magnet that causes the sensor to think the phone is closed thus the main screen gets turned off. Hope this helps. |
kennybanh
Joined: Aug 20, 2005
Posts: 5
From: USA
PM |
thanks a lot ! i will try . |
kennybanh
Joined: Aug 20, 2005
Posts: 5
From: USA
PM |
dont know how to fix , do u have a picture to show me how to do , thankx so much. |
campbellnz
Joined: Jun 30, 2005
Posts: 14
From: Auckland, New Zealand
PM |
Do you have a phone cover on your phone? If so remove it to see if that was causing the problem. If not then remove the housing from the top section of your phone. There is a little magnet inside the housing just to the left of the 1.3 Megapixel sticker that interacts with the sensor on the lower part of the phone so it can tell when the phone is closed and turn on the external screen.
Power up your phone when you have removed the housing from the top section to see if the main screen is now working as it should. If this does not fix it then you may have a faulty sensor that thinks a magnet is present and turns off the main screen.

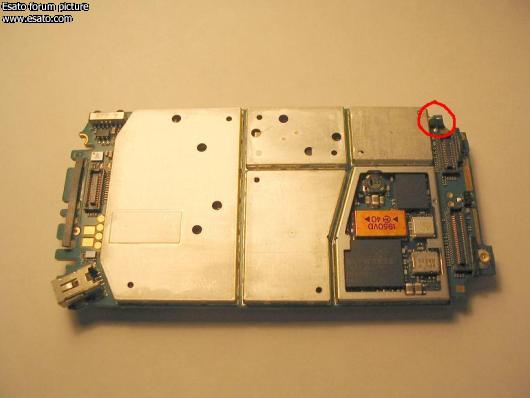

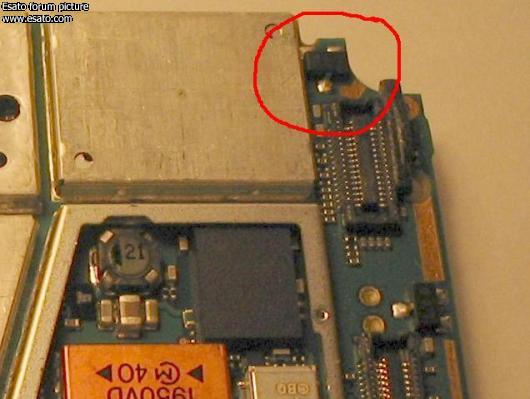

On a phone that is working correctly you can get a small fridge magnet and pass it over the area to the left of the left hinge and the main screen will turn off. It could be that the magnet in your new housing is too strong. Here is a picture showing the sensor.
 |
kennybanh
Joined: Aug 20, 2005
Posts: 5
From: USA
PM |
already remove the housing , but did not see the part u shown .
|
campbellnz
Joined: Jun 30, 2005
Posts: 14
From: Auckland, New Zealand
PM |
If the part is not there now does it look as if it has ever been there?
 |
kennybanh
Joined: Aug 20, 2005
Posts: 5
From: USA
PM |
no , didnt have that part . Maybe i lost it . How can i fix now ?
ps : Thanks for ur reply . |
campbellnz
Joined: Jun 30, 2005
Posts: 14
From: Auckland, New Zealand
PM |
If it has snapped off then you will have to send it to a service centre. If it was never there then your phone might have a different set up from my V802SE. Can see why your phone would be different from mine though. Are the 2 solder points there where the sensor should be? Maybe you could post a picture of your phone here so I can see what is wrong. |
pratikgr
Joined: Dec 08, 2005
Posts: 2
PM |
I just bought antenna from ebay and replaced. The signals are full now. Works fine. |
marlonski
Joined: Oct 16, 2004
Posts: > 500
From: UK
PM |
@campbellnz
Excellent post, very helpful.
|
expansion
Joined: Dec 15, 2004
Posts: 94
PM, WWW
|
hey i just took off my housing (again) to try and fix some bendage in the top part of the phone (from dropping it) and everything is good but the sim card holder is just free floating and i have no idea where it is suppost to go, what the metal bits are suppost to be touching. any ideas? cheers in advance
bart
~ waiting for unbranded V800 ~ |
|
|
Posted: 2005-08-10 17:39
