| Author |
Flash K800 CID53 with K810 software CID53 (for begginers) |
coin2005
Joined: May 27, 2007
Posts: 113
From: -
PM, WWW
|
On 2008-06-02 12:01:29, centur wrote:
First if you haven't installed SEMC USB flash driver read here: USB Flash Driver Installation - Guide
You must open Service menu and see what is your custpack.
In stand by mode unlock keyboard and click:
> * < < * < *
Service info > Software info > and see:
Customization
CDA....
cxc
MEDITERR ( or EUROPE_4 or something else ).
Etc. if you have EUROPE_2, S_ASIA_LEVAN, S_E_EUROPE:
K810_R8BA024_FS_ EUROPE_2_RED53
HB1-06_Gen_CDA102568_11_R8A_GENERIC_ EUROPE_2
K810_R8BA024_FS_ S_ASIA_LEVAN_RED53
HB1-06_Gen_CDA102568_110_R8A_GENERIC_ S_ASIA_LEVAN
K810_R8BA024_FS_ S_E_EUROPE_RED53
HB1-06_Gen_CDA102568_3_R9A_GENERIC_ S_E_EUROPE
1. Back up your SMS, contacts, notes ... with MyPhoneExplorer_Setup_1.6.7.exe
Click F2, then Search device and if cann't find phone install USB drivers:
k800_usb_signed_drivers.zip
k810_usb_signed_drivers.zip
2. Download: Far_Manager_with_JDFlasher_plugin.rar (click Extract Here)
3. Click F11
4. Click db2020, DCU-60, 921600 then click [jump down into a large rabbit hole]
5. Click twice on oflash
6. Download and extract K810_R8BA024_MAIN_GENERIC_RED53.rar
Once completed flash on Main do not disconnect phone!
7. Download File System ( FS) from http://www.topsony.com/forum/local_links.php?catid=1436 (To me I need this file: K810_R8BA024_FS_MEDITERR_RED53.rar) See the example at the beginning of the post!
After flash on File System click twice on " .."
 -> click yes.
Discconect USB cable, remove the battery and put it back into the phone, but do NOT turn on!
8. Download your Custpack from: http://www.topsony.com/forum/local_links.php?catid=257 (To me I need this file: HB1-06_Gen_CDA102568_4_R8A_GENERIC_MEDITERR )
See the example at the beginning of the post!
9. Again connect to FAR and click F11
10. Click db2020, DCU-60, 921600 then click [jump down into a large rabbit hole]
11. click twice on ofs
12. Open tpa/ preset/ custom ( On the right unzip Custpack and open tpa/ preset/ custom)
After customize on File System click twice on " .."
-> click yes.
Now can turn on phone and see on screen Please wait !!!
13. Again connect to FAR and click F11
14. Click db2020, DCU-60, 921600 then click [jump down into a large rabbit hole]
15. click twice on ofs
16. Download: K800_lighteffects.rar
Open tpa/ preset/ system/ lighteffect/ systemeffects
After K800 lighteffects click twice on " .."
-> click yes.
Now phone work fine.
You have:
TrackID: http://www.sonyericsson.com/product/trackid
Photo fix
_________________
Sony Ericsson K800i + Sony Memory Stick Micro 4GB + HBH-DS980
K810i R8BA024 MAIN + File System ( TrackID and Photo Fix )
Zapf v2 sunfire7 acoustic
Moded camdriver version 2.7 (35 fps)
[ This Message was edited by: centur on 2008-06-02 12:46 ]
Buddy!
Is Dat Procedure is Same For K790i ??
Koz I Have K790i ... i want 2 Upgrade CID52 to CID53 ....
Plz HELP me ... Thx ....! |
|
|
wayne_rooney
Joined: Nov 30, 2006
Posts: 100
PM |
should i use K810_R8BF003_MAIN_GENERIC_SM_RED53
i think... this is latest for k800i @k810i ....
but hows w850i or w880i firmware use in k800i.... i just want to use that walkman with normal working camera without/ with 3.2 mp.. |
strizlow800
Joined: Aug 23, 2006
Posts: > 500
From: Macedonia, Skopje
PM |
R8BF003 - K810 - CID53 is the latest firmware for the K810... Anyway If you flash your K800 with W850/880 firmware you get problems... For example:
if you flash with W880 firmware:
- get walkman
- get flash themes
- lose camera (there is a way to use it downgraded to 2 megapixel)
- lose joystick functionality and have messed up keys...
if you flash with W850 firmware:
- get walkman
- get flash themes
- camera not working at all
- lose memory stick micro (M2) support
- lose joystick functionality...
so after all, I think it's definately NOT WORTH
|
wayne_rooney
Joined: Nov 30, 2006
Posts: 100
PM |
for with w880i firmwre...
for camera with 2mp.... right.. then it;s ok.. np with it..
and what about joystick it didn't work at all ..as well no key buttons ???
if we mange normal keypad working then its ok use with it.. |
centur
Joined: Jun 10, 2007
Posts: > 500
From: Bulgaria
PM, WWW
|
On 2008-06-19 18:49:47, coin2005 wrote:
Buddy!
Is Dat Procedure is Same For K790i ??
Koz I Have K790i ... i want 2 Upgrade CID52 to CID53 ....
Plz HELP me ... Thx ....!
Yes, but do NOT update your phone to CID 53 - cann't apply patches, cann't use other programs (XS++, Setool ), cann't make Back up/Restore on GDFS.
Stay with CID 52 !!!
On 2008-06-19 20:57:04, wayne_rooney wrote:
should i use K810_R8BF003_MAIN_GENERIC_SM_RED53
i think... this is latest for k800i @k810i ....
but hows w850i or w880i firmware use in k800i.... i just want to use that walkman with normal working camera without/ with 3.2 mp..
Lastest SW for K810: http://www.topsony.com/forum/local_links.php?catid=1403
R8BA024: http://www.topsony.com/forum/local_links.php?catid=1436 [30 entries]
R8BC004:
K810_R8BC004_FS_T_MOB_INT_A_RED53
K810_R8BC004_MAIN_TMOBILE_SM_RED53
R8BE001:
K810_R8BE001_FS_BALTIC_RED53
K810_R8BE001_FS_EUROPE_4_RED53
K810_R8BE001_MAIN_GENERIC_SM_RED53
R8BF003:
K810_R8BF003_FS_TELEF_GEN_RED53
K810_R8BF003_MAIN_GENERIC_SM_RED53
If I need K810_R8BF003_FS_MEDITERR_RED53 -
Where did you find this version did not exist as?
|
wickedsick
Joined: Aug 16, 2007
Posts: 161
PM |
Hello everyone. I have just tried to upgrade my K800 cid53 to k810 cid53. I followed the instruction above. After finishing flashing the FS and add custom, I start the Phone, saw Please wait but the screen keep flashing. When I updated the lighteffect, the problem still happen. Please help me and thank you. |
coin2005
Joined: May 27, 2007
Posts: 113
From: -
PM, WWW
|
Yes, but do NOT update your phone to CID 53 - cann't apply patches, cann't use other programs (XS++, Setool ), cann't make Back up/Restore on GDFS.
Stay with CID 52 !!!
[b] Centur! Thanx 4 Reply ....! |
vipow
Joined: Jul 05, 2008
Posts: 2
From: Serbia
PM |
On 2008-06-23 19:54:44, wickedsick wrote:
Hello everyone. I have just tried to upgrade my K800 cid53 to k810 cid53. I followed the instruction above. After finishing flashing the FS and add custom, I start the Phone, saw Please wait but the screen keep flashing. When I updated the lighteffect, the problem still happen. Please help me and thank you.
I do the same, and I have a same problem. Can anyone help please? |
strizlow800
Joined: Aug 23, 2006
Posts: > 500
From: Macedonia, Skopje
PM |
Try using the K800's default display driver and lighteffects... Maybe the effects you are trying to use are corrupted... At www.se-nse.com there were some custom light effects based on lighteffects from other phones... You may try them too to see if they work with your phone... It may solve the problem.
|
vipow
Joined: Jul 05, 2008
Posts: 2
From: Serbia
PM |
After unsucess flashing to k810 firmware (display keeps flashing) I do SESU upgrade and I get full functional k810 firmware on my k800.
Now I just need to unlock phone again. |
strizlow800
Joined: Aug 23, 2006
Posts: > 500
From: Macedonia, Skopje
PM |
You cannot unlock CID53 by patch. Patching is still not available for CID53 DB2020 phones...
You have to use some of the online clients to unlock your phone, but it is not for free...
|
M3XIII
Joined: Jul 18, 2008
Posts: 5
PM |

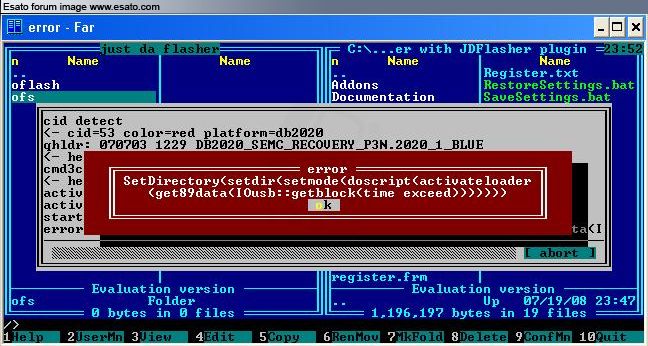

Was working til i got this error:
it was 'starting FS server'
Any ideas on where to go from here?
k810i |
strizlow800
Joined: Aug 23, 2006
Posts: > 500
From: Macedonia, Skopje
PM |
Try again from the beginning to see if it work...
Make sure you have the latest and most stable version of jdflasher plugin...
|
hfmls
Joined: Mar 17, 2008
Posts: 489
PM |
well you couldn't do it because u have to choose db2020 and max connection speed and correct cable model....
then you'll succeed |
equinoxic
Joined: Aug 19, 2008
Posts: 5
PM |
hi guys,
can any1 care to help me find the following MAIN,FW,CUSTPACK for my phone? because i always get the OPERATION FAILED in the GAMES and APPLICATION folder, tried RESET ALL in master reset, still d same.... this is my phone
09:01:25| Baseband ID: 9900
09:01:25| Protocol Version: 3.1
09:01:26| Warning: IMEI name does not match GDFS name (IMEI:NULL GDFS:K800)
09:01:26| ...using GDFS name
09:01:26|
09:01:26| Profiling SEMC phone...
09:01:26| Platform: DB2020
09:01:26| OTP CID: 51
09:01:26| EROM CID: 53
09:01:26| EROM Color: Red
09:01:26| IMEI: 35427102xxxxxx
09:01:26| Phone ID: K800
09:01:26| Region: APAC
09:01:26| CDA: CDA102511/195 R1A
09:01:26| Firmware Version: R8BF003
09:01:26| EROM: R3A022
09:01:26| Ready for operation!
i can't seem to find the custpack with it , custpack for k800i and k810? what i mean the things that fits my phone's details before i will flash it..thanks in advance..by the way i need english language i am from philippines..
[ This Message was edited by: equinoxic on 2008-08-20 01:46 ]
[ This Message was edited by: equinoxic on 2008-08-20 01:50 ] |
|
|
Posted: 2008-06-19 18:49
