| Author |
Raider camera driver for K790, K800 and K810 (v6.6.5) |
Goldmen
Joined: Oct 07, 2007
Posts: > 500
From: Bulgaria
PM, WWW
|
On 2008-08-14 20:42:23, Arfi-Gorgona wrote:
Thanks for the detailed explanation my friend
You welcome!
If I can help...no problem!
|
|
|
hfmls
Joined: Mar 17, 2008
Posts: 489
PM |
EM makes shutter speed slow or fast, it "detects" the perfect configuration, if it's sunny, for sure EM will make shutter faster. if it is dark, low shutter.... anyway...pictures come out perfect and clear. |
demion
Joined: Jun 18, 2007
Posts: 2
PM |
this s my patch fo k790 r8bf003
Code:
|
;k790 R8BF003
;for raider camdriver v633
+44140000
018E278C: 122232002E00300000 630079002d00720064 ;'-2.0'->'cy-rd' (balance cyan - red)
018E2798: 122231002E00370000 790065002d0062006c ;'-1.7'->'ye-bl' (balance yellow - blue)
018E27A4: 122231002E00330000 6f0072002d006c0062 ;'-1.3'->'or-lb' (balance orange - light blue)
018E27B0: 122231002E00300000 200063007700620000 ;'-1.0'->'cwb' (Custom White Balance)
018E27BC: 122230002E00370000 63006f006e00740072 ;'-0.7'->'contr' (contrast)
018E27C8: 122230002E00330000 63006f006c006f0072 ;'-0.3'->'color' (colors saturation)
018E27D4: B10030002E00300000 66006f006300750073 ;'0.0'->'focus'
018E27E0: 2B0030002E00330000 200045005600000000 ;'0.3'->'EV' (EV compensation)
018E27EC: 2B0030002E00370000 46002e007300700064 ;'0.7'->'F.spd' (shutter speed fast)
018E27F8: 2B0031002E00300000 53002e007300700064 ;'1.0'->'S.spd' (shutter speed slow)
018E2804: 2B0031002E00330000 2000490053004f0000 ;'1.3'->'ISO'
018E2810: 2B0031002E00370000 7a006f006f006d0000 ;'1.7'->'zoom'
018E281C: 2B0032002E00300000 200041004500000000 ;'2.0'->'AE' (AE lock) |
|
and EV bar
download http://www.fileshost.com/en/file/55779/rider633-zip.html
[ This Message was edited by: demion on 2008-08-14 22:35 ] |
Goldmen
Joined: Oct 07, 2007
Posts: > 500
From: Bulgaria
PM, WWW
|
demion
Could you share also png`s?
Thank you!
RU:
А можно также иконки из которых сделал этот патч?
Спасибо!
[ This Message was edited by: Goldmen on 2008-08-14 22:49 ] |
wickedsick
Joined: Aug 16, 2007
Posts: 161
PM |
On 2008-08-14 22:47:33, hfmls wrote:
EM makes shutter speed slow or fast, it "detects" the perfect configuration, if it's sunny, for sure EM will make shutter faster. if it is dark, low shutter.... anyway...pictures come out perfect and clear.
Nice saying. Actually, we shouldn't say higher or lower as this is used for ISO. For ss, we will use faster/slower or longer/shorter. |
dj516nadz
Joined: Jul 21, 2008
Posts: 14
PM |
i have used almost all option on raiders 6.3.3 camdriver all of my pics are size of 400kb 500kb only a few 600kb i can not get now where to 800/900kb.
my lens is clean
i have k810 r8ba024
i have battery, signal, password, osd patches installed
i have dispdriver camdriver and acoustics installed
would any of these interfere with cameras performance |
igorluk
Joined: Feb 13, 2008
Posts: 5
PM |
On 2008-08-14 23:32:32, Goldmen wrote:
demion
Could you share also png`s?
Thank you!
RU:
А можно также иконки из которых сделал этот патч?
Спасибо!
[ This Message was edited by: Goldmen on 2008-08-14 22:49 ]
+1, PLZ |
demion
Joined: Jun 18, 2007
Posts: 2
PM |
u can find png for EV bar in link i gave in previous post.

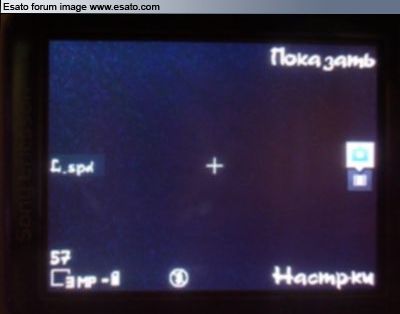

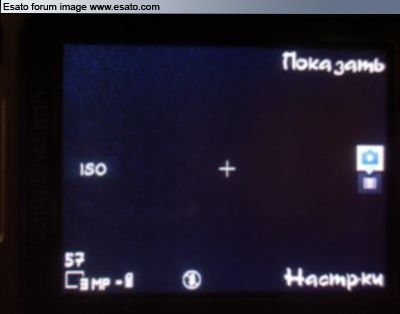

by the way. it is not a gfx pach. it changes '+0.3' to 'EV' , '+0.7' to 'F.spd' and so on |
filiptc
Joined: Jan 14, 2008
Posts: 25
From: Madrid
PM, WWW
|
On 2008-08-15 05:43:31, dj516nadz wrote:
i have used almost all option on raiders 6.3.3 camdriver all of my pics are size of 400kb 500kb only a few 600kb i can not get now where to 800/900kb.
my lens is clean
i have k810 r8ba024
i have battery, signal, password, osd patches installed
i have dispdriver camdriver and acoustics installed
would any of these interfere with cameras performance
Size of picture depends on details. JPEG compression works in a way that it compresses pictures with large monochrome areas most. Try photographing grass, or gravel (lots of small areas). You will reach 800 for sure. Besides, don't worry about compression. Worry about image quality (which you shouldn't with this driver anyway). |
kuttannetti
Joined: Jun 21, 2008
Posts: 4
PM |
what i mean is:
Lets take this situation:
I am taking a photograph of the water falling from a tap in a wash basin, and I need a crispy photo and want to freeze the waterdrop motion in air (without motion blur). To do so, i need to use higher shutter speed, right? (correct me if I am wrong). But when I use higher shutter speed, picture become too dark and nothing is seen in the picture. Using SEM/EM or slow shutter speed wont help here because they are not suitable for scenes having motion. I think in digital cameras, aperture can be increased to gather more light when higher shutter speed is used. any such technique which we can use in our K800/790 driver??? Experts, please answer.. |
butiliero
Joined: Feb 19, 2008
Posts: 16
PM |
Why not using the flash? |
kuttannetti
Joined: Jun 21, 2008
Posts: 4
PM |
On 2008-08-15 16:20:04, butiliero wrote:
Why not using the flash?
flash may light the drops so bright that everything gets too shiny. any way without using the flash? |
Raiderski
Joined: Jul 03, 2006
Posts: > 500
From: Poland, Hell, Mountains
PM, WWW
|
flash may light the drops so bright that everything gets too shiny
you don't have to worry about this, water drop is not too fast. quick example: macro on, manual shutter 1/640s and forced flash
higher shutter speeds can give you more "dramatic" effects and improve brightness
all
I will answer on posts today/tomorrow. sorry for absence
|
dj516nadz
Joined: Jul 21, 2008
Posts: 14
PM |
raiderski is that ssF or ssS and is that ff on RER and macro not infinite |
jokamaciek
Joined: Feb 28, 2008
Posts: 102
From: Poland
PM |
demion U R genius I ported your patch to K800 RBF:
Code:
| ;K800i R8BF003
;for raider camdriver v633
+44140000
01A79730: 122232002E00300000 630079002d00720064 ;'-2.0'->'cy-rd' (balance cyan - red)
01A7973C: 122231002E00370000 790065002d0062006c ;'-1.7'->'ye-bl' (balance yellow - blue)
01A79748: 122231002E00330000 6f0072002d006c0062 ;'-1.3'->'or-lb' (balance orange - light blue)
01A79754: 122231002E00300000 200063007700620000 ;'-1.0'->'cwb' (Custom White Balance)
01A79760: 122230002E00370000 63006f006e00740072 ;'-0.7'->'contr' (contrast)
01A7976C: 122230002E00330000 63006f006c006f0072 ;'-0.3'->'color' (colors saturation)
01A79778: B10030002E00300000 66006f006300750073 ;'0.0'->'focus'
01A79784: 2B0030002E00330000 200045005600000000 ;'0.3'->'EV' (EV compensation)
01A79790: 2B0030002E00370000 46002e007300700064 ;'0.7'->'F.spd' (shutter speed fast)
01A7979C: 2B0031002E00300000 53002e007300700064 ;'1.0'->'S.spd' (shutter speed slow)
01A797A8: 2B0031002E00330000 2000490053004f0000 ;'1.3'->'ISO'
01A797B4: 2B0031002E00370000 7a006f006f006d0000 ;'1.7'->'zoom'
01A797C0: 2B0032002E00300000 200041004500000000 ;'2.0'->'AE' (AE lock) |
|
T300->T610->E398->K700->MPx200->3xK750->N70->K800 + PSP 2004 3.93 M33 + PS3 40GB  |
|
|
