| Author |
P910i Flip on P900? |
Muzikfreakah
Joined: Nov 24, 2003
Posts: 121
PM |
Is this possible? I dont care if the inner keyboard doesnt work. YOu see my old P900 keypad is pretty bruised already and scratched up. was thinking if it would be possible to buy the P910i flip instead? What do you think? |
|
|
CrackerJack
Joined: Apr 28, 2003
Posts: > 500
From: NE of Borneo to the NE of US
PM |
The connectors on the P900 are different compared to the P910.
This message was posted from a P910 |
Qwerty_uk
Joined: Aug 03, 2004
Posts: 408
From: Birmingham/London UK
PM |
Quote:
|
On 2005-02-02 03:11:21, CrackerJack wrote:
The connectors on the P900 are different compared to the P910.
|
|
....although the contacts in the middle are the same. It has been suggested that these may be sufficient for the front buttons to work, and that the extra ones are for the keyboard. In which case there's a chance. This is just guesswork though - I don't know if anyone's actually tried, and it probably doesn't work. |
djkizlive
Joined: Dec 22, 2004
Posts: > 500
From: E. Midlands, UK.
PM |
I will try it tomorrow and get back to you on that.
-I offer a P800/900/910 Repair Service for next to nothing-
-No job too big or small. PM for Details!- |
gardar
Joined: Mar 22, 2004
Posts: > 500
From: Reykjavik, Iceland.
PM, WWW
|
at least the P800 and P900 or P910 flip doesnīt fit
P800 - P910i - P1i - and some non-P  phones... |
djkizlive
Joined: Dec 22, 2004
Posts: > 500
From: E. Midlands, UK.
PM |
If the P910 flip works on the P900 i'll take some pics, i don't think i've seen any before. Would be cool if it worked
-I offer a P800/900/910 Repair Service for next to nothing-
-No job too big or small. PM for Details!- |
gardar
Joined: Mar 22, 2004
Posts: > 500
From: Reykjavik, Iceland.
PM, WWW
|
Quote:
|
On 2005-02-02 15:08:08, djkizlive wrote:
If the P910 flip works on the P900 i'll take some pics, i don't think i've seen any before. Would be cool if it worked
|
|
Yup, and with a P905 (a P900 with P910 firmware) it could be a chance to get the QWERTY keypad to work.... if it fits and works with flip closed....
P800 - P910i - P1i - and some non-P phones... |
djkizlive
Joined: Dec 22, 2004
Posts: > 500
From: E. Midlands, UK.
PM |
As mentioned many times before, the keyboard on the back of the flip will not work because the P900 mainboard was never designed to support it.
Even if all the contacts were in the right place, the P900 board would not recognize it.
Sorry to dissapoint you!
-I offer a P800/900/910 Repair Service for next to nothing-
-No job too big or small. PM for Details!- |
gardar
Joined: Mar 22, 2004
Posts: > 500
From: Reykjavik, Iceland.
PM, WWW
|
Quote:
|
On 2005-02-02 15:13:30, djkizlive wrote:
As mentioned many times before, the keyboard on the back of the flip will not work because the P900 mainboard was never designed to support it.
Even if all the contacts were in the right place, the P900 board would not recognize it.
Sorry to dissapoint you!
|
|
Well if all the pins fit are you sure then??? Im not sure... if they fit! We were told that the P900 hardware couldnīt ever use MS PRO DUO cards, but then it worked..... huh?
_________________
Owner of Sony Ericsson P910i, P800 and T300
[ This Message was edited by: gardar on 2005-02-02 14:26 ] |
djkizlive
Joined: Dec 22, 2004
Posts: > 500
From: E. Midlands, UK.
PM |
It might be possible using P910 firmware on a P900 mainboard, but i seriously doubt it. Like i said, i'll give it a try tomorrow and post the results.
-djkizlive
-I offer a P800/900/910 Repair Service for next to nothing-
-No job too big or small. PM for Details!- |
gardar
Joined: Mar 22, 2004
Posts: > 500
From: Reykjavik, Iceland.
PM, WWW
|
Quote:
|
On 2005-02-02 15:50:48, djkizlive wrote:
It might be possible using P910 firmware on a P900 mainboard, but i seriously doubt it. Like i said, i'll give it a try tomorrow and post the results.
-djkizlive
|
|
I donīt think it works, I was just saying that there is nothing stable in this world and anything can heppen.....
Do you own a P900 with p910 firmware??? |
djkizlive
Joined: Dec 22, 2004
Posts: > 500
From: E. Midlands, UK.
PM |
No, but i will have one on Friday.
-I offer a P800/900/910 Repair Service for next to nothing-
-No job too big or small. PM for Details!- |
djkizlive
Joined: Dec 22, 2004
Posts: > 500
From: E. Midlands, UK.
PM |
Update!
As many of you were asking, i decided to test the P910 flip on a P900 phone.
It did not work. Even though the phone was responding to the keys being pressed, it was not doing the desired action.
For example, pressing a number would bring up my Contacts.
I didn't bother trying the P900 flip on a P910 because
A) It's pointless
and B) If the P910 flip doesn't work in the P900, then it's not going to work the other way around either
Here are some pictures of the internal pins of both phones.

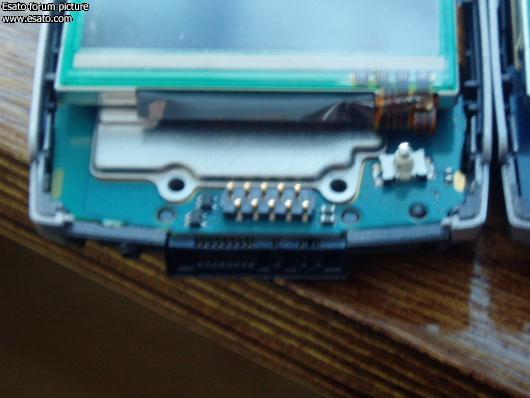

P900 Pins

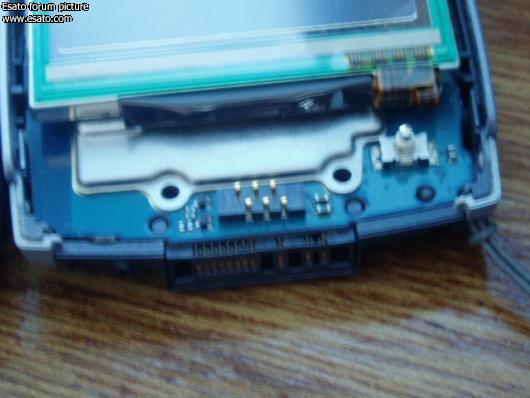

P910 Pins

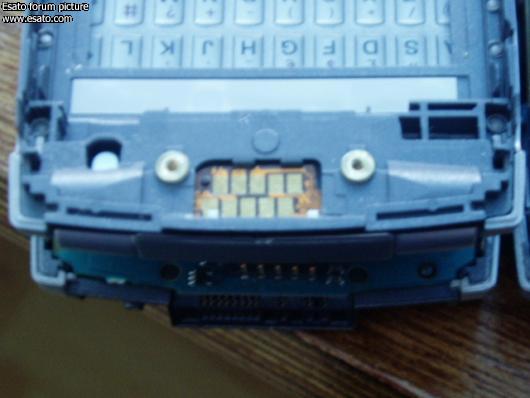

P900 Flip Contacts

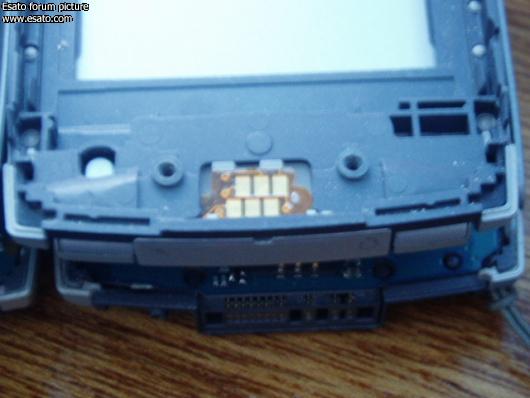

P910 Flip Contacts
Hope this puts your mind to rest.
-djkizlive
-I offer a P800/900/910 Repair Service for next to nothing-
-No job too big or small. PM for Details!- |
Qwerty_uk
Joined: Aug 03, 2004
Posts: 408
From: Birmingham/London UK
PM |
Good work djkizlive. Now we can all stop wondering.
Interesting that it does something though. But not very useful. |
djkizlive
Joined: Dec 22, 2004
Posts: > 500
From: E. Midlands, UK.
PM |
Cheers
Perhaps different results may be obtained with P910 firmware on a P900, but i don't have one to test it on right now.
For my next project, i want to put a blue backlight in the P910's flip. What are your thoughts on this? Possible or not?
-djkizlive
-I offer a P800/900/910 Repair Service for next to nothing-
-No job too big or small. PM for Details!- |
|
|
