| Author |
K700i as a faxmodem using Bluetooth and PC - how to? |
CyberVisitor
Joined: Dec 21, 2001
Posts: > 500
PM |
Has any one managed to do it? I've been trying for very long now without any luck. I'm using Windows XP:s built in fax software.
Any suggestions - or even better - any short guides available? | |
|
HjJ
Joined: Jul 02, 2004
Posts: 185
PM |
Last time I checked, the K700i did not have a fax modem. |
blayv
Joined: Oct 24, 2004
Posts: > 500
From: Srbija
PM |
It's easier when you use software you got with bt. Just go to setup wizard choose dial-up service, and enter settings for your provider. After that you can access it from my at places or as any other dial-up from control panel/connections. If you don't want it that way go to control panel/connection/create new dial-up connection and choose bluetooth something instead of your pc modem. No drivers are needed but u must have sp2 for this.
This message was posted from a T610 |
contribute100
Joined: Jun 02, 2004
Posts: 49
PM |
make sure you have a fax subscription.
and the service is activated in your SIM card. |
fu1at
Joined: Nov 01, 2003
Posts: 325
From: Selangor, Malaysia
PM |
huh that's weird, i can use my K700i connect with my Notebook IrDa and make a fax out yesterday.
and i used my K700i connect with my Ipaq to make a Dial-up thru internet this morning.
how come there is no modem if i manage to do the above task?
 J200, W550i, K750i, M600i, HBH-30, HBH-660, HBH-608, HBH-PV700, HBH-610, MXE-60, CLA-60, MMC-60, CDS-60, |
CyberVisitor
Joined: Dec 21, 2001
Posts: > 500
PM |
@fu1at
There is a modem! "I" just can't make it work...! Please share how you managed to set it up. |
fu1at
Joined: Nov 01, 2003
Posts: 325
From: Selangor, Malaysia
PM |
there's is a IrDa modem driver download at  official site. try to download and install it.
once u had installed it, turn on your IrDa on K700i and direct face it to your pc/notebook IrDa port.
Immediately your pc/notebook will will capture the IrDa modem on your COM port.
by then run your pc/notebook fax software. try to select your fax modem from your fax software and choose the K700i IrDa modem as your fax modem.
it's kinda complicated. u have to connect your K700i and link it with your pc/notebook before u can run your fax software.
not only that, u have to make a manual set your modem to K700i everytime u wanted to use it.
this is because the moment the IrDa or bluetooth modem didn't connect to any of your COM port. the setting will be gone and u have to manually set it back again.
i hope the above explaination could help u.
cheers
p/s if u still can't i will try to organize some picture to assist u. by the way.... windows XP sp2 have built in fax option allow u to fax out anything u want by not using third party software.
_________________
[ This Message was edited by: fu1at on 2004-12-21 10:19 ] |
HjJ
Joined: Jul 02, 2004
Posts: 185
PM |
Quote:
|
On 2004-12-21 10:07:41, fu1at wrote:
huh that's weird, i can use my K700i connect with my Notebook IrDa and make a fax out yesterday.
and i used my K700i connect with my Ipaq to make a Dial-up thru internet this morning.
how come there is no modem if i manage to do the above task?
|
|
There is a modem for sure, but my R2L001 K700i, and several others' phones report that they do not support fax.
Maybe SE have inserted fax in a later release? Could you tell us your firmware version, please?
|
fu1at
Joined: Nov 01, 2003
Posts: 325
From: Selangor, Malaysia
PM |
my firmware R2AE.
J200, W550i, K750i, M600i, HBH-30, HBH-660, HBH-608, HBH-PV700, HBH-610, MXE-60, CLA-60, MMC-60, CDS-60, |
fu1at
Joined: Nov 01, 2003
Posts: 325
From: Selangor, Malaysia
PM |

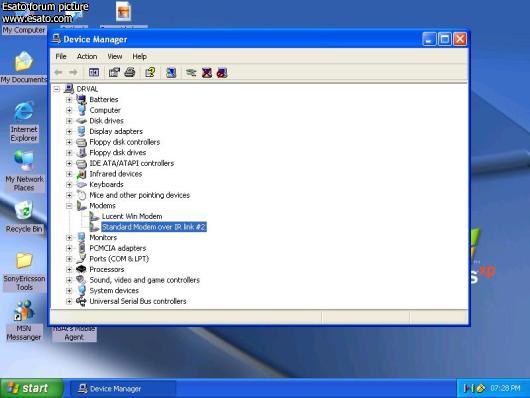

my notebook Device Manager

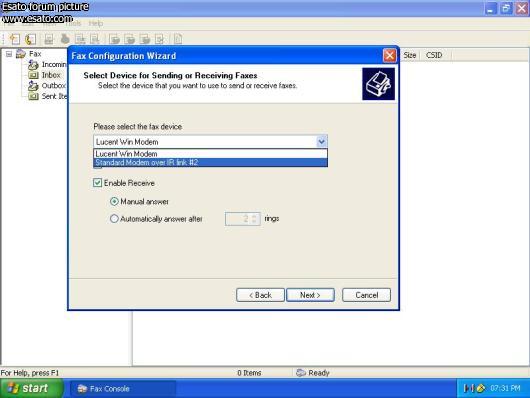

my windows fax setting
J200, W550i, K750i, M600i, HBH-30, HBH-660, HBH-608, HBH-PV700, HBH-610, MXE-60, CLA-60, MMC-60, CDS-60, |
jochen
Joined: Jan 25, 2005
Posts: 1
PM |
Hello,
I'm having the same problem with my K700i and Psion Netbook. The response codes from the K700i are as if there is no faxmodem built in.
The response to "AT+GCAP" is "+CGSM, +DS". There is a "+FCLASS" missing.
The response to "AT+FCLASS=?" is "(0)", that means "no fax".
The response to "AT+FCLASS=2" is "ERROR".
With this behaviour faxing is impossible.
Can someone who has fax working on K700i test the above commands?
Are there specials things needed for fax to work? For example special init string, disabling gprs or something other?
Jochen
|
CyberVisitor
Joined: Dec 21, 2001
Posts: > 500
PM |
@jochen
I have no idea how fu1at managed to get it to work! I've been trying to use the K700i as a faxmodem for a long time without any luck. I can use it as a "modem" to connect to other "modems" both using cable and bluetooth, but faxing... NO!!!
I digged through a source at SE and he is very very certain that the built in modem is a "modem" only, not a faxmodem. So, it's actually impossible to send/recieve faxes using the K700i built in modem when used as an external modem - for sure!
I'm sure fu1at has managed to install the modem in his computer and select it in the fax application (as I have too), but actually getting the modem initiated and dialing another fax machine... NO WAY!!! | |
|
