Playstation portable specs! |
axxxr
Joined: Mar 21, 2003
Posts: > 500
From: Londinium
PM, WWW
|
Seems just a tad premature, but Expansys has the PlayStation Portable available pre-order on their website. They don’t list a price, but they do list specs, which we’re reproducing here in case Sony forces them to take down the page:
http://www.expansys-usa.com/product.asp?code=PSP
UMD (Universal Media Disc): 60mm; Laser Diode:660nm; Dual Layer :1.8GB; Transfer Rate:11Mbps; Shock Proof; Secure ROM by AES; Unique Disc ID
PSP CPU CORE: MIPS R4000 32bit Core; 128bit Bus; 1 - 333MHz @ 1.2V; Main Memory :8MB (eDRAM); Bus Bandwidth :2.6GB/sec; I-Cache, D-Cache; FPU, VFPU (Vector Unit) @ 2.6GFlops; 3D-CG Extended Instructions
PSP Media Engine: MIPS R4000 32bit Core; 128bit Bus; 1 - 333MHz @ 1.2V; Sub Memory:2MB(eDRAM) @ 2.6GB/sec; I-Cache, D-Cache; 90nm CMOS
PSP Graphics Core 1: 3D Curved Surface + 3D Polygon; Compressed Texture; Hardware Clipping, Morphing, Bone(8); Hardware Tessellator; Bezier, B-Spline(NURBS); ex 4x4, 16x16, 64x64 sub-division
PSP Graphics Core 2: ‘Rendering Engine’ + ‘Surface Engine’; 256bit Bus, 1-166 MHz @ 1.2V; VRAM :2MB (eDRAM); Bus Bandwidth :5.3GB/sec; Pixel Fill Rate :664 M pixels/sec; max 33 M polygon /sec(T&L); 24bit Full Colour: RGBA
PSP Sound Core: VME; Reconfigurable DSPs; 128bit Bus; 166MHz @1.2V; 5 Giga Operations /sec; CODEC; 3D Sound, Multi-Channel Synthesizer, Effecter, etc
AVC Decoder: AVC (H.264) Decoder; Main Profile; Baseline Profile; @Level1,Level2,Level3; 2Hours(High Quality) - DVD movie; 4Hours(Standard Quality) - CS Digital
I/O: USB 2.0; Memory Stick; Extension Port (reserved); Stereo Head phone Out
Communication: Wireless LAN (i802.11); IrDA; USB 2.0
[addsig] |
|
|
wapchimp
Joined: Jun 09, 2002
Posts: > 500
From: Land of the chimps
PM, WWW
|
I'm gunna get 1
[addsig] |
axxxr
Joined: Mar 21, 2003
Posts: > 500
From: Londinium
PM, WWW
|
And me!!...
[addsig] |
Sutitan
Joined: Dec 23, 2003
Posts: 327
PM |
Only if it was a phone *drools* |
MTNT68i
Joined: Jul 18, 2003
Posts: 310
From: Denmark
PM |
Ngage is going to crumble ounder the feet of the PSP heheheh looks cool..
-Attribute to competence what can adequately be explained by luck. |
axxxr
Joined: Mar 21, 2003
Posts: > 500
From: Londinium
PM, WWW
|
The Gizmondo(previously known as Gametrac)is the only likely competition..I don't think Nintendo DS will quite hit the mark.
http://www.gametrac.com/flash.asp
[addsig] |
BOSSHOGG
Joined: Dec 19, 2002
Posts: > 500
PM |
I wouldn't trust that spec list as far as I could throw it. Still got a while to go, and Sony have Despecced every piece of hardware they released from their original specs since the ps2.
The PSX got released minus all the multimedia stuff and a few other things, same goes for the ps2 hdd, the promised jukebox got dropped because it wasn't ready.

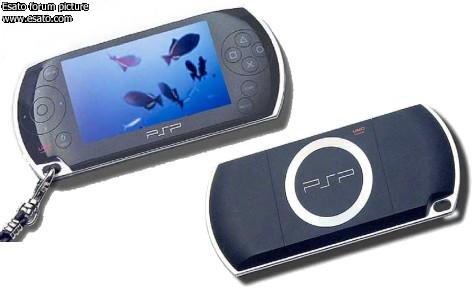

And that picture ain't the final thing either, dunno why expansys even have it up. |
batesie
Joined: Feb 13, 2004
Posts: > 500
From: London, UK
PM |
i'm sure i saw that the sound core included support for dolby digital? but it doesnt say at expansys. looks pretty cool anyway... :-)
This message was posted from a P900 |
MTNT68i
Joined: Jul 18, 2003
Posts: 310
From: Denmark
PM |
wow the Gizmo thing looks wuite hardcore
-Attribute to competence what can adequately be explained by luck. |
djpowelly
Joined: Jun 07, 2003
Posts: > 500
From: The UK!
PM |
WOW! That looks kool! I want 1!
 djpowelly |
Sentertainment
Joined: Jan 04, 2004
Posts: 290
PM, WWW
|
that graphics power seem a little too much for a handheld...the rest seems a little more reliable.
This message was posted from a WAP device |
djpowelly
Joined: Jun 07, 2003
Posts: > 500
From: The UK!
PM |
Ummm.. yeh, reading them, u hav a point... will be mega expensive as well
djpowelly |
batesie
Joined: Feb 13, 2004
Posts: > 500
From: London, UK
PM |
£300? probably make ther profit on the games...
This message was posted from a P900 |
axxxr
Joined: Mar 21, 2003
Posts: > 500
From: Londinium
PM, WWW
|
Sony yesterday spilled the beans on the chip it plans to use to power the upcoming PlayStation Portable (PSP).
The PSP chipset comprises a number of components: the CPU, a media processor, a 3D graphics engine, a security processor and a power manager.
The PSP's MIPS R4000-based CPU will run at up to 333MHz, Sony chip designer Masanobu Okabe revealed at the Hot Chips conference in Stanford University, California. Its frontside bus runs at up to 166MHz, with both frequencies controlled by processor load. It contains a vector processing engine.
Throttling back the core and bus frequency are accompanied by lowering the core voltage from up to 1.2V down to around 0.8V. The chip's power manager can also power down unused functional elements to further conserve battery life. The 6m-transistor chip will be fabbed at 90nm, Okabe said
The PSP's graphics sub-system will operate across a 512-bit bus and will be capable of rendering 664m pixels per second and 35m polygons per second. The core operates at 166MHz, half the speed of the main CPU, and included 2MB of integrated buffer DRAM. A further 2MB of embedded DRAM is dedicated to the PSP's media processor.
The graphics engine supports directional lighting, clipping, environment projection and texture mapping, fogging, alpha blending, depth and stencil tests, vertex blending for morphing-style effects, and dithering, all in 16- or 32-bit colour. It uses
The media engine - or Virtual Mobile Engine, as Sony calls it - has a 24-bit programmable data path to allow it to cope with different audio and video codecs, though it will primarily use the MPEG 4 H.264 codec. Okabe claimed the VME can be reconfigured in a single 166MHz clock cycle.
Sony will also build in a dedicated security engine, which it hopes will eliminate game piracy and attempts to hack the system.
Okabe's presentation remains unclear as to the level of integration within the PSP. Are the media, graphics, security and main processor implemented on separate chips or a single die?
Sony confirmed the PSP's support for USB 2.0, MemoryStick and "mobile" DDR SDRAM, 32MB of it. Previously, the company has discussed the device's infra red connectivity and 802.11 wireless networking support, but Okabe did not touch on this elements of the handheld's design.
The PS will feature a 4.3in, 480 x 272 widescreen LCD, weigh 260g and measure 17 x 7.4 x 2.3cm. It uses a 1.8GB, 6cm optical disc system - dubbed 'Universal Media Disc' - for content storage.
[addsig] |
mince-inside
Joined: May 09, 2004
Posts: 452
From: Made in Alnwick living in Scot
PM |
What no built-in VGA camera!
|
|
|
Posted: 2004-05-04 23:34
