Author Nokia Lumia 920 PureView Thread
Guarulhos
Nokia 808 PureView
Joined: Jan 02, 2011
Posts: > 500
From: Guarulhos - Brazil
PM
Posted: 2012-09-05 18:07
Reply with quoteEdit/Delete This PostPrint this post

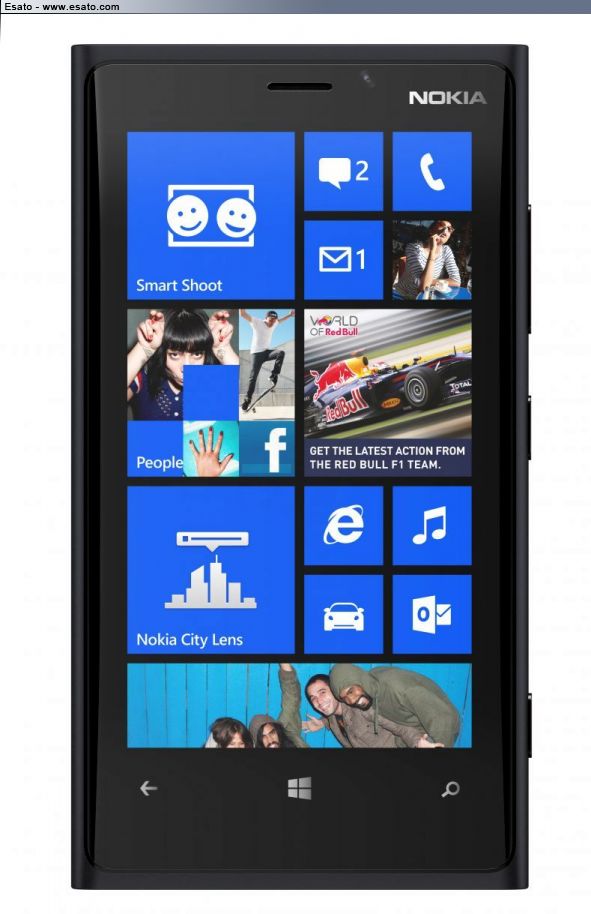

Nokia Lumia 920 PureView Key Features:

- 3G Network: HSDPA 850 / 900 / 1900 / 2100 ( HSDPA, 42 Mbps; HSUPA, 5.76 Mbps)

- 4G Network - LTE 800 / 900 / 1700 / 1800 / 2100 / 2600 (LTE, Cat3, 50 Mbps UL, 100 Mbps DL)

- Connectivity: Wi-Fi 802.11 a/b/g/n, Wi-Fi Direct, Bluetooth v3.1 With A2DP, EDR, MicroUSB v2.0 On-the-go Support And NFC

- Dimensions 130,3 x 70,8 x 10,7 mm

- Weight 185 Grams.

- Large Display 4.5" IPS TFT PureMotion WXGA HD+ (~332 Ppi Pixel Density) With Corning Gorilla Glass 2

- Screen Color Depth 24 bits

- Synaptics ClearPad Series 3 (Premium Mobile Touch Solution)

- 32 GigaBytes Memory Internal (Not Expansive Memory)

- 1 GigaByte Ram

- CPU Qualcomm MSM8960 Snapdragon S4 Dual - Core Krait 1.512 GHz (SemiConductor Technology 28 nm)

- GPU Adreno 225 Or Adreno 320 (Chinese Version)

- Windows Phone 8 (Portico)

- Microsof Office Applications

- Internet Explorer 10

- Nokia Maps And Nokia Drive

- 8 MP AF Camera PureView Phase 2

- CamCorder FullHD 1080p @30 FPS

- 1.2 MP Front Chat Camera (720p Video Capture)

- HD Voice

- Dolby Mobile Sound Enhancement And Dolby Headphone Support

- Standard Battery Li-Ion 2000 mAh

- SkyDrive (7GB Storage)

- Qi Wireless Charging

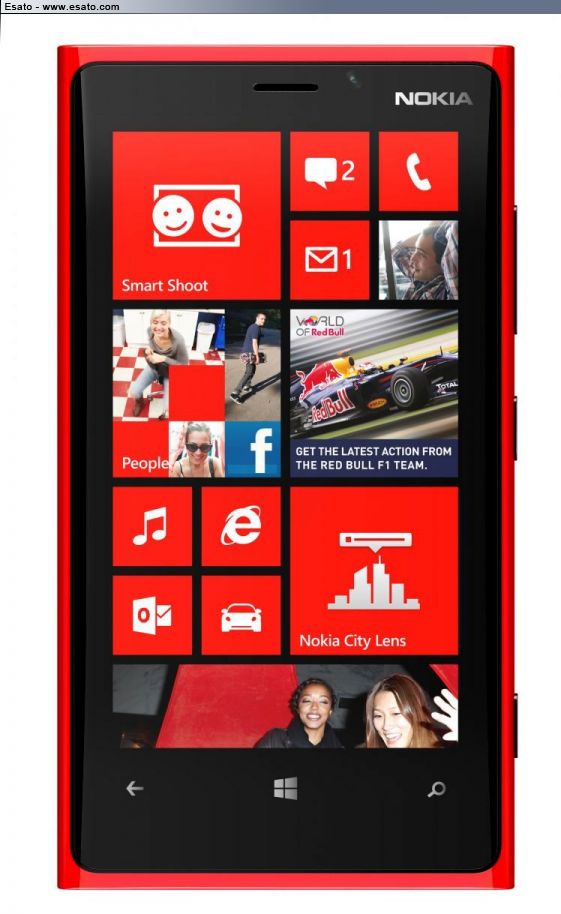

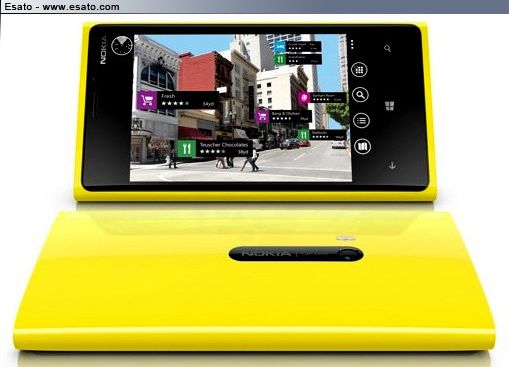

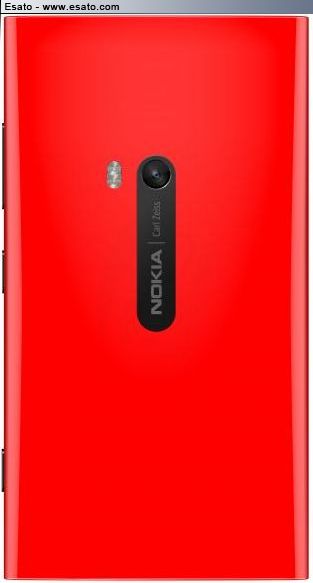

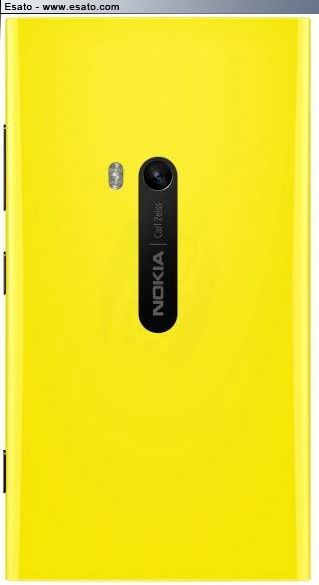

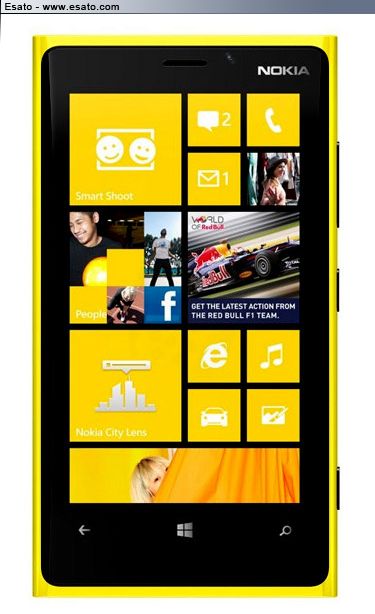

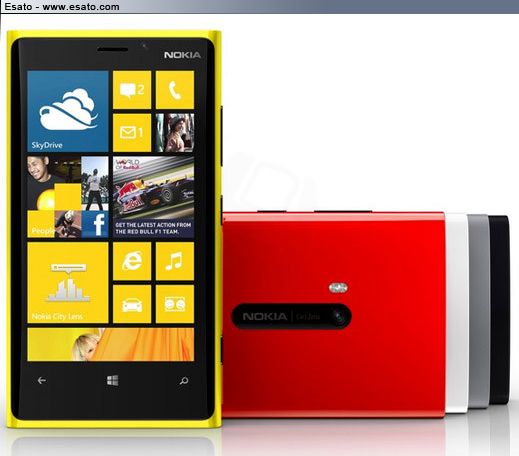

- Available In Yellow, Red, Black, White And Grey Colors





"The Science Behind Of More New Member Of FAMILY PUREVIEW"

The 8.7MP PureView one has been built from the ground up with the thought to resolve the issue that plagues smartphone cameras the most, due to their smallish sensors - low-light performance. Nokia didn't achieve that by placing a huge sensor behind the Carl Zeiss Lens, like on the 808 PureView (Phase 1), that will capture more light, but rather went the other way around.

Its engineers managed to build a tiny spring-based system called "Floating Lens" around the camera unit in the Lumia 920, that keeps it steady regardless of your shaky hands - the main reasons low light shots with phones become blurry. This true optical image stabilization is purely hardware-based, hence it allows the shutter to stay open longer, and the sensor get more light on its surface without the risk of blurring the image in the meantime.

A pretty clever idea to get a 1/3" sensor, like the one in the Lumia 920 PureView (Phase 2), perform better in certain low-light photography scenarios then the huge 1/1.2" surface in the 808 PureView (Phase 1). And we all know that when there is enough light, all flagship smartphone cameras perform with decent results now.

The 1/3" sensor is no larger than in your basic point-and-shoot camera, but the Floating Optics Mechanism make its footprint in the phone larger, hence the slightly chubbier physique of the Lumia 920 than what we are used to see in today's flagships. On the right you can see the raw specs of the new module, that Nokia is entirely an in-house endeavor, developed in conjunction with Carl Zeiss as its most challenging project to date.

Instead of trying to fix individual lens elements, like with other OIS solutions, the wholel module of the camera is wrapped in spring mechanisms. These floating optics therefore allow much greater precision, correcting for up to 500 movements per second! This is precisely what allows 8x longer shutter speeds, and ensures your pictures will get much less blurry when taking them with one hand, which we so often do with our phones, and your videos won't be shaky all over.

Then comes the LED flash - instead of going with Xenon, which has some downsides in a smartphone environment, Nokia says the recent developments in LED are leaps and bounds ahead of the advancements in Xenon, so the Lumia 920 uses the modern pulse LED for a flash. It is capable of firing an intense burst of light for a very short time, that essentially freezes a moving object. Not short to the extent Xenon does it, but much better than conventional LED flash, says Nokia. Furthermore, the LED module can serve as continuous light while filming video, and of course doubles up as a torch.

Last but not least, Microsoft has worked very closely with Nokia to interwove the Windows Phone 8 camera software exclusively for the PureView sensor in the Lumia 920 PureView (Phase 2). Not only is everything, such as autofocus, auto white balance and so on, tailor-made for the sensor, but Nokia has included its unique denoising algorithms that keep the footage looking natural in low-light conditions.



Technichal Specifications Digital Camera Lumia 920 PureView:

* Lens: Carl Zeiss Vario Tessar Wide Angle 26mm
* Construction Lens: 5 Elements, 1 Group. All Lens Surfaces Are Aspherical
* F-Number: f/2.0
* Focal Length: 3.73mm
* Focus Range: 8 Cm - Infinity
* Iso Sensitivity: 100 - 800
* Shutter Speed: Min - (1s) / Max - (1/5000s)
* Features Digital Camera: Touch Focus - Lenses Applications And Geo - Tagging
* Flash: Double Led Short Pulse High Power (4rd Generation)
* Reach In Shooting Of Flash: Up To 2,5 Meters
* AF Light: Yes (Double Led Short Pulse High Power 4rd Generation)
* Optical Image Stabiliser: Yes (Barrel Shift Type)
* Stabiliser Performance: Up To 3EV (8x Longer Shutter Speeds)
* Sensor: CMOS BSI TOSHIBA T4K34
* Format: 1/3”
* Surface: (6.00 x 4.80mm)
* Pixel Size: 1.4 Microns
* Total Pixel Are Used: 3553 x 2448 - 8.7Mpix
* Maximum Effective Pixels Resolution: 3552 x 1998 For 16:9 / 3264 x 2448 For 4:3.



Technichal Specifications Digital Camcorder Lumia 920 PureView:

* Resolutions Digital Camcorder: FULLHD 1080p (1920 x 1080) And HD 720p (1280 x 720)
* Quantity Frames Per Second During Recording Of Video: 30 FPS
* Recording Codec Used To Do Video: MP4
* Video Bit Rate: 21 Mbps
* Recording Audio Codec Used To Do Video: AAC Mono (HAAC Microphones)
* Audio Bit Rate: 96 Kbps
* Audio Sampling Rate: 44.1 KHz
* Light Assist For The Record Video: Yes (Double Led Short Pulse High Power 4rd Generation)
* Features Digital Camcorder: Optical Video Stabilization And Continuous Autofocus
* Other Features: Rich Recording Sound Technology (140dB Without Distortion)





[ This Message was edited by: Guarulhos on 2013-01-20 05:11 ]
Guarulhos
Nokia 808 PureView
Joined: Jan 02, 2011
Posts: > 500
From: Guarulhos - Brazil
PM
Posted: 2012-09-05 18:15
Reply with quoteEdit/Delete This PostPrint this post
Lumia 920 PureView Very...Very...Very...Very Nice Device !

Carl Zeiss Lens Vario Tessar Wide Angle 26mm (f/2.0), PureView With Optical Image Stabilization, Camcorder FullHD, PureMotion HD+, Wireless Charging, 32 Gigabytes Mass Memory, Windows Phone 8, 1.5 Ghz Dual Core Krait, 1 Gigabyte Memory Ram, Design Superb... Lumia 920 PureView Will Be a Great Success Criticizes And Sales !!!

P.S: Viva The Empire Nokian !!!
Guarulhos
Nokia 808 PureView
Joined: Jan 02, 2011
Posts: > 500
From: Guarulhos - Brazil
PM
Posted: 2012-09-05 18:26
Reply with quoteEdit/Delete This PostPrint this post
Once Upon a Time Samsung And HTC !!!
Bonovox
LG G4
Joined: Apr 13, 2008
Posts: > 500
PM
Posted: 2012-09-05 18:36
Reply with quoteEdit/Delete This PostPrint this post
Really excellent specs but I wish someone else had started this thread Finally Nokia against the big boys.
Phone?? What phone??
Guarulhos
Nokia 808 PureView
Joined: Jan 02, 2011
Posts: > 500
From: Guarulhos - Brazil
PM
Posted: 2012-09-05 18:43
Reply with quoteEdit/Delete This PostPrint this post
Finally Nokia Against The Big Boys...

And Best She Face The All And Win !!!
Bonovox
LG G4
Joined: Apr 13, 2008
Posts: > 500
PM
Posted: 2012-09-05 19:18
Reply with quoteEdit/Delete This PostPrint this post
http://m.gsmarena.com/nokia_unveils_wp8_lumia_920_pureview-news-4760.php

Full specs here. You forgot SD card support, and S4 processor. Silver looks best or red

_________________
Material things don't matter,but Rock n Roll does!!!!

HTC Mozart
[ This Message was edited by: Bonovox on 2012-09-05 18:24 ]
Sugarkane
Model not set
Joined: Jun 12, 2012
Posts: 38
From: Hrvatska
PM
Posted: 2012-09-05 20:47
Reply with quoteEdit/Delete This PostPrint this post


I think somebody is cheating our trust in Nokia...
Oops!


[ This Message was edited by: Sugarkane on 2012-09-05 19:59 ]
Guarulhos
Nokia 808 PureView
Joined: Jan 02, 2011
Posts: > 500
From: Guarulhos - Brazil
PM
Posted: 2012-09-05 21:11
Reply with quoteEdit/Delete This PostPrint this post
A Simple Error Editing !!!
[ This Message was edited by: Guarulhos on 2012-11-09 01:04 ]
Guarulhos
Nokia 808 PureView
Joined: Jan 02, 2011
Posts: > 500
From: Guarulhos - Brazil
PM
Posted: 2012-09-05 21:27
Reply with quoteEdit/Delete This PostPrint this post
In Some Minutes... Seconds Will Some Sony Or Samsung Boy Asshole Criticize By The Simple Fact Of Envy !!!
Oooops !!! Appeared Soon Above The First "Sony Boy" Needy Of Attention !!!

Bullshit Part... Congratulations Nokia By Innovation And Pioneering !!!
Bonovox
LG G4
Joined: Apr 13, 2008
Posts: > 500
PM
Posted: 2012-09-05 21:34
Reply with quoteEdit/Delete This PostPrint this post
Will you stop going on about fanboys and stop trolling all the time. Talk about the phone stop comparing it with everything else. Last week you were praising Samsung as the king now Nokia again. Make your mind up Your like a stuck record repeating the same comments over and over and giggling to yourself like a child

_________________
Material things don't matter,but Rock n Roll does!!!!

HTC Mozart
[ This Message was edited by: Bonovox on 2012-09-05 20:36 ]
etaab
Nokia N8
Joined: Jan 23, 2004
Posts: > 500
From: UK - South Yorkshire
PM
Posted: 2012-09-05 21:39
Reply with quoteEdit/Delete This PostPrint this post
Looks great. Nokia are back in the game now.

Sadly, it didnt come with a 41mpx sensor which is rather disappointing. I would have liked an 808 beater.
Check me out on Instagram ! search for etaab !
Bonovox
LG G4
Joined: Apr 13, 2008
Posts: > 500
PM
Posted: 2012-09-05 21:40
Reply with quoteEdit/Delete This PostPrint this post
Maybe that's planned soon. I would prefer the silver color for this phone yellow is too loud
Phone?? What phone??
etaab
Nokia N8
Joined: Jan 23, 2004
Posts: > 500
From: UK - South Yorkshire
PM
Posted: 2012-09-05 21:50
Reply with quoteEdit/Delete This PostPrint this post
Silver would make it look like an iPhone 3GS.

Even more so with the lesser phone announced today with its curved corners. Im sure Nokia are not wanting to get into Apple's bad legal books.
Check me out on Instagram ! search for etaab !
Guarulhos
Nokia 808 PureView
Joined: Jan 02, 2011
Posts: > 500
From: Guarulhos - Brazil
PM
Posted: 2012-09-05 21:52
Reply with quoteEdit/Delete This PostPrint this post
Etaab...

Digital Zoom Lossless And Pixel Oversampling Would Really The "Icing On The Cake" The Lumia 920 PureView !

But... The Integration Of Optical Image Stabilization And a Lens Carl Zeiss Vario Tessar Ultra Bright (f/2.0), No Doubt
Do Of Lumia 920 PureView a Of More Cameraphones Of Story, To Side Of Awards 808 PUREVIEW, NSERIES N8, PIXON 12, CYBERSHOT C905, CYBERSHOT C901, NSERIES N82, NSERIES N93i And CYBERSHOT K810 !!!
Bonovox
LG G4
Joined: Apr 13, 2008
Posts: > 500
PM
Posted: 2012-09-05 21:57
Reply with quoteEdit/Delete This PostPrint this post
Oh come on looks nothing like ANY iPhone. Looks nice in white here. Tiles now animated in different ways and also you can animate a photo

http://m.youtube.com/#/watch?v=XOBvHjIU1Wg

_________________
Material things don't matter,but Rock n Roll does!!!!

HTC Mozart
[ This Message was edited by: Bonovox on 2012-09-05 21:04 ]
