| Author |
Modded camera driver for SE C902 by chombos1 (v2.5 BETA1) |
chombos1
Joined: Jun 06, 2007
Posts: > 500
From: IRAN.
PM |
hi everybody.
before anything.. i should thank --Strong-- and --Brazuka-- for their valuable efforts on K850 camdrivers.
this driver is based on original C902 v2.1 camdriver.
the driver is also reported to work well on W902
Changes
- increased picture buffer size (from strong).
- white balance color correction implementation (from brazuka) to eliminate (red to pink) conversion.
- increased overall color saturation.
- you can use the document mode as a night mode with focus now (increased exposure, contrast, brightness, sharpness and photoflash pulse-width) -the document mode can still be used for it's original purpose!.
- increased photoflash electrical power (now uses max 1400mA instead of 1200).
- change in flash White balance to avoid yellow tints.
- default iso100.
- NOTE: auto white balance is fixed to a predefined value due to some conflicts with the WB_CC.
- Longer Exposure time in (night landscape mode) to avoid noise - remember! keep your hands steady!! really steady!
- Video frame rate in night mode is now 24-26fps
- a new White balance system (( extremely improved color reproduction - still needs some work though!!! ))
- some tweaks in the jpeg compression and etc...
Bugs
- changing scene type from something back to auto does not work most of the time (a restart of the camera is needed)
- sometimes the white balance will go on the incandescent instead!!! - then don't worry, it happens once in a hundred and you can fix it by focusing again on the scene.
- flash WB needs some work.
you can change the values in the driver to match your own desired effect.
and a little tip for the WB_CC:

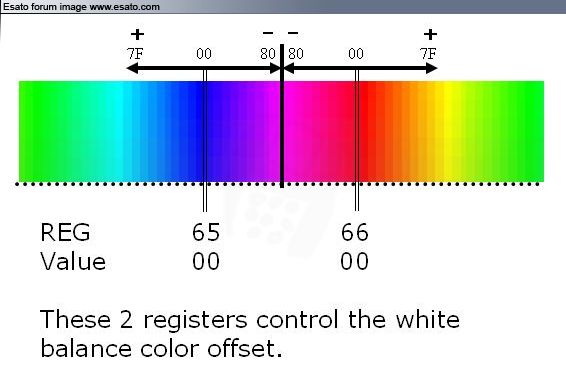

use the color table above to adjust the WB_CC...
for example: you see that your RED's are pink in the photo... then you should point the white balance to yellow so that the pinks go on the red and so on about any other color.
i should say that i no longer have a C902 (my brother has it now!!!)
- Advanced mode (the EV and Zoom buttons take care of everything)! --- FAILED ---
C902 modded camdriver v2.5 BETA1 by Chombos1:
http://www.4shared.com/file/96759253/62722db7/camdriver0.html
changes in the new 2.5 version:
- a new White balance system (( extremely improved color reproduction - still needs some work though!!! ))
- some tweaks in the jpeg compression and etc...
this new white balance will correct the color just before you auto focus on a scene....
it means that if you want to take a picture, it will correct the colors right before the auto focus starts.
on non auto focus scenes you can use the EV button to correct the scene colors.
bugs:
- sometimes the white balance will go on the incandescent instead!!! - then don't worry, it happens once in a hundred and you can fix it by focusing again on the scene.
- flash WB needs some work.
Some samples with the new V2.5 BETA1:
http://www.4shared.com/file/96925720/700d2af9/samples.html
some minor tweaks and fixes (nothing new compared to the beta)
C902 modded camdriver v2.1 final by Chombos1:
http://www.4shared.com/file/8[....]driver_chombos1_v21_final.html
old beta one.
http://www.4shared.com/file/7[....]driver_chombos1_v204_beta.html
and in case you didn't like it... here's the original:
http://www.4shared.com/file/7[....]bf0ee40/C902_original_v21.html
[ This Message was edited by: chombos1 on 2009-04-21 14:06 ] |
|
|
TmZ
Joined: Mar 15, 2008
Posts: 42
From: Poland
PM, WWW
|
thx! I will test you camdriver!
I belive it's good  |
chombos1
Joined: Jun 06, 2007
Posts: > 500
From: IRAN.
PM |
thanks man.
i don't have a C902 (and the samples on it) right now so any feedback will be greatly appreciated.
but the last time i tested it... it was good.
|
imaticx
Joined: Nov 09, 2006
Posts: 107
From: Croatia
PM |
where do i put camdriver0?
|
chombos1
Joined: Jun 06, 2007
Posts: > 500
From: IRAN.
PM |
you should place it in the ifs\settings\camera on your phone's file system.
for further info on the program, download link and etc go to this thread:
http://www.esato.com/board/viewtopic.php?topic=177034 |
Luci'sPower
Joined: Oct 29, 2006
Posts: > 500
PM |
thanks for the driver
For those who believe no explanation is necessary, For those who don't none will suffice |
masada1971
Joined: Jun 05, 2008
Posts: > 500
PM |
is it compatible with c905?? |
chombos1
Joined: Jun 06, 2007
Posts: > 500
From: IRAN.
PM |
On 2009-01-09 19:50:52, masada1971 wrote:
is it compatible with c905??
no i'm afraid...
but you can copy most of the stuff in your own camdriver.
the incompatibilities are: night portrait - xenon flash settings and 8MP still pictures.
other stuff like sturation - sharpness - color correction and etc...are the same! |
chombos1
Joined: Jun 06, 2007
Posts: > 500
From: IRAN.
PM |
BTW.
the current value of color correction is based on my location, weather and temperature....
if you are experiencing too much yellow... then decrease it within the driver. |
zyonee
Joined: Aug 27, 2004
Posts: 24
From: Stockholm, Sweden
PM |
Nice driver!
Although, as can be expected of a beta driver, the white balance was quite off like you said. My pics were way to yellow, so I had to set the WB_CC_MAGENTA_YELLOW all the way down to 00. I'll shoot some pics in the cloudy weather outside today and see if my white balance needs more tweaking.
Good job! |
0kti
Joined: Dec 24, 2006
Posts: 290
From: Poland
PM, WWW
|
set the WB_CC_MAGENTA_YELLOW all the way down to 00. I'll shoot some pics in the cloudy weather outside today and see if my white balance needs more tweaking.
Good job!
yeaH i also change to 00 and it is big difference now.
no more yellow pictures
thanks for that!
Samsung Omnia 8GB + 8GB MicroSD |
TmZ
Joined: Mar 15, 2008
Posts: 42
From: Poland
PM, WWW
|
Samples:
Your settings:
WB_CC_MAGENTA_YELLOW 00:
|
chombos1
Joined: Jun 06, 2007
Posts: > 500
From: IRAN.
PM |
thanks for all the feed backs....
link has been updated with yellow lowered to 10 instead of 38 (yellow on 00 makes the bright RED colors towards pink).... all of this yellow stuff was added to compensate the RED2PINK problem.... so can any of you post some samples (with the updated driver) with RED objects in it? (((without flash)))
unfortunately it will be a while till i can have a C902 again...
but wit your help and testing i will try to improve the driver anyway i can....
thanks.!!
btw.... if you change the yellow to 00 make sure that you also change the Magenta_Cyan to a number like FA or so to prevent your pics having a magenta tint...!
[ This Message was edited by: chombos1 on 2009-01-10 17:04 ] |
zyonee
Joined: Aug 27, 2004
Posts: 24
From: Stockholm, Sweden
PM |
Ok, here are two shots of the same thing.
WB_CC_CYAN_MAGENTA=F7, WB_CC_MAGENTA_YELLOW=00:
and WB_CC_CYAN_MAGENTA=FA (like sugested), WB_CC_MAGENTA_YELLOW=00:
I think I'll stick with WB_CC_CYAN_MAGENTA=F7, since it seems the pictures are slightly darker but richer in colours. FYI: The "Knorr" logotype is really red, the lid of it is a little paler. |
chombos1
Joined: Jun 06, 2007
Posts: > 500
From: IRAN.
PM |
thanks.
can you also try it with yellow on 10 and magenta on F7!!.
i think it should give a good result with the colors.(as far as i remember in my tests)
anyway... colors are personal taste...
how about the overall quality-noise handling-sharpness-night shooting-flash-outdoors-close ups ant etc.....
thanks again for all the feedbacks! |
|
|
Posted: 2009-01-09 18:22
