| Author |
Disassemble K850i |
blackg1000
Joined: Nov 14, 2007
Posts: 2
PM |
Hi.
I'm new but I repair phones for a living and after checking out a couple of forums elsewhere about stripping down the k850 I thought I would give it a go as people were having problems with dust under the screen. I stripped one down due to water damage and got it working again so hopefully this helps.
I opened the catch for the battery, sim, etc. and loosened off the two tork screws underneath on the keypad side. I then got a small plastic clip (Ipod ones are good) to wedge the top half of the housing off. This reveals one whole half of the phone. From here it is very similar to the K800i when broken down.
Not many will need to do this as SE have identified the problem with dust as a fault so will fix it under warranty but I done this for someone because of water damage. It's pretty straight forward and when I reassembled it, nothing was on the screen and on the lens. I don't have any images to show but I hope this helps someone.
|
|
|
jawilson
Joined: Mar 30, 2005
Posts: 32
PM |
hi, thanks for that...my keypad is very very slightly wony and want to reset it. what does an ipod clip look like?
can you post the link to the other discussions or a link to the similar section to the other SE phone.
cheers |
goldenface
Joined: Dec 17, 2003
Posts: > 500
From: Liverpool City Centre
PM |
Thanks. This will come in handy to a lot of people. Some pictures would be nice from someone who has managed a housing change etc.
|
blackg1000
Joined: Nov 14, 2007
Posts: 2
PM |
Thanks, I'll upload pictures tomorrow night.
The plastic clip I used to hinge open the phone is a small green plastic clip which mostly comes supplied when you order batteries, housings for an ipod. These are good for phones like these so that no marks are left behind on the handset if done by say, a metal screwdriver. |
robii1
Joined: Oct 28, 2005
Posts: 6
PM |
See http://www.formymobile.co.uk/Dismantle/k850idisassembly.htm for K850i disassembly |
nitrodamuz
Joined: Dec 29, 2007
Posts: 2
PM |
Thanks for the Link.. this is very useful.
:cheers: |
nivo22
Joined: Dec 26, 2007
Posts: 72
PM |
anything like that for w910?? |
plankgatan
Joined: May 20, 2007
Posts: > 500
From: Sweden fur alle
PM |
so was it easy to the remove the back cover ????
what should i use to clean off the dust on the protection glass ????
a new sunglasses fibercloth and after that clean alcohol ????
(its mineral glass, so its should manage clean alcohol...any suggestion ???
(and maybe some new gloves and of course antistat bracelet)
thats should be the most tricky part, or ???

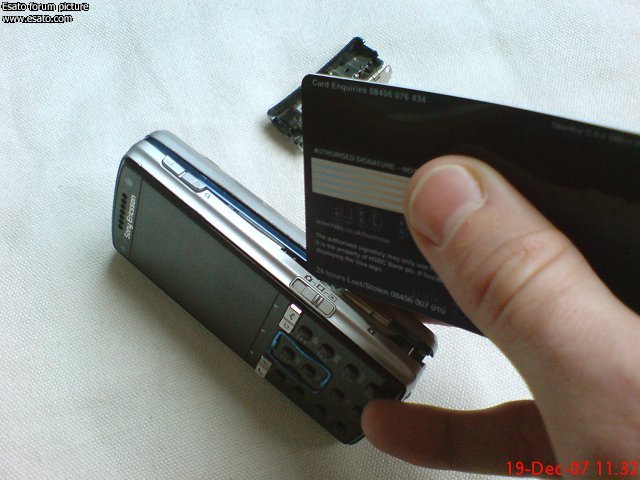

i strongley suggest to use this
_________________
I  K850,  W810 &  T29
------------------------------------
____________________________________
(t610, t630, k700, k750, k800, k810)
[ This Message was edited by: plankgatan on 2007-12-29 22:19 ] |
|
|
Posted: 2007-11-14 12:16
