Charge your k750/w800 while listening to your music with your favorite earphones! |
vxbetos
Joined: Jan 06, 2006
Posts: 14
PM, WWW
|
I was so pissed the other day because I want to listen to my mp3s but the original headset has big earplugs! The other thing that bothers me also is that..... I cant charge my phone while listening to it!.... so..... here is my solution.... hehe!!

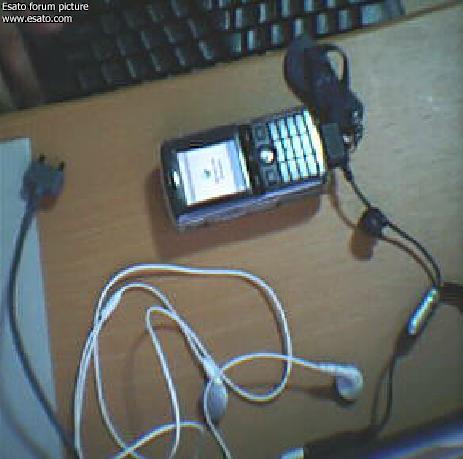

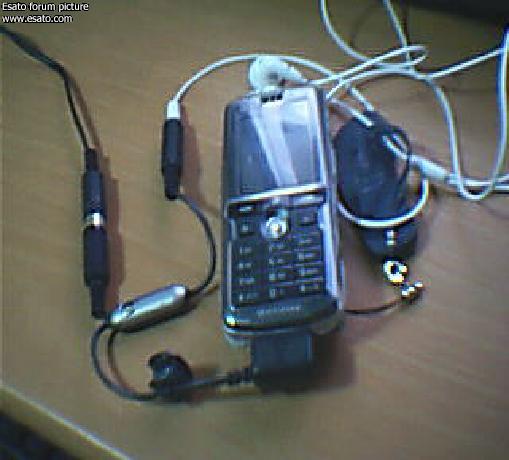

I changed the tip of my charger into a RCA type so that it could fit easily to the RCA plug on the "special headset". (I did it also to my car charger so that i could use it in my car.)
sorry i wasn't able to take pictures while doing it.. Ill try to make another converter... and I will show you guys how i did it..
No more draining of battery while listening to your mp3s!!
tip.. don't modify your original headset.. it is expensive.. just buy a fake one..
[ This Message was edited by: laffen on 2006-08-30 16:32 ] |
|
|
deluded
Joined: Sep 14, 2005
Posts: > 500
PM |
Wow! I'm impressed! It looks really cool, and it's a brilliant idea, though I'm curious as to why there isn't any similar device on sale since there are bound to be people facing a similar problem. And I must say it was very well done, the workmanship is first-class. I've got a query though, would there be a likelihood of the circuit shorting? I assume the RCA tip on your innovation is connected to the earphone jack terminals at some point? I'm not particularly technically-inclined, so I could be wrong, but I'm just a little worried that your device may damage your phone. Anyhow, it's still a really cool and functional piece of innovation.
Of all the things I've lost, I miss my mind the most. |
vxbetos
Joined: Jan 06, 2006
Posts: 14
PM, WWW
|
no.. there is really a specific pin for the charging point and the earphones are different from it.. i've been using it for a week now... so far... no side effects.. ill post my diagram later.. i'm just busy right now..
[addsig] |
zyexx
Joined: Aug 25, 2004
Posts: 127
From: Jamaica
PM |
So you made this huh...thats very creating..as they say neccessity is the mother of all invention and something like this is neccessary.
3 thumbs up |
deluded
Joined: Sep 14, 2005
Posts: > 500
PM |
Cool, really cool. One of the most fuctional yet not too hard to do mods I've seen so far.
Of all the things I've lost, I miss my mind the most. |
Pepi
Joined: Feb 02, 2005
Posts: 418
From: Bulgaria
PM |
good job! wondeful idea m8! |
bokayo
Joined: Feb 13, 2003
Posts: 198
PM |
simply........ AWESOME!!!! truly a very creative guy
 T39m! |
vxbetos
Joined: Jan 06, 2006
Posts: 14
PM, WWW
|
Ok here it is...
first, open the fastport and the microphone..
Pull a useless pin from the back and transfer it on the first blank slot.

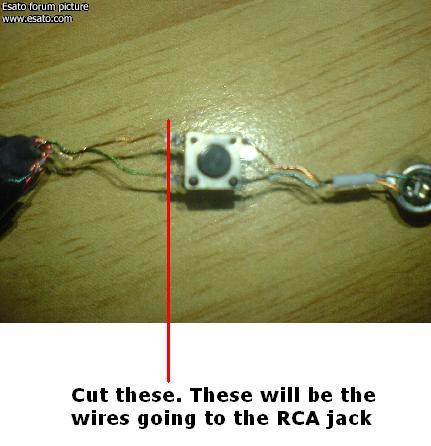

Then, check the color of the wires of your microphone. Tap those on the charging pins. Remove the microphone and the switch.
You'll be using your microphone wires as your charging wires.

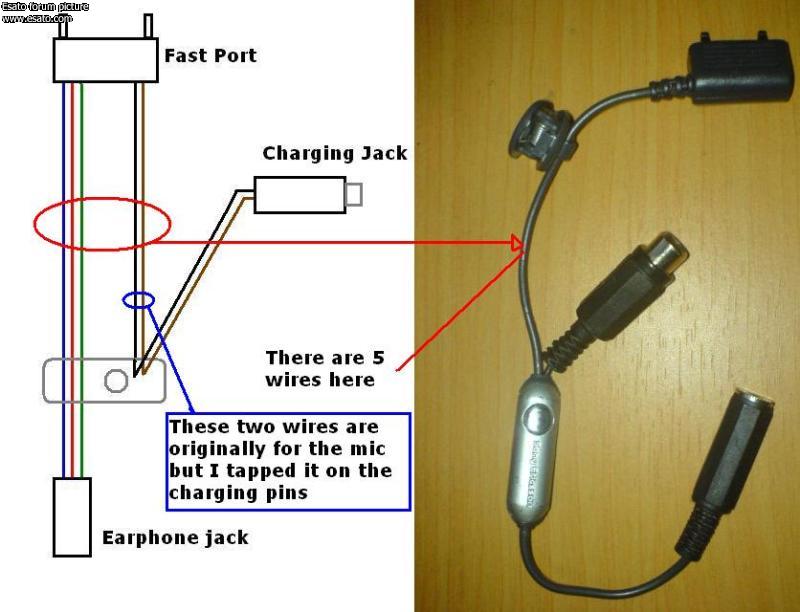

This is the diagram..
cut your wires depending on your desired length.
you can use any jack/plug for the charger. I just used RCA plugs because it is very easy to attach. |
vxbetos
Joined: Jan 06, 2006
Posts: 14
PM, WWW
|
Sorry I havn't included on how to do the earphone jack part. I'll do that next time but somehow you guys could already get the idea.. |
IRFCA_WDG-3A
Joined: Nov 24, 2005
Posts: 359
From: Rajdhani Express!!
PM |
Hmmmm..........great job mate, i think we are experimenting on similar lines.
BTW isn't it possible to add an extra pin and wire to the entire setup, at the same time, making an adaptor so that we can charge the phone while listening to the music at home, and can also plug in a mic to use the headset to talk on the move?

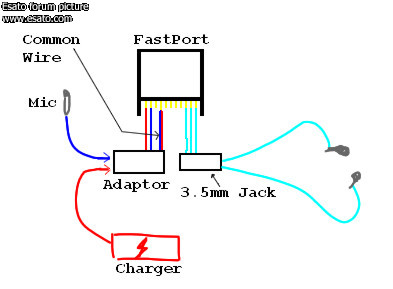

Too confusing? Maybe this diagram can help?
|
bombadil
Joined: Feb 18, 2006
Posts: 111
From: Pune, India
PM |
wow, that's some neat and original work. might wanna send in your resume to SE
I didn't let studies interfere with my education ======================================= Motorola (Forgot Model) -> Mitsubishi Trium Eclipse -> Samsung SGH E700 ->   800i -> 950i |
BobaFett
Joined: Jan 06, 2004
Posts: > 500
From: Kamino (wish it would be Lund)
PM, WWW
|
amazing job, highly respected!
BUT to charge the batt and next to it make calls, listening to music etc DO effetcs badly the batt standy and talktime later on. the charging takes longer time. the best solution to charge the batt is usually in off mode. just a thought, but as mentioned before, the idea is revolutionery.
|
jasond
Joined: Dec 31, 2005
Posts: 408
From: Australia
PM |
Fantastic work! This would be a great way to easily connect the phone to a car system, just by plugging in one simple connector!
T65> K700i> K750i> K800i> Mars. |
shadoweaver
Joined: Jan 08, 2004
Posts: 101
PM, WWW
|
@vxbetos: nice job man! keep it up. |
vxbetos
Joined: Jan 06, 2006
Posts: 14
PM, WWW
|
Thanks guys!! "might wanna send in your resume to SE??" why not?? haha!! but I'm still young... I'm only 19!! could SE hire someone who is in 2nd yr college taking up biology??:D |
|
|
