| Author |
help! W800 become dead fone! |
markztrance
Joined: Nov 18, 2006
Posts: 137
From: Dagupan, Philippines
PM |
hey, are you sure...? BTW how bout CID49?
thnx for ur info |
|
|
strizlow800
Joined: Aug 23, 2006
Posts: > 500
From: Macedonia, Skopje
PM |
I'm sure for CID36 cuz I have tested it... The W800 works even with K750 gdfs  . But I don't know for sure about the CID49... So if you don't have service cabble don't make experiments, you can kill your phone
|
markztrance
Joined: Nov 18, 2006
Posts: 137
From: Dagupan, Philippines
PM |
oh i see. thnx again.. i want to have a service cable for emergency purpose but there is no available here in my place. your right. better be careful when cracking fones. |
strizlow800
Joined: Aug 23, 2006
Posts: > 500
From: Macedonia, Skopje
PM |
For emergency cases hmm, you can build your own service cable then
Here is a tutorial in english how to make the service cable:
http://forums.se-nse.net/index.php?showtopic=3360
but there is a little problem with pictures... so if you need pictures you can check my semkd forum:
http://semkd.19.forumer.com/viewtopic.php?t=19
although the tutorial is on macedonian, the pictures can be useful
|
whatsucka
Joined: Feb 17, 2007
Posts: > 500
PM, WWW
|
the service cable seems can b very useful but y need a RJ45 in the middle??
|
strizlow800
Joined: Aug 23, 2006
Posts: > 500
From: Macedonia, Skopje
PM |
The RJ45box is ordinal telephone box/cable... You need this if you want to make the service cable 2 in 1... To work with newer (fastport connector sony ericsson phones) and with older (DB2000 phones) too...

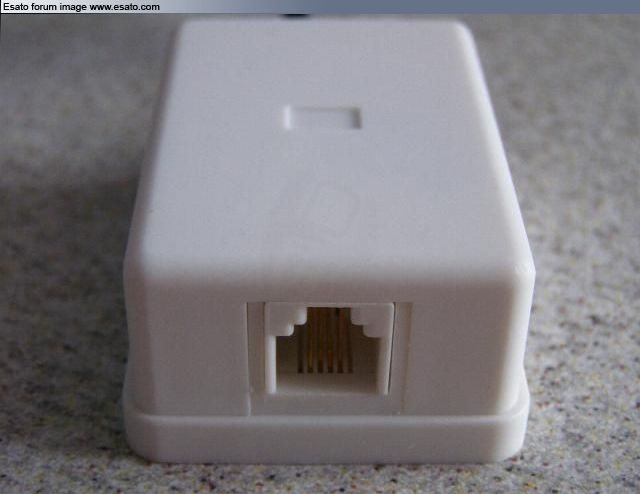

RJ45 Box:

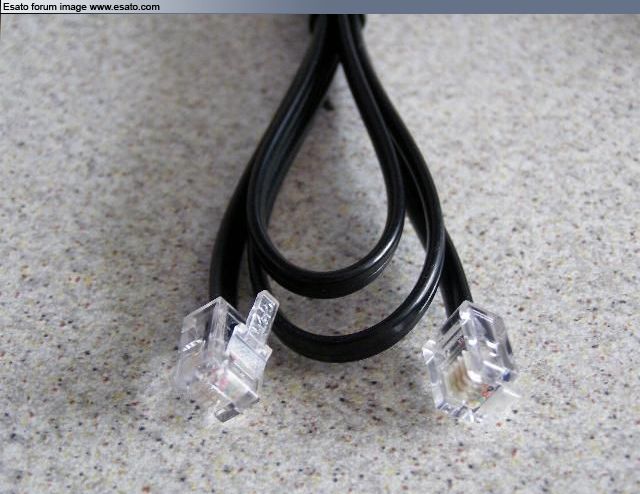

RJ45 Cable:
You can also connect the K750 connector to the RJ47 cable and connect the cable to the TxD, RxD and etc... directly without using the box... But that way you will get only "fastport  " service cable
_________________
Sony Ericsson Master strizlow800 - (Team SeMKD)
[ This Message was edited by: strizlow800 on 2008-04-06 14:21 ] |
whatsucka
Joined: Feb 17, 2007
Posts: > 500
PM, WWW
|
wait a sec... isnt RJ45 is 8 pins with 4 twisted pair?? those home phone lines r call RJ11 which is 4 pins 2 twisted pair
so which 1 i suppose to use??
|
strizlow800
Joined: Aug 23, 2006
Posts: > 500
From: Macedonia, Skopje
PM |
Well, as far as I know, you need 4 wires so it doesnt matter which phone box you are using...
|
whatsucka
Joined: Feb 17, 2007
Posts: > 500
PM, WWW
|
i got a bit confuse...

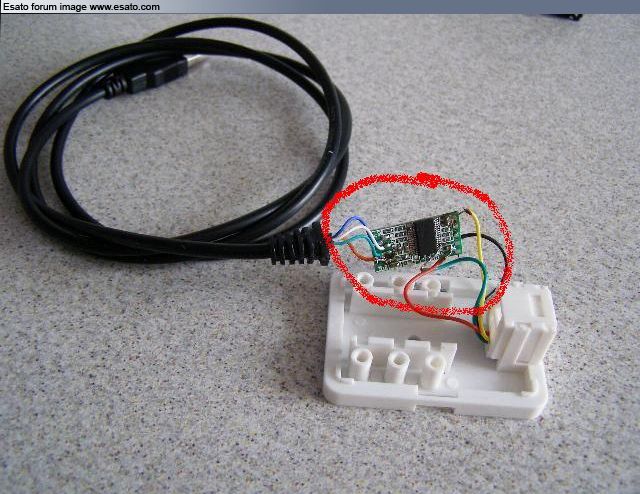

da USB part of DCU-60 is connected to the phone box but wat is that chip??
and i suppose to connect the fastport together with a rj11 cable rite??
how can i make a service cable without the phone box?? cuz im not switching around with old usb cable n the fastport cable
|
strizlow800
Joined: Aug 23, 2006
Posts: > 500
From: Macedonia, Skopje
PM |
That's the electronics from the K700 USB cable ... OR simply said "the part that makes this cable "service cable" "
|
whatsucka
Joined: Feb 17, 2007
Posts: > 500
PM, WWW
|
i dont have a k700 cable... only a cable for k750 n up... all those with fastport
the DCU-60 cable. can i still make a service cable with DCU-60 cable cuz i dont have any chip in the middle is a plain
|
Shotgun
Joined: Feb 12, 2008
Posts: 163
From: England
PM |
On 2008-04-06 09:38:58, strizlow800 wrote:
Download yourself a new GDFS (or use a copy of the backup of yours if you have one)... Then use SeTool2lite or XS++ to WRITE GDFS with the GDFS file your got. After that, it should connect successfully when you connect with XS++ so you can flash your MAIN and FS...
How long would it take to WRITE the GDFS file in SEtool?
|
whatsucka
Joined: Feb 17, 2007
Posts: > 500
PM, WWW
|
On 2008-04-08 19:59:04, Shotgun wrote:
On 2008-04-06 09:38:58, strizlow800 wrote:
Download yourself a new GDFS (or use a copy of the backup of yours if you have one)... Then use SeTool2lite or XS++ to WRITE GDFS with the GDFS file your got. After that, it should connect successfully when you connect with XS++ so you can flash your MAIN and FS...
How long would it take to WRITE the GDFS file in SEtool?
iono yet i still cant make da service cable yet
|
strizlow800
Joined: Aug 23, 2006
Posts: > 500
From: Macedonia, Skopje
PM |
Writing GDFS with SeTool takes less than a minute...
P.S. THe service cable cannot be made without the K700 cable part, because that electronics are "the service cable"...
Btw If custom cable making is too complicated and you don't have needed parts, you can buy yourself a cruiser cable (+it will be useful to you for your further SE phones)
|
whatsucka
Joined: Feb 17, 2007
Posts: > 500
PM, WWW
|
I guess i have no choice except buying a cruiser cable. Hope ebay have it...lol
|
|
|
