List of CMOS and CCD Sensors Camera Sony Ericsson


Click to view updated thread with images




Posted by brazzuka's
Last update 2010-03-15

MODEL NAME - TYPE OF CAMERA - CAMERA_VENDOR - CAMERA_NAME_SENSOR








M Series


P Series


R Series


S Series


T Series


U Series


V Series


W Series


X Series


Z Series




Smartphones Series


If you see any mistake or missing anything just write here.
If you have something to correct, add or some ideas for cooperation, don’t hesitate to contact by here.
The list will be updated the measure of new releases

Thanks to all and Great Thanks to daviep,Gani,Maximys,Michell Bak,Raiderski by cooperation
[ This Message was edited by: brazzuka's on 2010-04-08 00:15 ]



Posted by chandu17
Good post

Posted by daviep
s700i/a

Posted by meckam
G900 unknown

Posted by Raiderski
G900 is Sony MCB, version number very close if not the same as in C902/W902
G700 is OmniVision
P1/P990 is Samsung, I guess

Posted by Luhccas-U1a
C905 second camera
Edit: Nice,nice!Thank you
[ This Message was edited by: luhccas-c905 on 2009-07-07 16:12 ]


Posted by brazzuka's

On 2009-07-07 10:42:31, luhccas-c905 wrote:
C905 second camera

This is a policy the company to launch or not a device but the model has been pre defined case want to use, case of the c905 was not implemented the second cam in the final version.
Thanks for help

Posted by brazzuka's
tnks guys for the contributions
tnks @daviep,@raider
list update

Posted by Lightspeed_x
@brazzuka's: Thanks for this useful post...

Posted by Jenova
Very useful

Posted by markphil



how come my K810i is using an Sony KNC camera hardware??

Posted by Raiderski
it's ok, KNC can be name of some part but do not refers to the whole camera module. every part have own name, like IMX018 for sensor, however everything (sensor, AF lens, DSP) is called MCB881

Posted by markphil
He he he
[ This Message was edited by: markphil on 2009-07-10 22:08 ]


Posted by KaMeL
10x bro

This message was posted from a N95_8GB

Posted by markphil
I believe my K810 is using an Sony KNC not MCB

Posted by Raiderski
in fact there's nothing what can explain name KNC. KNC is printed on camera module (optical part) but inside driver is MCB881. in K750/W800 KNC was on camera module and in driver but, again, try to find anything about KNC. when you get bored try this: MCB770...

2M-Pixel CMOS Camera Module with Autofocus Function for Mobile Equipment
http://www.sony.net/Products/SC-HP/cx_news/vol41/np_mcb770.html

now I know what name should I use - MCB, not KNC. second tricky thing is W700 with Samsung camera onboard described as KNC 201 37 - how to explain?

Posted by markphil
Did you already open your K800?? In your K800 camera hardware what was written?

Posted by alfrido
I have a k800 ,its a best mobile ,but i have a probleme in camera sttings ,plz sameone help me ,what should i do?

This message was posted from a SGH-E250

Posted by Raiderski
read my post again and you will know the answer

Posted by markphil

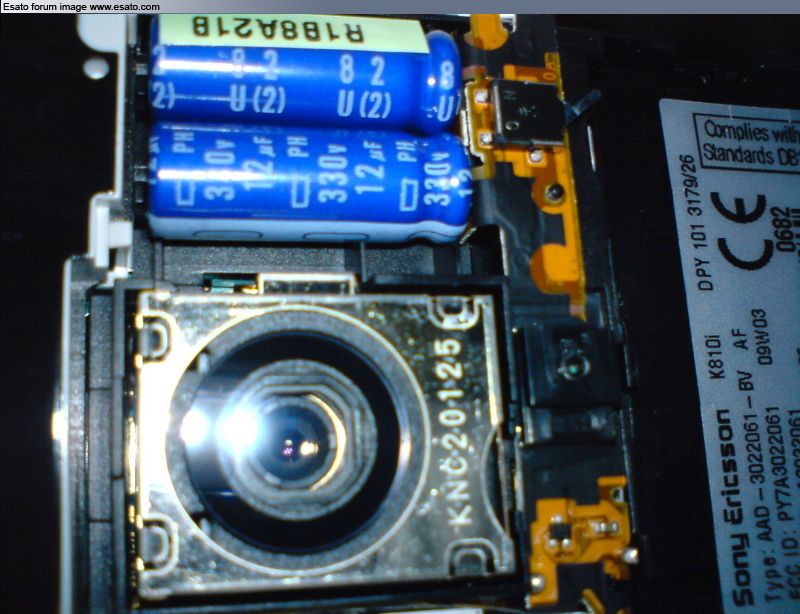

My K810 uses an KNC 20125 i pictured it to know what camera it uses. I believe for what i see and it engraved to the camera hardware that simple.

Posted by Raiderski
your choice. how then explain case of KNC in W700?

Posted by markphil
No matter what you say my K810i created in 09W03 is using an Sony KNC 20125

Posted by alfrido
Haw can i know ......IMEI in my sgh_E250 plz i wait the answer.

This message was posted from a SGH-E250

Posted by Dark Knight

On 2009-07-16 11:53:16, markphil wrote:
No matter what you say my K810i created in 09W03 is using an Sony KNC 20125


damn, you lucky man!!


how did you know type of your camera, agrhhh?

1-st page says:
K810i - 3.2 Mp - Sony - MCB881. Second Cam: Micron - MT9V112




p.s. are SE still manufacturing K810-K850?? I impressed, anyway..
[ This Message was edited by: Dark Knight on 2009-07-17 12:56 ]


Posted by reggiele
This list is impressive! thanks for sharing...

Posted by markphil
@dark knight , i take a snapshot picture to my K810i camera hardware you can see it at 1st page. Its engraved


Posted by brazzuka's
update list
models:
F305
K330
R300, R306
S302
T280, T303
S312
W205, W302, W395

Posted by c96sthl
KNC is old component number used by SE.

it have been replace with those funny 8 digit you saw all over the phone.

you can confirm this by looking into those link shared here about FCC.

you will be able to notice many of their camera have KNC xxxxxxxxxx then the plastic is SXA ???????? but recently you can notice it just plain 8 digit (good for people who like inspiration for lottery number hahahahaha)

Posted by code28h4p
are you sure that C901 uses Samsung Techwin??? How do you know that?

Posted by dancingfate
Why you guys seem like having objection with Samsung's module on C901? What's wrong?
K770 proved that Samsung's module is good, at least having no pinkish nor washed out issue as some of Sony's module (without modding the camdriver).

Posted by code28h4p
Just wanna know the truth in there...with some proven info. Not just a rumours or opinion. I'll be accepted that proven information.

Posted by brazzuka's
update list Smartphones Series
G700 - 3.15 Mp - unknown

G900 - 5 Mp - unknown

P1 - 3.15 Mp - unknown

P800 - 0.3 Mp VGA - unknown

P900 - 0.3 Mp VGA - unknown

P910 - 0.3 Mp VGA - unknown

P990 - 2 Mp - unknown

W960 - 3.15 Mp - unknown

XPERIA X1 - 3.15 Mp - unknown

XPERIA X2 - 8 Mp - unknown

XPERIA X3 - 8 Mp - unknown

Satio - 12 Mp - Sony - Sony IMX060PQ


Posted by Lightspeed_x
Any news on the Aino camera module?... could it be the same as the W995 with some software enhancement?

Posted by brazzuka's
Update list

F Series
F100-Jalou 3.15 Mp - Sony - ISX001-0AQH5

J Series
J105-Naite - 2Mp - Micron - MT9D113


W995, Jalou, Satio new generation sensors Sony
[ This Message was edited by: brazzuka's on 2009-11-08 22:10 ]


Posted by Luci'sPower
really nice info thanks mate

Posted by brazzuka's
Update list

U Series


Posted by mariozlp

On 2009-11-15 14:41:52, brazzuka's wrote:
Update list

U Series

    U10-Aino - 8Mp - Samsung Techwin - Sara


    U100-Yari - 5Mp - Samsung Techwin - 1212-0592. Second Cam: Foxconn - 1200-0117_FRIDA_R13 & OmniVision - OV6680




Satio is U too its U1 not a S series

Posted by ipan78
how about dpi.anyone to know???



Posted by groovepeppy
No wonder i have difficulties finding moded camdriver for Naite.
I hope number1 or Brazzuka can mod one for us Naite user

Posted by brazzuka's
@mariozlp
already knew but names and code names are constantly changing
Thanks mario

News
Sony Ericsson announces two new mobile phones Susan and Sunny in December. Official names of these phones are J10 and J20. Susan and Sunny features QVGA screen, 5.0 megapixel camera and aGPS.
Thanks Max

Posted by groovepeppy
@brazzuka
maybe you can help us Naite's user to have a modded camdriver?
i just want to have higher fps on the video recording, hence the cam quality is very so so but it's enough for me.
put a very big hope on you

Posted by Radu_91
btw i think that X2 and X10 use the same cam module as the Aino, at least the cam looks the same in the pics

Posted by brazzuka's

@groovepeppy
maybe you can help us Naite's user to have a modded camdriver?
i just want to have higher fps on the video recording, hence the cam quality is very so so but it's enough for me.
put a very big hope on you

we donīt know where we could help you and have many modders here isnīt so try to find out where they can help you. Donīt have much free time and we are a little busy with projects android app.
about higher fps on the video recording:
if you want, you can look at other drivers as w595 w760 w890... that work with the same sensor. ok is another series of sensor but the result is the same for this model naite for this case; increase FPS video recording.


@Radu_91
btw i think that X2 and X10 use the same cam module as the Aino, at least the cam looks the same in the pics

are similar but not the same.
[ This Message was edited by: brazzuka's on 2009-12-03 10:04 ]


Posted by Raiderski
hey Brazzuka, do you have any interesting camdrivers for these newest phones like Naite, Aino, Yari, Satio etc.?

Posted by groovepeppy
Wow, your answer really encourage me to do it by myself.
Thank's a lot Brazzuka

Posted by brazzuka's

@Raiderski
hey Brazzuka, do you have any interesting camdrivers for these newest phones like Naite, Aino, Yari, Satio etc.?

Yes original camera driver and no updates yet.

@groovepeppy
Wow, your answer really encourage me to do it by myself.
Thank's a lot Brazzuka

Nice goahead and try to find something extraordinary for these models.
Any questions or help can contact us here in esato.
Good luck

Posted by groovepeppy
hello again mate
first, i want to apologize if my question is going to your nerves
i just can't find the viewfinder section to change the fps
can you point to some direction?
clue maybe about what i have to copy from modded W595 camdriver or other type which had higher fps?
thank's a lot again in advance

Posted by brazzuka's
update list 2010-03-15
J Series:

J105-Naite - 2Mp - Micron - MT9D113.


J10i-Elm "Susan" - 5Mp - Sony - ISX006. Second Cam:No


J20-Hazel "Sunny" - 5Mp - Sony - ISX006. Second Cam:OMNIVISION

Posted by pigy
S700 have CCD not CMOS sensor

Posted by brazzuka's

@pigy
S700 have CCD not CMOS sensor

Yes as the first models sony ericsson japan most sensors were CCD, how this model sony ericsson PREMINI II S if I'm not mistaken.I believe in the persons of SE
Thanks pigy change title, now CMOS and CCD
